About the Change Approval Workflow
4 min
This section describes the default change approval workflow. See Using Workflows for information on modifying workflows.

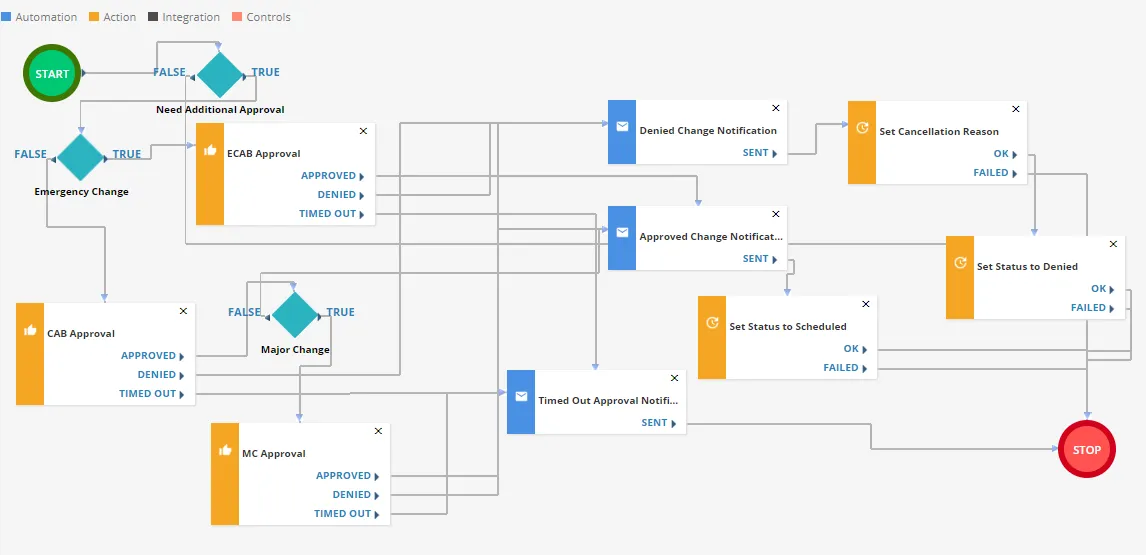

The Default Change Approval Workflow

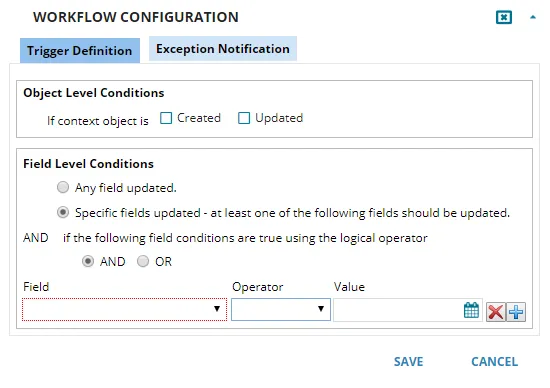

Trigger Definition Configuration
Under Field Level Conditions, do the following:
- Select Specific fields updated - at least one of the following fields should be updated.
- For the Field field, select Status.
- For the Operator field, select Equal to.
- For the Value field, select Pending Approval.
Change Workflow Trigger Definition
- Set the exception notification to an email template.
Workflow
- If Need additional approval
Change type not equal to standard
AND
Change type not equal to minor.
- If true: Go to If emergency change
- If false: Go to stop.
- If emergency change
Change type equal to emergency.
- If true: Go to Get Approval ECAB approval
- If false: Go to Get Approval CAB approval
- If major change
Change type equal to major.
- If true: Go to Get Approval MC approval
- If false: Go to Notification Approved change notification
- Get Approval ECAB approval

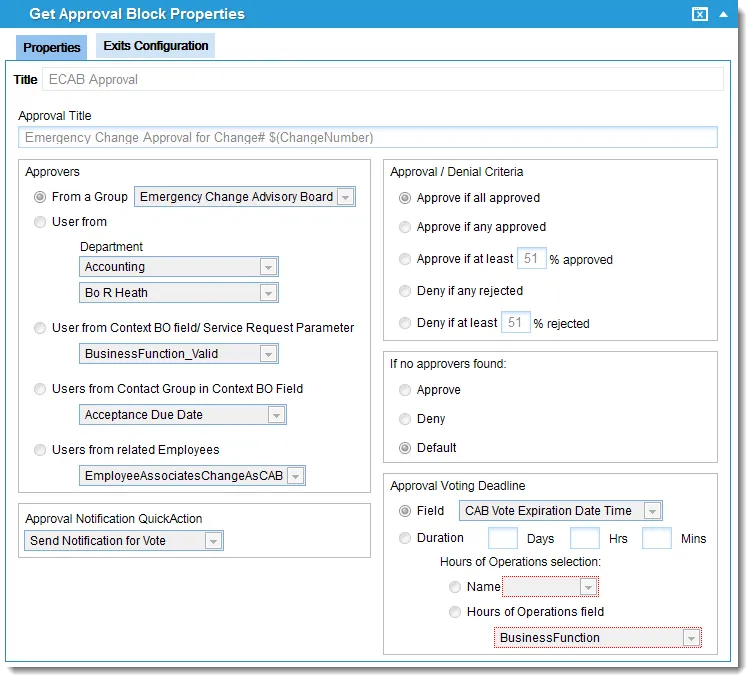

Get ECAB Approval
- If approved: Go to Notification Approved change notification
- If denied: Go to Notification Denied change notification
- If timed out: Go to Notification Timed out approval notification.
- Get Approval CAB approval

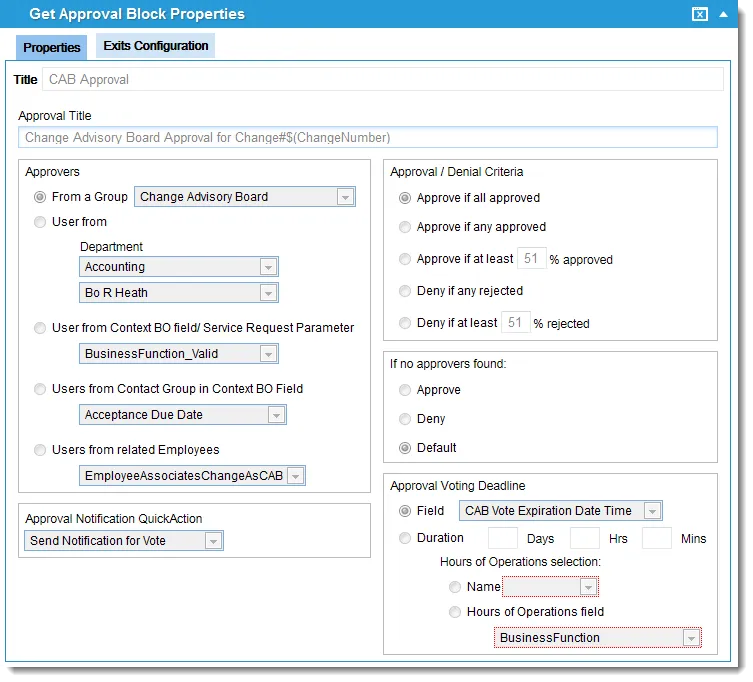

Get CAB Approval
- If approved: Go to If major change
- If denied: Go to Notification Denied change notification
- If timed out: Go to Notification Timed out approval notification.
- Get Approval MC approval
Get MC Approval
- If approved: Go to Notification Approved change notification
- If denied: Go to Notification Denied change notification
- If timed out: Go to Notification Timed out approval notification.
- Notification Denied change notification
Denied Change Notification
- Notification Approved change notification

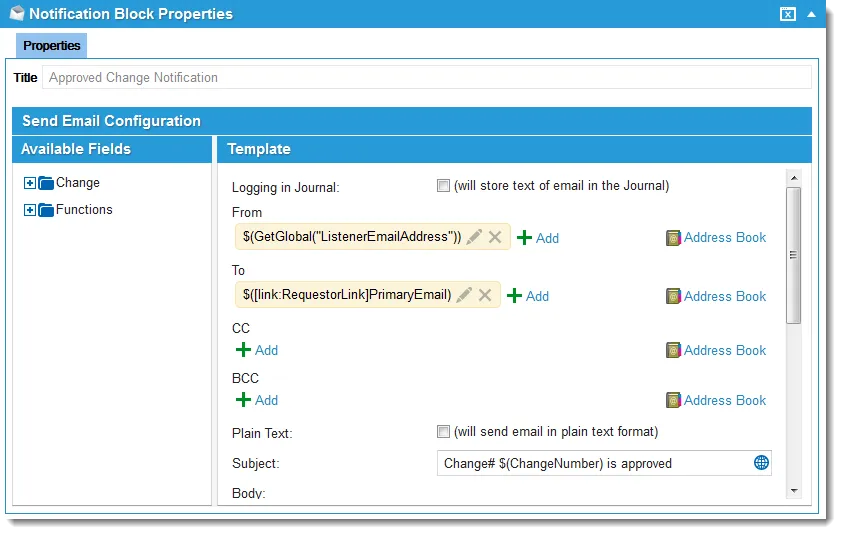

Approved Change Notification
- Notification Timed out approval notification.

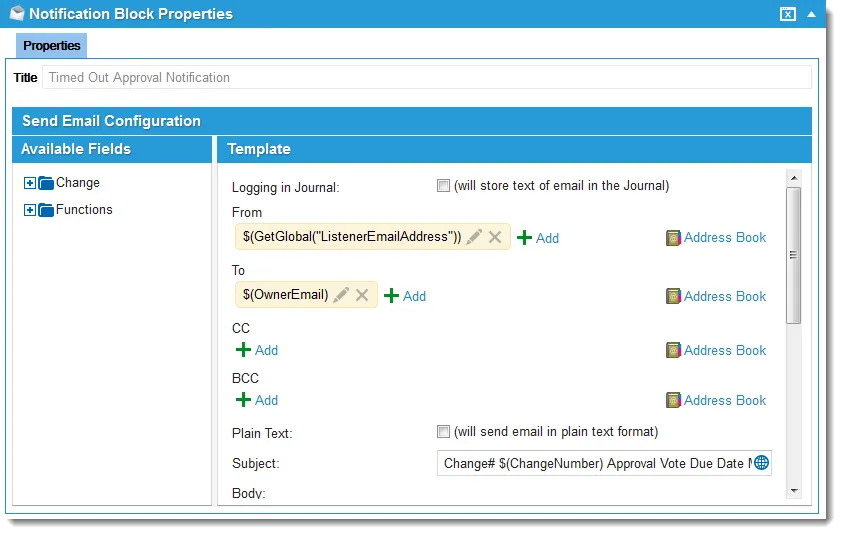

Timed Out Approval Notification
- Update Set status to scheduled.
Status: Scheduled
- Ok: Go to stop.
- Failed: Go to stop.
- Update Set cancellation reason.
Cancellation reason: Change approval denied by CAB member or approval board.
- Ok: Go to Update Set status to denied.
- Failed: Go to stop.
- Update Set status to denied.
Status: Denied
- Ok: Go to stop.
- Failed: Go to stop.
