UI Action Quick Action
Role: Administrator
Minimum Version: Ivanti Neurons for ITSM 2022
About the UI Action Quick Action
The UI Action executes an action within a form.
You can switch to a designated child tab and open a blank form for a user to fill out. There is no way to pass parameters with this action; instead, use the Insert Child Object action. See Create a Child Record Quick Action.
There are several actions used with incidents. To see these, open the Incident workspace, click More > Edit Actions, and select Graphical Action Designer from the popup.
Remember:
- All commands are case sensitive; mixed case does not work. Use the values defined below.
- You must enter null in the parameter if a command is not used. Leaving it empty is not the equivalent and produces different results.
- Not all parameters are mandatory for each action.
See Example: Using the UI Action Quick Action to Open Another Workspace (CAD) and Example: Using the UI Action Quick Action to Open a Workflow (CAD) for examples on how to use this action.
Parameters
To access the parameters, select the Action Block to display them in the Settings pane.
Action Block Settings
- Block Label: A unique name for the block. This is useful to identify each action when you have more than one of the same action block added or cloned in the design area.
- Scope: The access point of the action. For a list of what to enter here, see List of UI Actions.
- Command ID: The Command ID to run, such as NewChildObject. For a list of what to enter here, see List of UI Actions.
StripHTML is not supported in the UI Action action block.
- Confirmation: Optional. The confirmation message to show. When the application displays the confirmation message, you can continue the action or cancel. See About the Confirmation Message for more details.
- Command Data: The data against which the command is run. For a list of what to enter here, see List of UI Actions.
Click Open Script Editor to open the Script Editor in the Graphical Action Designer workspace and enter a custom Command Data script.
Click Save to commit your changes.
Start Block Settings
These settings are accessed by selecting the Start Block, refer to Start Block Settings.
This action does not respect the Auto-save checkbox option in the Start Block settings. It does save changes directly to the database, but please ensure that the behaviour you expect still occurs.
About the Confirmation Message
The following is a template for the confirmation message:
{
"Title": "<text>",
"Message": "<message>",
"Timeout" : <timeout>,
"TimeoutAction" : "<action>",
"Ok" :"<action>",
"Cancel" :"<action>"
}
Parameter | Type | Required | Description |
|---|---|---|---|
Title | String | Required | Dialog box title string. |
Message | String | Required | Message displayed in the dialog box. |
Timeout | Int | Optional | Dialog countdown in seconds. Countdown does not occur if not provided. |
TimeoutAction | String | Optional | Action to be executed when the timeout has expired. "continue": Equivalent to user clicking OK. Use all lower case. "cancel": Cancels the operation; equivalent to user clicking Cancel. Use all lower case. |
Ok | String | Optional | Action for the OK button. Can be "continue" or "cancel". The OK button is not shown if the parameter is empty. The default value is assumed if no value is given. |
Cancel | String | Optional | Action for the Cancel button. Can be "continue" or "cancel". The Cancel button is not shown if the parameter is empty. The default value is assumed if no value is given. |
For example:
{"Title":"Request to Logout", "Message": "Do you want to log out now?", "Timeout": 30, "TimeoutAction": "continue", "OK": "continue", "Cancel":"cancel"}
About Using the UI Action Quick Action as a Composite Quick Action
We strongly discourage you from using the UI Action action block in a Composite Quick Action. Neurons for ITSM does not support this configuration, and it produces inconsistent results.
When using the UI Action action within the Composite Quick Action, note the following:
- The UI Action action block relies on the UI commands in the browser, not the server side.
- Non-UI actions rely on server side actions.
- The UI Action action is built as asynchronous. Send the request and return immediately (without waiting) to the composite framework to continue other actions.
- Use the UI Action action within a Composite Quick Action at your own risk. This procedure is not recommended, and it could cause unexpected results.
Limitations of Using the UI Action Quick Action in a Composite Quick Action
- Canceling the UI Action action block does not cancel the remaining actions defined in the Composite Quick Action.
- Add the UI Action action block as the last action (highly recommended).
- Use only one UI Action action block in a Composite Quick Action. Multiple actions can produce unintended results.
List of UI Actions
All values are case sensitive. Be sure to use the values exactly as documented.
Logging Out of the Application
This action brings up a confirmation box asking the user if they want to log out. If the user does not respond, they are automatically logged out.
Log Out Dialog Box
Field | Value to Enter |
|---|---|
Scope | Application |
Command ID | Logout |
Confirmation | { "Title":"Logout in", "Message":"Do you want to log out?", "Timeout":10, "TimeoutAction":"continue" "Ok":"continue", "Cancel":"cancel" } |
Command Data | null |
Refreshing the Application
This action refreshes the window and updates the application data. Equivalent to F5 or Refresh in the browser.
Field | Value to Enter |
|---|---|
Scope | Application |
Command ID | Reload |
Confirmation | Optional. If empty, the application used the default brackets and generates the default confirmation box. |
Command Data | null |
Refreshing the Current Tab
This action refreshes the current record displayed in the active tab after a specified delay. Use this when you want users to see updates made by quick actions or workflows without manually clicking the Refresh
button in the workspace toolbar.
Field | Value to Enter |
|---|---|
Scope | CurrentTab |
Command ID | Refresh |
Confirmation | Optional |
Command Data | { "delayMs":3000, "message":"Refreshing to show changes." }
|

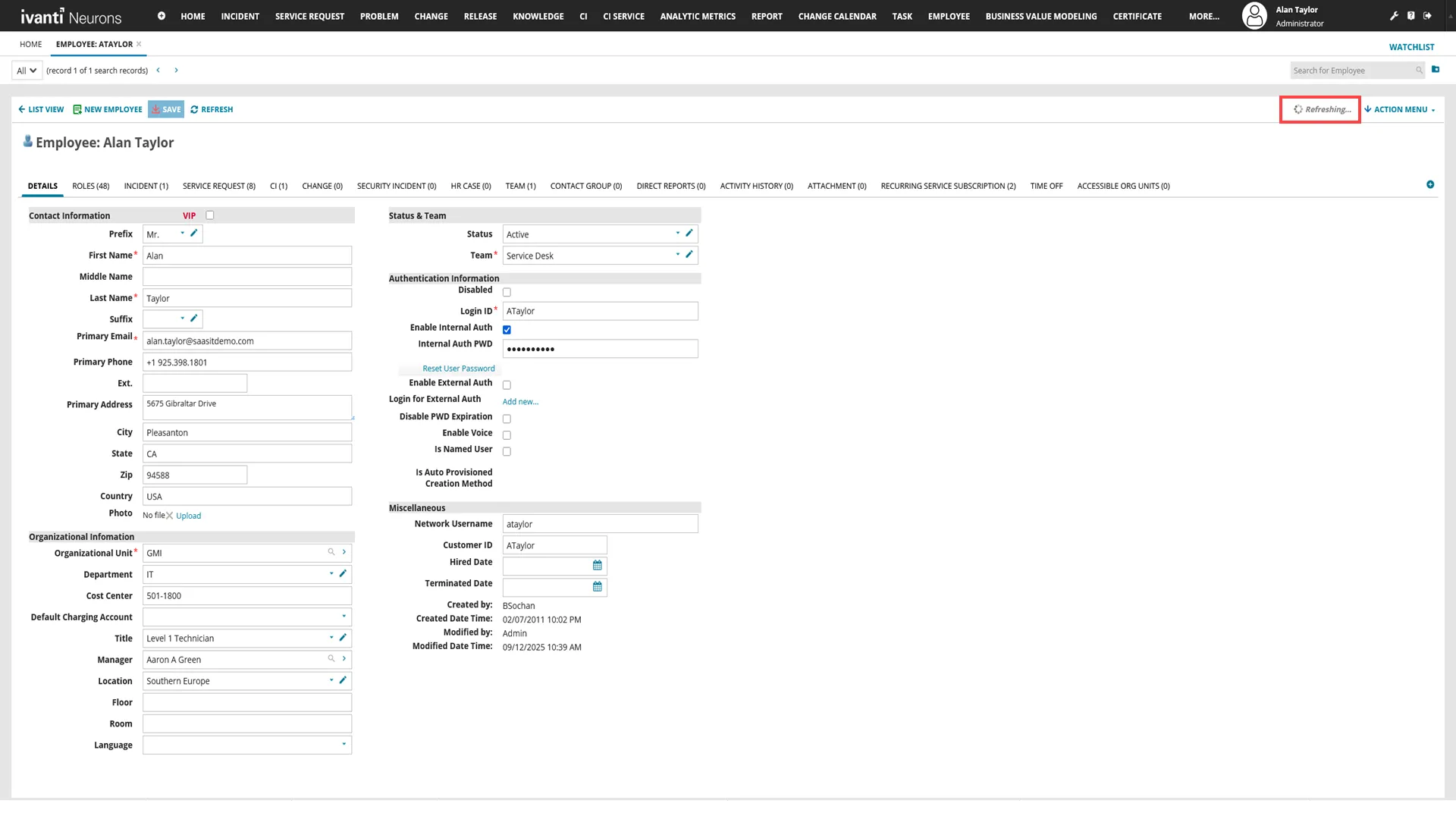

When the refresh occurs, the system displays an update processing icon in the upper-right corner to indicate that updates are being applied.
Opening a URL in a Pop-Up Browser
This action automatically opens a new window to the specified URL. Invalid URLs result in a 404 error (Page Not Found).
Field | Value to Enter |
|---|---|
Scope | Application |
Command ID | OpenWindow |
Confirmation | Optional. If empty, the application used the default brackets and generates the default confirmation box. |
Command Data | { Url:"http://www.ivanti.com" , Target:"_blank" , Options:"width=400,height=500" , Replace:"false" } |
Opening a Link Stored in a Business Object
This action opens a pop-up window to the URL specified in the Subject field of a business object.
Field | Value to Enter |
|---|---|
Scope | Application |
Command ID | OpenWindow |
Confirmation | Optional. If empty, the application used the default brackets and generates the default confirmation box. |
Command Data | { Url:"$(Subject)", Target:"_blank", Options:"width=400,height=500" } |
Opening a New Layout Tab by Business Object Type
This action opens a new tab.
Field | Value to Enter |
|---|---|
Scope | WorkspaceSelector |
Command ID | OpenObjectTab |
Confirmation | Optional. If empty, the application used the default brackets and generates the default confirmation box. |
Command Data | Use one of the following: {"ObjectType":"Change#",} ----or---- { ObjectType: "Incident#", ForceReload: false, NewNaviState:true } |
Opening a Web Page in a Sub-Tab of the Application
This action opens the web page defined in the URL parameter of the Command Data field. The web page opes in a new tab within the application. The value of the URL parameter can be external, such as http://www.ivanti.com or can reference an internal Neurons for ITSM web page. See Logging in or Accessing Records Using URLs for information about internal URLs.
Field | Value to Enter |
|---|---|
Scope | WorkspaceSelector |
Command ID | OpenLinkTab |
Confirmation | Optional. If empty, the application used the default brackets and generates the default confirmation box. |
Command Data | { "Name":"ivanti.com", "Id": "ivanticom", "Closable": "true", "Url": "http://www.ivanti.com" } ----or---- { "Name":"AppStore Partner", "Id": "heatsoftwarecom", "Closable": "true", "Url": "/?frameless=true&Scope=SelfService&CommandId=NewServiceRequestByOfferingId&Tab =ServiceCatalog&Template=7EFF29BC6FB446D395509DF1A0A99EEE" } |
Searching for Results by Condition from the Current Context
This action passes the priority from the current business object.
Field | Value to Enter |
|---|---|
Scope | ObjectWorkspace |
Command ID | Search |
Confirmation | Optional. If empty, the application used the default brackets and generates the default confirmation box. |
Command Data | { "ObjectType":"Incident#", "SearchCriteria":[ {"ObjectId":"Incident#","FieldName":"Priority", "Condition":"=", "FieldValue":"$(Priority)"} ], "FillSearchPanel":"false" } |
Opening the Object Referenced in a Different Field
This action opens the incident that is referenced in the Subject field of the current business object.
Field | Value to Enter |
|---|---|
Scope | (uses previous value) |
Command ID | (uses previous value) |
Confirmation | Optional. If empty, the application used the default brackets and generates the default confirmation box. |
Command Data | { "ObjectType":"Incident#", "SearchCriteria":[ {"ObjectId":"Incident#","FieldName":"IncidentNumber", "Condition":"=", "FieldValue":"$(Subject)"} ], "FillSearchPanel":"false" } |
Prompting for the Incident Number, Then Open It
This action asks the user for an incident number, then opens the incident.
Field | Value to Enter |
|---|---|
Scope | (uses previous value) |
Command ID | (uses previous value) |
Confirmation | Optional. If empty, the application used the default brackets and generates the default confirmation box. |
Command Data | { "ObjectType":"Incident#", "SearchCriteria":[ {"ObjectId":"Incident#","FieldName":"IncidentNumber", "Condition":"=", "FieldValue":"$(Prompt("Please enter Incident Number",""))"} ], "FillSearchPanel":"false" } |
Creating a New Task Business Object in a Workspace
This action creates a new task in a layout and links the current business object. The value from the current business object can be passed in this way including linking the parent incident to the task. This is equivalent to the Insert Child Object action. This option allows the application to move the data from the current context to the child record. You must supply the relationship details as part of creating the new business object if they need to be linked.
Field | Value to Enter |
|---|---|
Scope | ObjectWorkspace |
Command ID | NewObject |
Confirmation | Optional. If empty, the application used the default brackets and generates the default confirmation box. |
Command Data | { "ObjectType": "Task#Assignment", "Fields": [ {"Name": "ParentLink_Category", "Value": "Incident"}, {"Name": "ParentLink_RecID", "Value": "$(RecId)"}, {"Name": "OwnerTeam", "Value": "$(OwnerTeam)"}, {"Name": "Owner", "Value": "$(Owner)"}, {"Name": "Subject", "Value": "$(Subject)"}, ] } |
Creating a New Incident in a Tab
This action opens a new layout with a new object as referenced in the command data ObjectType.
Field | Value to Enter |
|---|---|
Scope | ObjectWorkspace |
Command ID | NewObject |
Confirmation | Optional. If empty, the application used the default brackets and generates the default confirmation box. |
Command Data | { "ObjectType": "Incident#", } |
Closing the Current Tab
This action closes the current tab.
Field | Value to Enter |
|---|---|
Scope | CurrentTab |
Command ID | CloseTab |
Confirmation | Optional. If empty, the application used the default brackets and generates the default confirmation box. |
Command Data | null |
Creating a New Child Business Object
This action creates a new child record with the default assigned to the new business object. Typically, a relationship push constraint is used to move the data from the main business object to the child business object.
Field | Value to Enter |
|---|---|
Scope | CurrentTab:ObjectWorkspace:ObjectView |
Command ID | NewChildObject |
Confirmation | Optional. If empty, the application used the default brackets and generates the default confirmation box. |
Command Data | { ObjectType:"Incident#" , ChildObjectType:"Change#" , NewObjectType:"Change#" } |
Reference:
Classic Action Designer: UI Action Quick Action
