Styling the Neurons for ITSM Console
You can configure and customize the Neurons for ITSM console using the Application tab in the Style Editor. The settings that you configure on the Application tab affect all roles in Neurons for ITSM except Self Service Mobile. See Configuring the Self Service Mobile User Interface.
Configuring the Styles for a Role
The interface for a specific user role can be configured. Changes made to the default role affect all roles, except for any roles that were configured individually. For more information on roles, see Working with Roles.
To configure the style for a role:
- In the Configuration console, click Build > User Interface Styles > Style Editor. The application displays the Style Editor.
- From the Role drop-down menu, choose a role.
The Remove Customization icon
disappears from the page on selecting a role. However, after saving the customizations, the icon reappears.
- Configure the color specifications for the selected role.
- Click Save. The drop-down menu lists this role as customized.
The Save button is only enabled when a value is entered for any of the parameters.
To restore a role to its default style, do the following:
- In the Configuration console, click Build > User Interface Styles > Style Editor. The application displays the Style Editor.
The Application tab is selected by default.

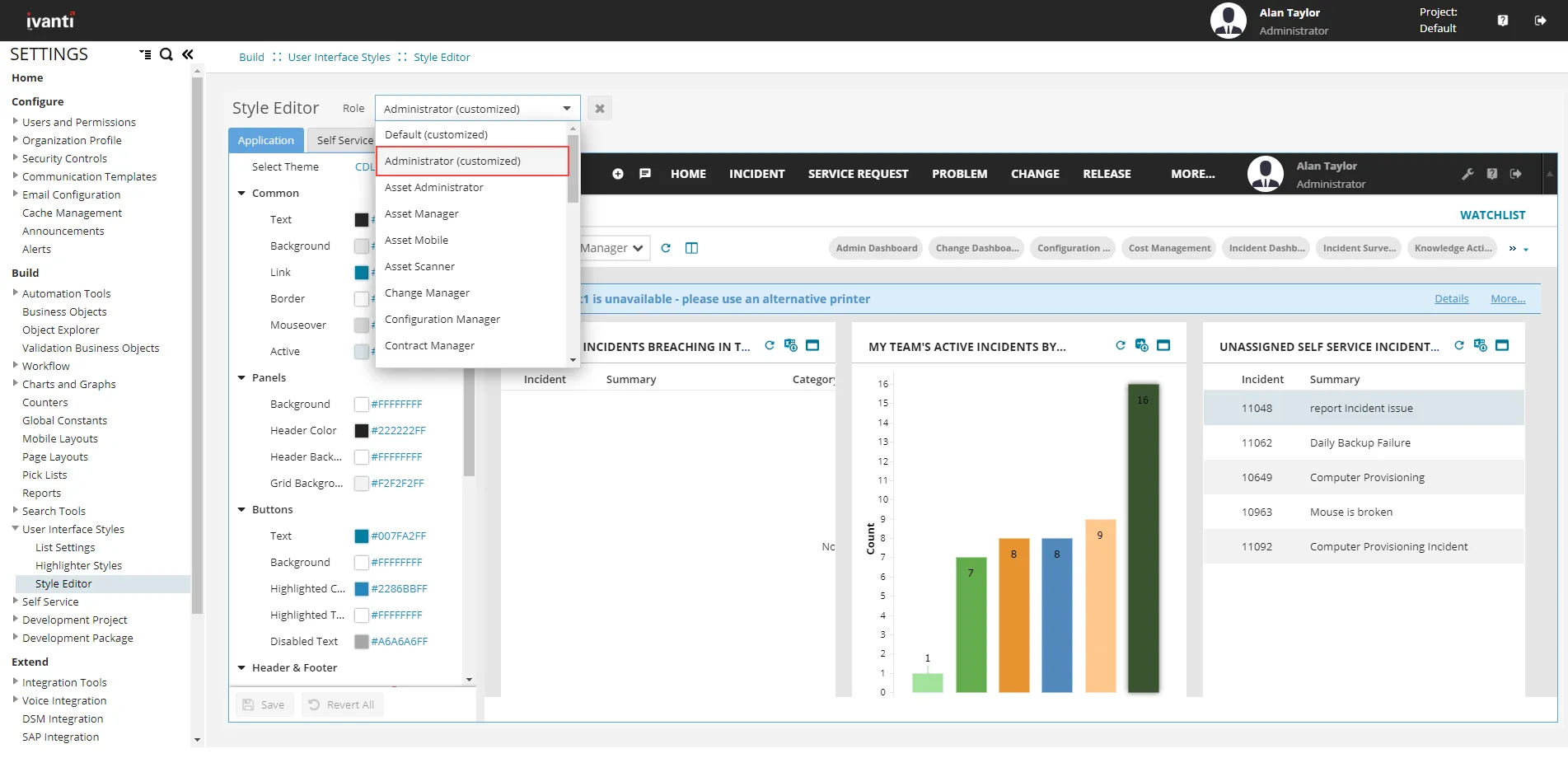

- From the Role drop-down menu, select a customized role.
A customized role is identifiable from the rest of the roles in the list. For example, Administrator (customized).
- Click the Remove Customization icon next to the Role drop-down list. The colors for this role are restored back to its default settings. So in our example, the role is now listed as Administrator. See also Working with Roles.
Configuring the Theme
- In the Configuration console, click Build > User Interface Styles > Style Editor. The application displays the Style Editor.
The Application tab is selected by default.
- In the Select Theme field, CDL2 is selected by default. Each theme has its own set of color specifications. Existing customers who have already defined their branding colors need to manually set color specifications for the themes. Given below are the specifications for each theme:
Section | Parameter | Description | Color Specifications | | |
|---|---|---|---|---|---|
| | | CDL2 | CDL | Light |
Common | Text | Text color of all items in the home page, including dashboard panels. | #262626FF | #222222FF | #222222FF |
| Background | Background color of the home page. | #E5E5E5FF | #F5F5F5FF | #F5F5F5FF |
| Link | Text color of any links on the home page. | #007FA2FF | #2286BBFF | #2286BBFF |
| Border | The color of all borders on the home page, including borders around dashboard panels and borders under headings. | #FFFFFFFF | #FFFFFFFF | #D9D9D9FF |
| Mouseover | Background color of text when you hover your mouse over it. | #D8D8D8FF | #F4F4F4FF | #F4F4F4FF |
| Active | Background color of text when it is the active line in a list. | #D9E4EAFF | #DEEDFCFF | #DEEDFCFF |
Panels | Background | Background color of all panels and dialog windows. | #FFFFFFFF | #FFFFFFFF | #FFFFFFFF |
| Header Color | Text color of the text in all panel headers. | #222222FF | #222222FF | #FFFFFFFF |
| Header Background | Background color of all panel headers. | #FFFFFFFF | #FFFFFFFF | #289AD7FF |
| Grid Background | Color of all grids in forms. | #F2F2F2FF | #F2F2F2FF | #F2F2F2FF |
Buttons | Text | Text color of buttons. | #2286BBFF | #2286BBFF | #333333FF |
| Background | Background color of buttons. | #FFFFFFFF | #FFFFFFFF | #EBEBEBFF |
| Highlighted Color | Background color of buttons that are highlighted. | #2286BBFF | #2286BBFF | #289AD7FF |
| Highlighted Text | Text color of buttons when they are highlighted. | #FFFFFFFF | #FFFFFFFF | #FFFFFFFF |
| Disabled Text | Color of all texts on buttons when they are disabled. | #A6A6A6FF | #A6A6A6FF | #A6A6A6FF |
Header & Footer | Logo | Displays the default logo and enables you to substitute your own logo. | - | - | - |
| Text | Text color of the header bar area. | #FFFFFFFF | #2286BBFF | #222222FF |
| Background | For a gradient texture, use different colors for the Background and Background Center fields. For a solid texture, use the same color for both. | #262626FF | #FFFFFFFF | #FFFFFFFF |
| Background Center | | #262626FF | #FFFFFFFF | #ECECF0FF |
| Link | Color of links in the header bar. | #FFFFFFFF | #2286BBFF | #2286BBFF |
| Link Mouseover | Background color of text when you hover your mouse over it. | #FFFFFFFF | #2286BBFF | #FF0000FF |
| Role Text Color | Color of the name of the role text. | #FFFFFFFF | #FFFFFFFF | #FFFFFFFF |
Workspace Tabs | Text | Color of text in the workspace area, including inactive tab labels. | #262626FF | #333333FF | #FFFFFFFF |
| Background | Background color of the workspace bar. | #FFFFFFFF | #FFFFFFFF | #555555FF |
| Active | Color of the top of the active tab. The active tab itself takes the Common Background color. | #2286BBFF | #2286BBFF | #FF0000FF |
| Sub Tab Active | Color of the sub tabs. | #000000FF | #000000FF | #000000FF |
| Tab Border | Border color of all tabs. | #BFBFBFFF | #BFBFBFFF | #BFBFBFFF |
For information on making color changes, see Working with Colors in the Style Editor.
- The application does not support backward compatibility with Themes. For example, if a theme is changed from CDL2 to Light, all parameters need to be entered manually according to their respective color specifications mentioned in the above table.
- Theme in the Application tab is not role specific, it cannot be different for each role. The Theme set for the Default (Customized) role is applied for all roles.
Whenever a theme is selected from the Select Theme drop-down list, the following message is displayed.
Click OK.
- Click Save to save the configuration changes.
Adding a New Logo to the Header or Footer
In Neurons for ITSM, logos are scaled to fit a 50-pixel vertical space in the header. Because scaling reduces image quality, the preferred logo dimensions are 50 pixels high and up to 200 pixels wide. The maximum logo dimensions are 650 pixels high by 650 pixels wide.
You cannot upload a new logo if you are using Microsoft Internet Explorer Release 9 or earlier.
To add a new logo to the header or footer in Neurons for ITSM, do the following:
- In the Configuration console, click Build > User Interface Styles > Style Editor. The application displays the Style Editor.
The Application tab is selected by default.
- Under Header & Footer > Logo, click the image.
The image is enlarged.
Users can upload only JPEG or PNG image formats. No other formats are accepted by the application.
- Click the select file icon
to upload the image.
The image size must be less than or equal to 256 KB.
- Navigate to the file and double-click the file name. In the right pane, the new logo replaces the existing logo on the top-left side of the header.
- In the Select Theme field, the application marks the unsaved value with a red triangle
at the left and the revert icon
at the right.
- Click Save.
Customizing a Tenant
You can customize the user interface of tenants and vanity URL tenants. For information on configuring vanity URLs and Managed Service Providers, see Vanity URL.
To customize a specific tenant, do the following:
- From the Configuration console , click Build > User Interface Styles > Style Editor.
- From the Adjust Style for and Role options, choose the tenant and role to customize the application.
Choosing an MSP Tenant to Customize
- Make appropriate changes from the tabs - Application, Self Service and Login Page.
- Click Save.
- Log in to the Neurons for ITSM tenant with to view the application's new user interface as designed.
Restoring a tenant and role to the default configuration
To restore the customization made to a tenant and role, do the following:
- From the Configuration console , click Build > User Interface Styles > Style Editor.
- From the Adjust Style for and Role options, choose the tenant and role to restore to default configuration.
- Click the Remove customization icon at the top of the page.
Restoring the Default Logo
To restore the default logo in the header or footer in Neurons for ITSM:
- From the Configuration console, click Build > User Interface Styles > Style Editor.
- Under Header & Footer, click the current logo.
- Click the delete uploaded file icon
. The application deletes the current logo and displays the default Neurons for ITSM logo in its place.
- In the Logo field, the application marks the unsaved value with a red triangle at the left and the revert icon at the right.
- Click Save.
