System Configuration

77 min

Introduction

When you install and initially set up the device, you use the serial port console to set basic network and host settings. To get started, you must use the serial console to configure these settings for the internal interface. You have the option to use the serial console to configure network and host settings for the external interface and the management interface.

Once the internal interface has been configured, you can use the admin console Network Settings pages to modify settings for the internal interface, to enable and configure the external interface and the management interface, and to configure or manage advanced networking features, including:

Hostname

IPv6 addresses

VLAN ports

Virtual ports

Route table entries

Host mapping table entries

ARP cache entries

Neighbor discovery cache entries

System date and time (manual configuration) or NTP

NTP Configuration

You can use the admin console to set the system date and time manually or by configuring a network time protocol (NTP) server. The system supports NTPv4, which is backwards compatible with NTPv3 and NTPv2.

We recommend you use NTP to synchronize the date and time clocks on all network systems. Using NTP obviates issues that might occur with cluster synchronization, network communication that uses time-sensitive protocols, such as SAML, and implementation of time - based policies, such as local authentication server account expiration. In addition, using NTP as a standard in your network rationalizes timestamps in logs, which facilitates reporting and troubleshooting.

To configure NTP:

Log into the NSA as a Tenant Admin.

From the Ivanti Connect Secure menu, click the Gateways > Gateways List and then select any standalone ICS Gateway or Cluster node.

Navigate to System > NTP that displays the System Status page with System Date and Time.

Select your Time Zone. Selecting the appropriate time zone enables the system to automatically adjust the time for Daylight Saving Time changes

Select Time Source.

If Use Pool of NTP Servers is selected, configuring one NTP server is mandatory, but keys are optional. Click Save Changes.

It is not recommended to use only two NTP servers. If more than one NTP server is required, four NTP servers is recommended minimum. Four servers protect against one incorrect time-source.

If you are using NTPv4, specify the symmetric key. The key must be pre-synchronized with the NTP server. For example, if you want to configure NIST's clock as the NTP server, you must request a key beforehand and have NIST send that key to you.

If Set Time Manually is selected, specify the Date and Time with Time Slot.

Click Get from Browser to automatically populate the Date and Time fields. Click Save Changes.

Licensing Mode

You can use either Gateway licenses or NSA Named User licenses. You can switch between these two licensing modes any time. Gateway Licensing mode is same as the existing 22.x Gateway licensing.

To choose the licensing mode:

Log into the NSA as a Tenant Admin.

From the Ivanti Connect Secure menu, click the Gateways > Gateways List and then select any standalone ICS Gateway and Cluster node.

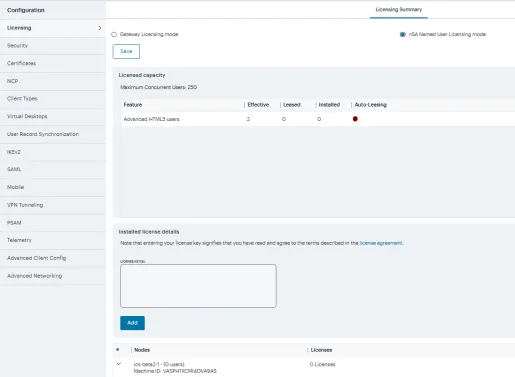

Navigate to System > Configuration > Licensing > Licensing Summary. The License Summary page shows the two options, Gateway Licensing Mode and NSA Named User Licensing Mode. By default, Gateway Licensing Mode is selected.

Choose the required mode and click Save. You can view the Licensed capacity.

Under Installed license details enter License key(s) in the field and click Add. You can view the nodes and corresponding license.

Security Configuration

Granular cipher selection provides an administrator the ability to select specific ciphers and the preferred ordering of the selected ciphers. This feature also provides presets like Suite and PFS. There are two tabs, Inbound OpenSSL options and Outbound OpenSSL options. With this feature admins can select the ciphers that TLS/SSL connections will use. The Inbound OpenSSL options apply to all incoming connections. Outbound OpenSSL options apply to the following services:

Rewriter

ActiveSync

SCEP

Syslog

LDAPS

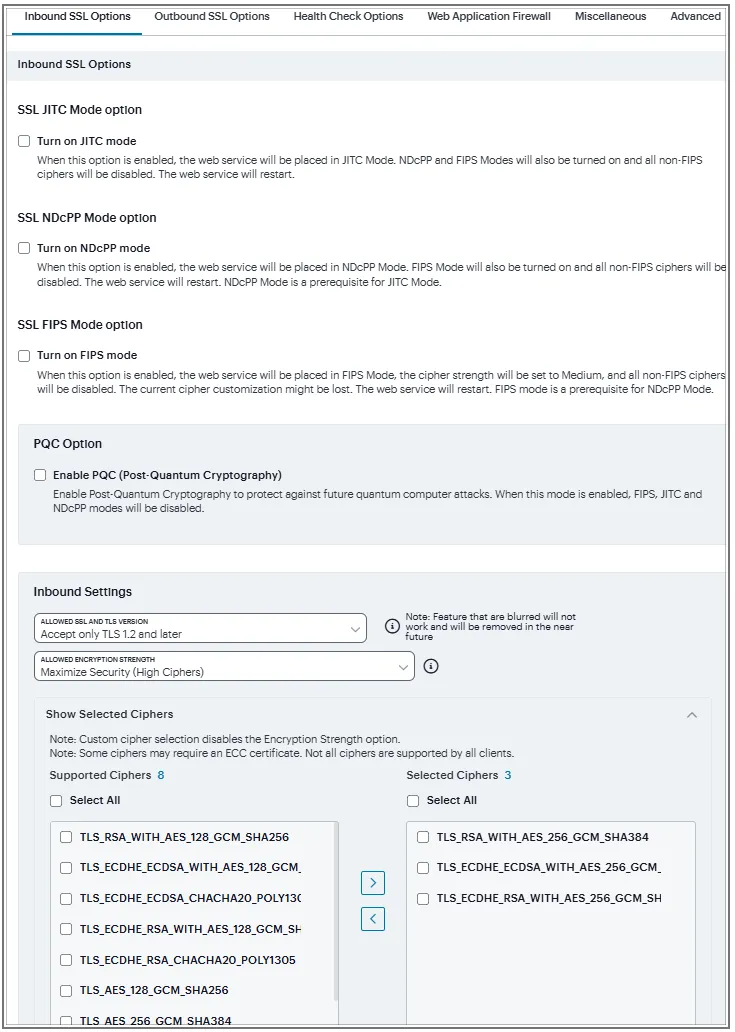

Inbound SSL Options

For ICS 25.x Gateways, the old SSL versions SSLv3, TLS1.0 and TLS1.1 options are deprecated and will be removed in the near future.

To enable the Inbound SSL options Mode:

Navigate to System > Configuration > Security > Inbound SSL Options.

Enable JITC mode by selecting the Turn on JITC mode check box. Once Turn on JITC mode is enabled, Turn on NDcPP mode and Turn on FIPS mode are also automatically enabled. Or, disable JITC mode and enable Post-Quantum Cryptography (PQC) to protect against future quantum computer attacks.

The initial focus is on TLS 1.3, leveraging hybrid modes to ensure interoperability and backward compatibility with classical cryptographic systems.

In Inbound settings, select Allowed SSL and TLS Version and Allowed Encryption Strength.

NDcPP mode can be enabled in the Inbound tab with a check box. This status is also applied over to the Outbound tab. Turning on NDcPP automatically turns on FIPS mode and disables SSL/TLS Version TLS1.0 and below. Also, NDcPP Mode allows to choose only 16 Ciphers under Custom Encryption Strength.

The two panels of Supported Ciphers and Selected Ciphers are displayed. Supported ciphers has the entire list of ciphers supported for the selected SSL or TLS version. Selected ciphers list the currently selected ciphers list.

The two panels of PQC Key Exchange Groups are displayed. Select at least one hybrid key exchange group.

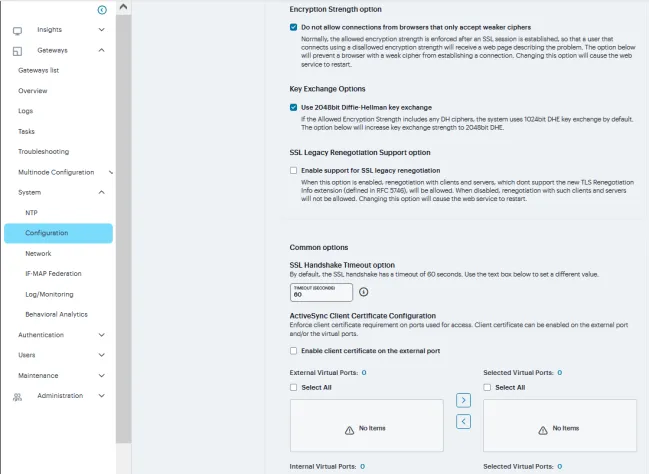

Select Encryption Strength option to strengthen the SSL session that is established.

Select Key Exchange Options to increase the key exchange strength to 2048bit DHE.

Select Enable support for SSL legacy renegotiation to allow new TLS Renegotiation Info extension.

Select Enable port redirection for TLSv1.3 certificate authentication to change the client-certificate authentication over TLSv1.3 connections with Port: 8443.

Set SSL Handshake Timeout option

Select Enable client certificate to enable Client certificate on the external port and/or the virtual ports.

The two panels of External Virtual Ports and Selected Virtual Ports are displayed. External Virtual Ports has the entire list of ports available for the selected certificate. Selected Virtual Ports list the currently selected ports list.

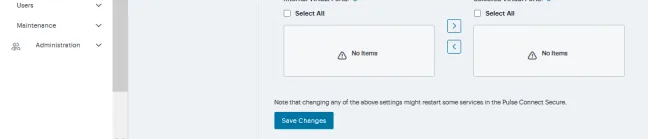

The two panels of Internal Virtual Ports and Selected Virtual Ports are displayed. Internal Virtual Ports has the entire list of ports available for the selected certificate. Selected Virtual Ports list the currently selected ports list. You can move the virtual ports from the external/internal to selected list and vice versa.

Click Save Changes.

Outbound SSL Options

For ICS 25.x Gateways, the old SSL versions SSLv3, TLS1.0 and TLS1.1 options are deprecated and will be removed in the near future.

To enable the Outbound SSL options Mode:

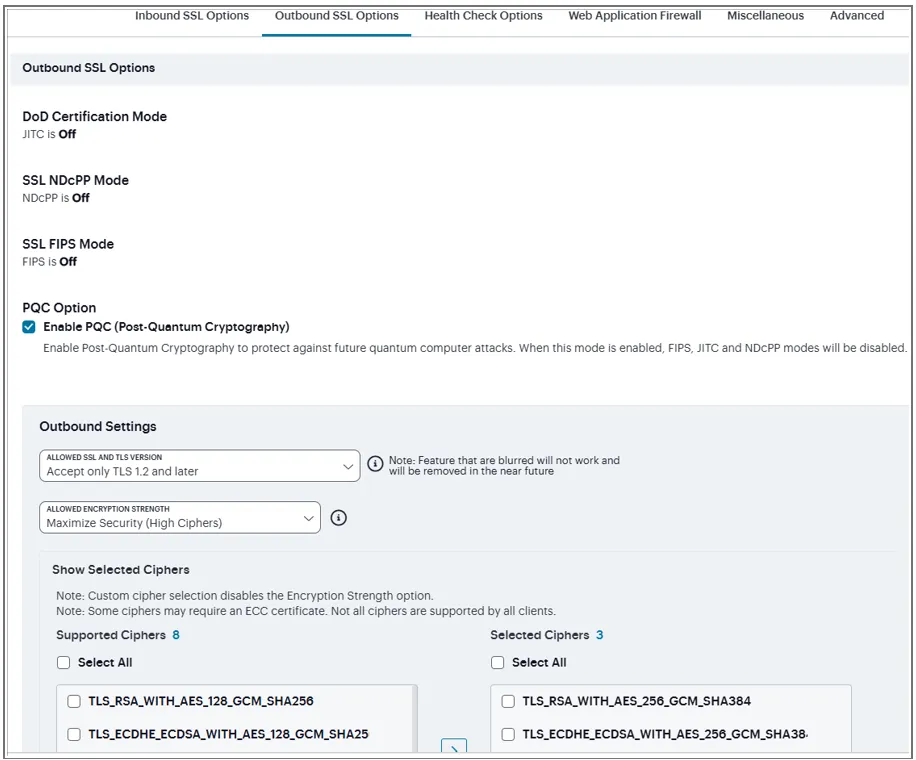

Navigate to System > Configuration > Security > Outbound SSL Options.

Only for Outbound SSL Settings, we can configure Non FIPS Ciphers when FIPS is Enabled using Custom Cipher Selection Option. Now, there are options to change different SSL/TLS versions and different encryptions in the Outbound SSL Settings.

DoD Certification Mode, SSL NDcPP Mode, and SSL FIPS Mode are OFF. all these can be enabled from Inbound SSL options tab.

Select PQC Option Enable Post-Quantum Cryptography to protect against future quantum computer attacks.

In Outbound settings, select Allowed SSL and TLS Version and Allowed Encryption Strength

The two panels of Supported Ciphers and Selected Ciphers are displayed. Supported ciphers has the entire list of ciphers supported for the selected SSL or TLS version. Selected ciphers list the currently selected ciphers list. The following figure shows the two panels (Supported Ciphers and Selected Ciphers). Note that the Selected Ciphers and Supported Ciphers List will also be displayed for all Preset like PFS or Suite B or Medium or High.

Click Save Changes.

Health Check Options

To configure health check options:

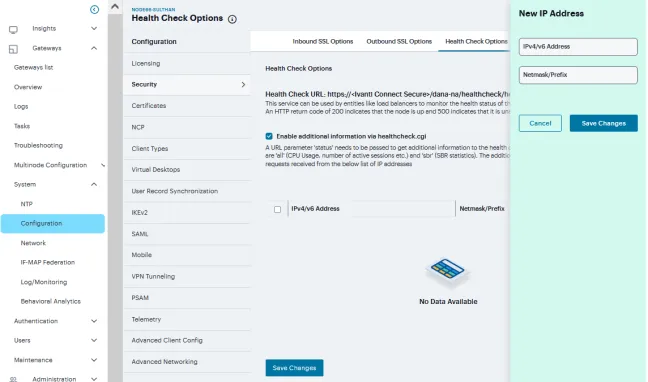

Navigate to System > Configuration > Security > Health Check Options to display the configuration page.

Enable additional information via healthcheck.cgi-This option is used by entities like load balancers to monitor the health status of the node.

Select the Enable additional information via healthcheck.cgi check box.

Click ‘+’ to add the relevant IPv4/v6 addresses for which additional information is required to be made available.

Click Save Changes.

Configuring Web Application Firewall

Web Application Firewall (WAF) protects web applications by filtering and monitoring HTTP traffic, preventing attacks such as SQL injection, cross-site scripting (XSS), and other web exploits.

WAF filtering and monitoring is supported beginning from release 22.8R2 onwards.

To configure WAF on an ICS Gateway:

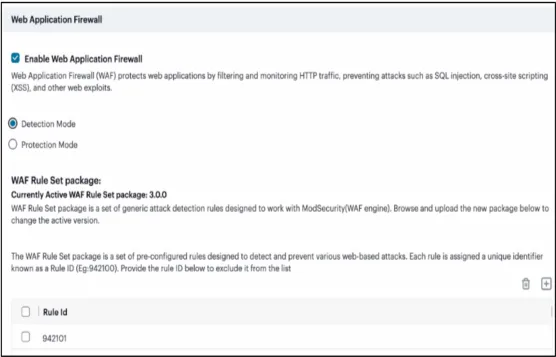

Navigate to System > Configuration > Security > Web Application Firewall to display the WAF configuration page.

Select the Enable Web Application Firewall check box to start the WAF configuration.

Select the required mode:

If Detection Mode selected, then it monitors and logs potential threats without blocking them.

If Protection Mode selected, then it actively blocks and mitigates detected threats.

WAF rules package is made available on software download page. For selecting a WAF Rule package, see Selecting Core Rules Set. The WAF Rule Set package section shows the currently active WAF Rule Set package version.

To exclude a rule ID, click "+", enter the Rule ID in the Exclude Rule IDs dialog, and then click Save Changes. You can add a maximum of 50 rule IDs.

Selecting Core Rules Set

The WAF Rule Set is a set of pre-configured rules designed to detect and prevent various web-based attacks. Each rule is assigned with an unique identifier known as a Rule ID (Eg: 942100).

To select a WAF Rules set:

Log in to the Ivanti Neurons for Secure Access portal as a Tenant Admin. See Logging in to Ivanti Neurons for Secure Access.

Use the Gateway Switcher and select Ivanti Connect Secure.

Select Administration > Upgrade > Installation Packages.

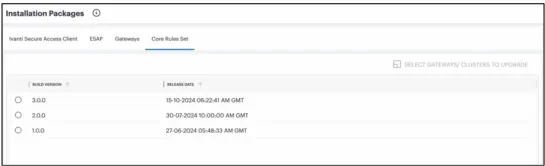

In the Installation Packages page, select Core Rules Set.

A list of available WAF Rule Set Package files appears.

Select the required package version that you want users to have on their device and click Select Gateways/Clusters to Upgrade.

In the Select Gateways/Clusters for Upgrade window, from the drop-down list, select one or more Gateways/Clusters and then click Upgrade.

The upgrade task is scheduled, and a notification is displayed in the logs.

Creating Custom WAF Rules

The Custom WAF Blocking Rules feature is hidden, and you need appropriate license to use the feature. Using this feature, tenant admin can create, apply and manage rules through NSA.

To create custom WAF rule:

In the Custom WAF Blocking Rules page, click Create Rule.

Enter unique rule name and description.

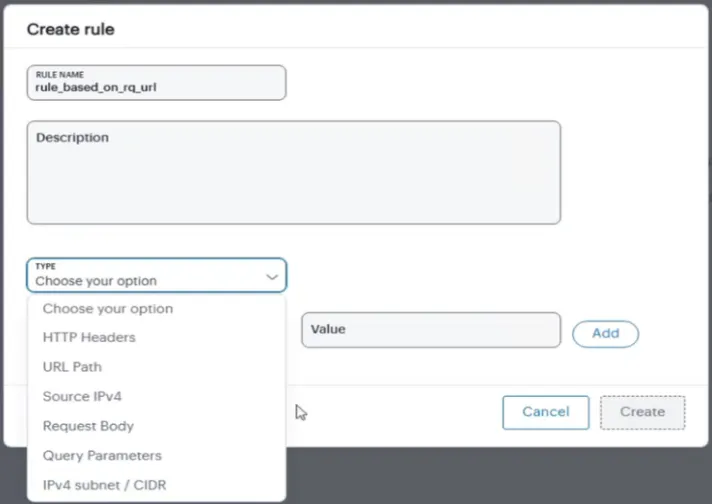

From the Type drop-down list, choose one of the option, enter condition and value. If you want to add one more condition to the rule, cilck Add and enter condition and value. A maximum of two conditions can be added to a rule.

Click Create.

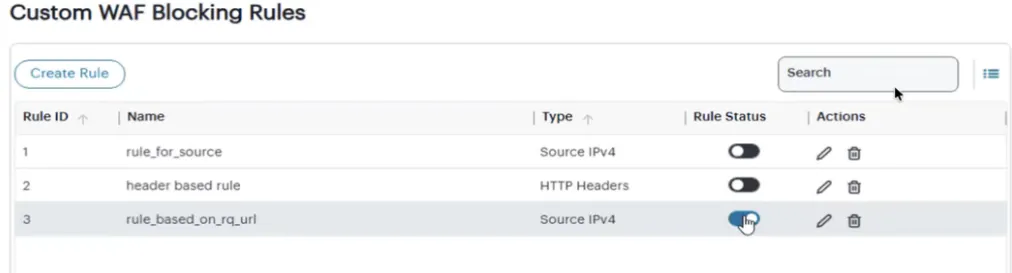

The created rules are listed in the Custom WAF Blocking Rules page. The rules are disabled by default. Enable the rule from the Rule Status column.

You can edit or delete a rule using the icons under Actions column.

Event logs and admin logs are created for the user activities.

Miscellaneous Setup

You can use the System > Configuration > Security > Miscellaneous page to configure the following security options:

Persistent cookie options - You can choose whether to preserve or delete persistent cookies when a session is terminated.

Lockout options - You can configure lockout options to protect the system from denial of service (DoS), distributed denial of service (DDoS), and password-guessing attacks.

Last login - You can choose whether to show users the time and IP address their user ID was used to sign in.

X-Frame-Options protection - You can choose to defend against click-jacking attacks by adding X-Frame-Option header to all the IVE generated pages. If this is not enabled, then only welcome.cgi will have this header.

Connections Limited per IP Address - You can configure number of active IP's per connection and limit number of requests an IP can make to server in given period of time.

Slow Post Attack Defense - You can configure to protect against slow-post DOS attacks from non-authenticated users.

HSTS - HTTP Strict Transport Security (HSTS) is a HTTP special response header which will prevent any communications over HTTP

Booting Options on Integrity Check Failure - You can configure to protect against integrity attacks.

Host Header Validation – You can block open redirect attacks

Username Validation – You can block unauthorized access

Integrity checking options - You can configure scan the system to periodically check for any integrity anomalies. If any anomaly found, information is displayed in the dashboard.

On low-end machines, a reduction in through-put may be seen. To overcome such issues, opt for scheduled scan option in off-peak hours.

To configure cookie and lockout options:

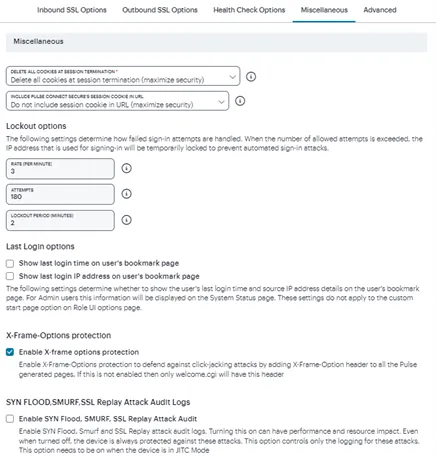

Select System > Configuration > Security > Miscellaneous to display the configuration page.

Complete the configuration as described in the following table.

Click Save Changes.

Settings	Guidelines
Delete all cookies at session termination
Delete / Preserve	For convenience, the system sets persistent cookies on the user's machine to support functions such as multiple sign-in, last associated realm, and the last sign-in URL. For additional security or privacy, you can choose not to set them. Note: By default, Delete all cookies at session termination option is enabled to maximize security. Option is automatically applied after XML or binary configuration import if it was not already applied before the import.
Include Ivanti Connect Secure's session cookie in URL
Include / Not Include	Mozilla 1.6 and Safari may not pass cookies to the Java Virtual Machine, preventing users from running JSAM and Java applets. To support these browsers, the system can include the user session cookie in the URL that launches JSAM or a Java applet. By default, this option is enabled, but if you have concerns about exposing the cookie in the URL, you can disable this feature.
Lockout options
Rate	Specify the number of failed sign-in attempts to allow per minute.
Attempts	Specify the maximum number of failed sign-in attempts to allow before triggering the initial lockout. The system determines the maximum initial period of time (in minutes) to allow the failed sign-in attempts to occur by dividing the specified number of attempts by the rate. For example, 180 attempts divided by a rate of 3 results in an initial period of 60 minutes. If 180 or more failed sign-in attempts occur within 60 minutes or less, the system locks out the IP address being used for the failed sign-in attempt.
Lockout period	Specify the length of time (in minutes) the system must lock out the IP address.
Last Login options
Time / IP Address	Display the day and time and IP address the user last logged in to the system. For users, this information appears on their bookmark page. For administrators, this information appears on the System Status Overview page. These settings do not apply to the custom start page option on Role UI Options page.
X-Frame-Options protection
Enable X-Frame-Options protection	By default, the Enable X-Frame-Options is checked. If the admin does not want to have this protection, they can uncheck this option. The X-Frame-Options HTTP response header can be used to indicate whether or not a browser should be allowed to render a page in a <frame>, <iframe> or <object>.
SYN FLOOD,SMURF,SSL Replay Attack Audit Logs
SYN FLOOD,SMURF,SSL Replay Attack Audit Logs	Turning this on can have performance and resource impact. Even when turned off, the device is always protected against these attacks. This option controls only the logging for these attacks. This option needs to be on when the device is in JITC Mode
Kernel Rate Limiting
Limit SYN requests per source IP	To limit the number of SYN requests per source IP to prevent DOS attacks.
Limit SYN requests per system	To limit the number of SYN requests per system to prevent DDOS attacks.
Connections Limited per IP Address
Enable limiting number of active connections per IP address	Connection Limiting: Limits the maximum number of simultaneous connections allowed from a single IP address to your server. By default, it is disabled and can be configured.
Enter the number of allowed request per IP address	Request Limiting: Limits the number of requests an IP address may make to a server in a given period of time to certain endpoints. By default, it is enabled and cannot be configured.
Slow Post Attack Defence
Timeout	By default, the POST body is received within 10 seconds. If the browser is unable to send the POST body within 10 seconds the connection is eventually dropped. (Configurable from 3 - 60Sec)
Maximum Request Size	By default, now a connection is directly rejected if it tries to POST more than 4KB in POST body (Configurable from 256 Bytes to 24 KB)
HSTS
Max Age	Specify the maximum age for HSTS. It can be disabled by configuring max age as 0.
Enable includeSub-domain directive	Select the check box to enable/disable the includeSubdomain directive. By default, it is turned off.
Enable preload directive	Select the check box to enable/disable the preload directive. By default, it is turned off.
Booting Options on Integrity Check Failure
Booting Options on Integrity Check Failure to stop booting if manifest integrity validation fails	Select the check box to enforce booting options on integrity validation. By default, it is turned off. The following integrity checks are performed: Checks the SHA512 digital signature of the manifest file. Checks the SHA256 digest of each individual file entries in the manifest. If enabled and integrity check fails, admin needs to roll back to previous working package or perform factory reset.
Host Header Validation
Enable Host header validation to block open redirect attacks	Select the check box to enforce host header validation. By default, it is turned off. When Host header validation is enabled, every http request will be validated against hostnames and IP v4/v6 addresses known to the ICS server. If match is not found, the request will be dropped and logs are recorded in admin access logs and user access logs, and a response will be sent back to client. Note: By default, the host header validation option is enabled for strict validation. Validation is automatically applied after XML or binary configuration import if it was not already applied before the import.
Username Validation
Enable Username validation to block unauthorised access	Select the check box to enforce username validation for usage of unsupported characters. Max allowed length for username is 128 characters.
Runtime Integrity Scanner Interval
Periodic Scan	Select the time interval to run the integrity scanner during run time. For example: Select 2 hrs to run the integrity scanner every 2 hrs.
Scheduled Scan	Select to run integrity scanner at a specified time everyday. For example: When 13 hr 25 min is specified, the scanner runs at the same time everyday.
Referer Header Validation
Enable Referer Header validation to block CSRF attacks	Select the check box to enable referer header validation.
Relay State Validation
Enable Relay State Validation for SAML Authentication Server	Relay State validation can be configured under System > Configuration > Miscellaneous. It is enabled by default in 22.5R2.1.
Maximum SAML Response Size	Enable Maximum SAML Response Size. SAML Response Size configures the XML Buffer size. Default is 1 MB and range is 1-20 MB.
Enforce Secondary Session ID verification
Enforce Secondary Session ID verification	This option enforces verification of Secondary Session ID along with Primary Session ID during user session restoration. This verification will be disabled by default in present release. Required ISAC Versions are : Desktop: 22.8R5 Mobile: 22.8R6

Advanced Configuration

Connect Secure supports several HTTP headers, which are sent in response to the client request. There are several more headers built to improve security and prevent attacks like XSS. The Custom HTTP Headers configuration enables the administrator to add new headers that they want to enforce.

To configure custom HTTP header:

Navigate to System > Configuration > Security > Advanced

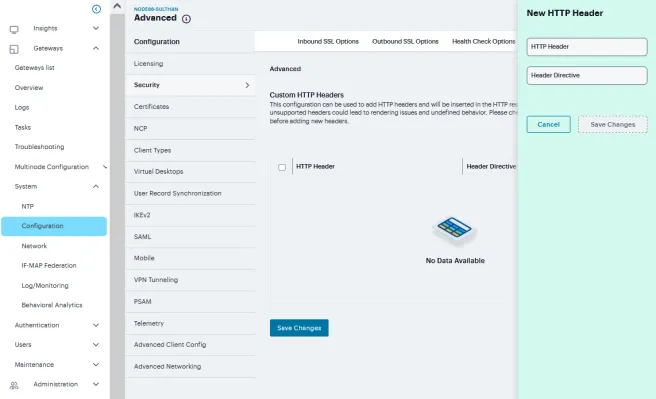

Click ‘+’ to Add the relevant HTTP Header and Header Directive.

Click Save Changes

Certificates Configuration

Connect Secure uses Public Key Infrastructure (PKI) to secure the data sent to clients over the Internet. PKI is a security method that uses public and private keys to encrypt and decrypt information. These keys are enabled and stored through digital certificates. A digital certificate is an encrypted electronic file issued by a certificate authority (CA) that establishes credentials for client/server transactions.

Device Certificates

A device certificate helps to secure network traffic to and from the Ivanti Secure Access client service using elements such as your company name, a copy of your company's public key, the digital signature of the Certificate Authority (CA) that issued the certificate, a serial number, and an expiration date. When receiving the device certificate from the system, the client's browser first verifies whether the device certificate is valid and whether the user trusts the CA that issued the certificate. If the user has not already indicated that they trust the certificate issuer, the Web browser prompts the user with a warning saying connection is untrusted or there is a problem with the websites security certificate.

To import an enterprise root server certificate and private key:

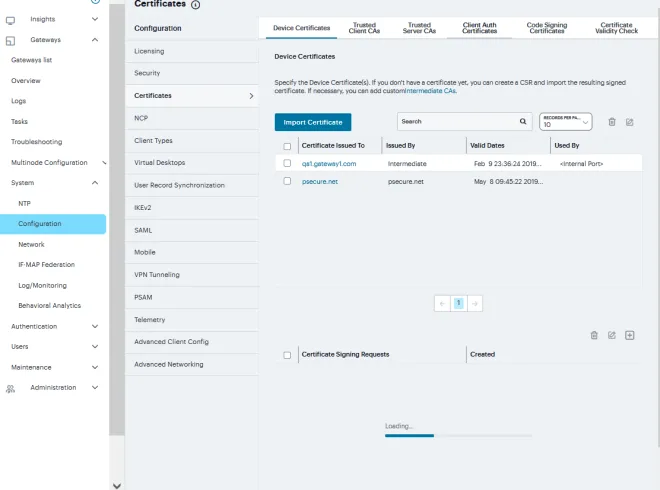

Select System > Configuration > Certificates > Device Certificates.

Click Import Certificate to display the configuration page.

Complete the configuration described in table.

Click Import.

To create Certificate Signing Request (CSR) for RSA and ECC Keys:

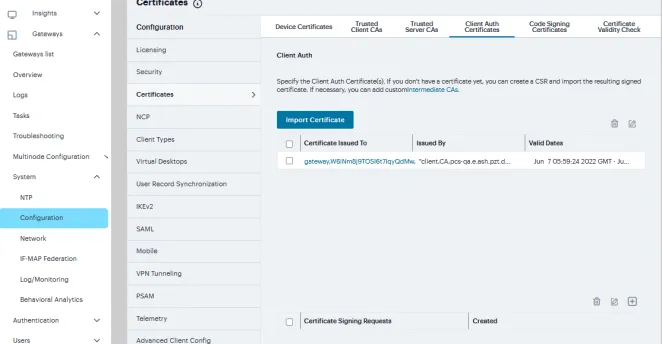

Navigate to System > Configuration > Certificates > Client Auth Certificates.

Click '+' on the Certificate Signing Requests pane.

Enter the required requestor information. In this example, the common name is ecc-p256.<orgname>.net or ics.<orgname>.net.

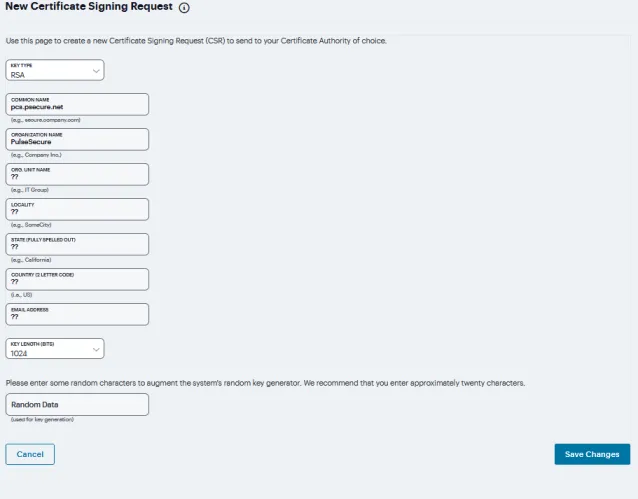

If RSA is selected, then select Key Length and enter Random characters.

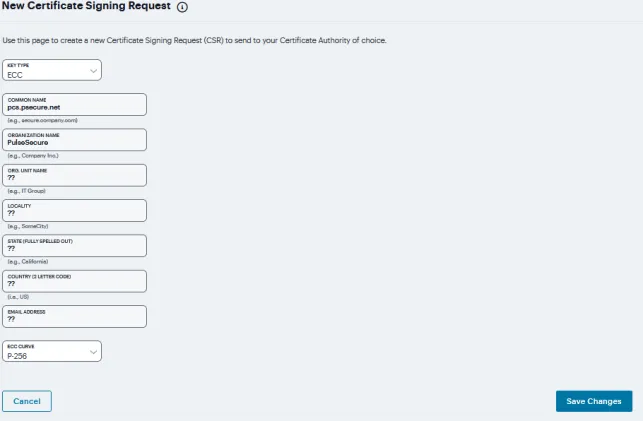

If ECC is selected, then select ECC Curve drop-down.

Click Save Changes.

The CSR is encoded and can be copied or saved to a file. The ECC certificate should be signed by an RSA/ECC CA for Suite B compliance. Follow your CA's process for sending a CSR.

Click the Back to Device Certificates link. Until you import the signed certificate from your CA, your CSR is listed as Pending.

Trusted Client CAs

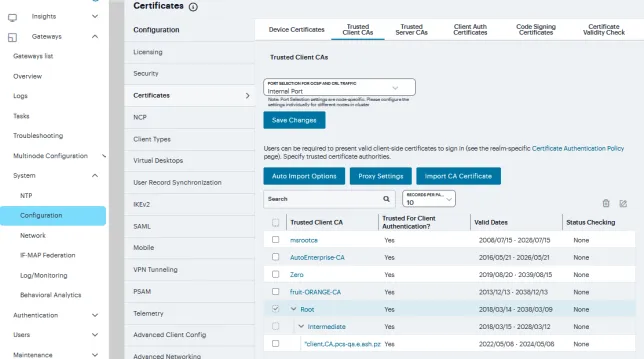

A trusted client CA is a CA that you deem trusted by adding it to the trusted client CA store. The system trusts any certificate issued by that CA. To use client CA certificates, you must install and enable the proper certificates. Additionally, you must install the corresponding client-side certificates in your users' Web browsers, or you must use the MMC snap-in in your users' computer accounts (machine certificate). When validating a client-side CA certificate, the system verifies that the certificate is not expired or corrupt and that the certificate is signed by a CA that the system has been configured to recognize. If the CA certificate is chained, the system also follows the chain of issuers until it reaches the root CA, validating each issuer in turn. The system supports X.509 CA certificates in DER and PEM encode formats.

To import a trusted client CA certificate:

Navigate to System > Configuration > Certificates > Trusted Client CAs to display the configuration page.

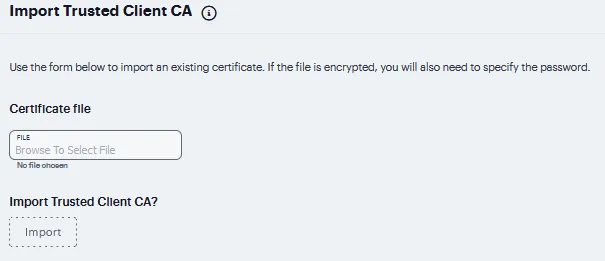

Click Import CA Certificate to display the configuration page.

Browse to the Certificate File, select it, and click Import to complete the import operation.

To enable auto-importing:

Navigate to System > Configuration > Certificates > Trusted Client CAs.

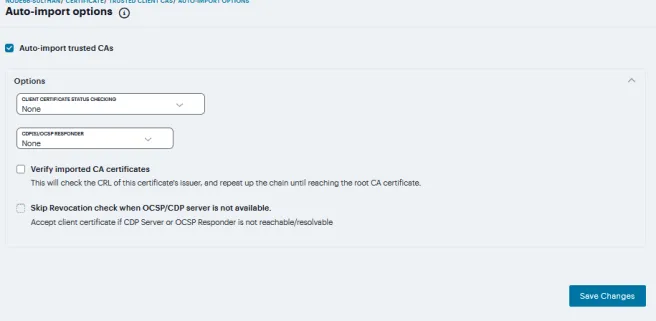

Click the Auto-Import Options button to display the options.

Complete the configuration described in the following table.

Click Save Changes.

Setting	Guidelines
Auto-import trusted CAs	Select this option to enable auto-import and display its configuration settings.
Client Certificate Status Checking	Select a method to validate the trusted client certificate: None-Do not validate. Use OCSP-Use the OCSP method, validating the client certificate in real-time, as needed. After you select this option, you can specify options for OCSP. Use CRLs-Use CRLs to validate the client certificate. After you select this option, you can specify options for CRL. Use OCSP with CRL fallback-Use the OCSP validation method when possible, but attempt to validate client certificates using CRLs if the OCSP method fails (for example, if the link to the OCSP responder fails). After you select this option, you can specify options for OCSP and CRL. Inherit from root CA-Use the method configured for the device certificate.
CDP(s)/OCSP responder	Select the location of the responder value: None-Do not use the responder. From client certificate-Use the responder value configured in the client certificate. From trusted CA certificate-Use the responder value configured in the trusted CA certificate that has been uploaded to the system.
Verify imported CA certificates	Select this option to verify that this trusted client CA is valid. Enabling this will check the CRL of this certificate's issuer, and repeat up the chain until reaching the root trusted client CA.
Skip Revocation check when OCSP/CDP server is not available	Select this option to instruct ICS to skip revocation check and accept end user certificates when either OCSP server or CDP server is not accessible over the network. This option is applicable to digital certificates used for end user authentication. The OCSP Timeout, applicable only for OCSP, is used as the maximum timeout for a network connection or data transfer operation while connecting to an OCSP Responder. An internal timeout will be used for CDP. ICS skips the revocation check in the following conditions: Server IP is not reachable Server Hostname is either not resolvable or resolving to non OCSP/CRL Server IP Proxy IP is either not reachable or not resolving Downloaded CRL has expired OCSP/CRL service in Server is not responding.

To configure a proxy server:

Select System > Configuration > Certificates > Trusted Client CAs.

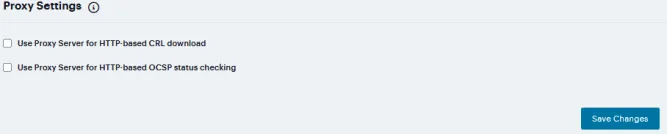

Click Proxy Settings to display the page.

Complete the configuration described in Proxy Settings table.

Click Save Changes.

Setting	Guidelines
Use Proxy Server for HTTP-based CRL download	Select to enable the CRL operations to use a proxy server. You can configure a proxy server for web-based URLs, not LDAP URLs.
Use Proxy Server for HTTP-based OCSP status checking	Select to enable the OCSP operations to use a proxy server.
Host Address	Specify either an IP address or a fully qualified domain name.
Port	Enter the proxy server port number if it is different from the default value of 80.
Username/password	If your proxy server required authentication, enter a username and password to log in to the proxy server.

Trusted Server CAs

All of the trusted root CAs for the Web certificates installed in Internet Explorer are preinstalled. You might need to install a trusted server CA for additional Web servers in the following situations:

If you are using third-party integrity measurement verifiers (IMVs) that are installed on a remote server, you must upload the trusted root certificate of the CA that signed the remote server's server certificate.

If you are using virus signature version monitoring with your own staging site for storing the current virus signatures list, you must upload the trusted root certificate of the CA that signed the staging server certificate.

You can install the trusted root CA certificate on the endpoint in any of the following ways:

Use a CA certificate that is chained to a root certificate that is already installed on the endpoint, such as VeriSign.

Upload the CA certificate and any intermediate CA certificates to the Ivanti Secure Access client system. During client installation, the system automatically installs the trusted root device CA certificates on the endpoint. When prompted during installation, the user must allow the installation of the CA certificate(s).

Prompt users to import the CA certificates on the endpoint using Internet Explorer or other Microsoft Windows tools. In other words, you can use common methods organizations use to distribute root certificates.

To upload CA certificates:

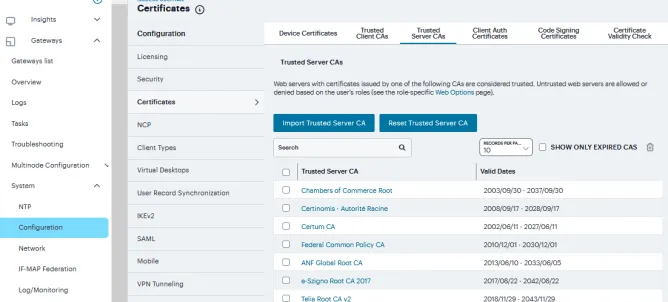

Select System > Configuration > Certificates > Trusted Server CAs to display the page.

Click Import Trusted Server CA to display the page.

Browse to the Certificate File, select it, and click Import to complete the import operation.

To restore the prepopulated group of trusted CA certificates:

Select System > Configuration > Certificates > Trusted Server CAs.

Click Reset Trusted Server CAs.

Confirm that you want to restore the set of trusted server CAs that was installed when you upgraded.

Connect Secure restores the group of pre-populated trusted server CAs that were installed upon upgrade. This operation clears all manually imported certificates.

Client Auth Certificates

In certain corporate environments, servers on the LAN are protected with two-way SSL authentication. These servers require the client to authenticate by presenting a valid certificate. In the remote access scenario, Ivanti Connect Secure is a client of these servers. You can configure Ivanti Connect Secure to present client authentication certificates to servers whenever it communicates over SSL. Note that Ivanti Connect Secure will present client certificates only when the SSL handshake requires it.

This feature authenticates Ivanti Connect Secure (as a client) to back-end servers. It also authenticates end users or end-user machines to servers on the corporate LAN.

The access management framework allows certificates that include the private key and for instances where the private key is in a separate file from the certificate. In addition, if your certificates have been exported into a system configuration file, you can import the system configuration file to upload the certificates.

To import the client auth certificates files:

Select System > Configuration > Certificates > Client Auth Certificates.

Click Import Certificate to display the configuration page.

Complete the configuration described in table.

Click Import.

Setting	Guidelines
If certificate and private file are separate keys
Certificate File	Browse to the network path or local directory location of your certificate key file.
Private Key File	Browse to the network path or local directory location of your private key file.
Password Key	Enter the password key.
Import via System Configuration file
System Configuration File	Browse to the network path or local directory location of the system configuration file.

To create Certificate Signing Request (CSR) for RSA and ECC Keys:

Navigate to System > Configuration > Certificates > Client Auth Certificates.

Click '+' on the Certificate Signing Requests pane.

Enter the required requestor information. In this example, the common name is ecc-p256.<orgname>.net or ics.<orgname>.net.

If RSA is selected then, select Key Length and enter Random characters.

If ECC is selected then, select ECC Curve drop down. Click Save Changes.

The CSR is encoded and can be copied or saved to a file. The ECC certificate should be signed by an RSA/ECC CA for Suite B compliance. Follow your CA's process for sending a CSR.

Click the Back to Device Certificates link. Until you import the signed certificate from your CA, your CSR is listed as Pending.

Code-Signing Certificates

In a basic setup, the only required certificates are a device certificate and a code-signing certificate. Ivanti Connect Secure can use a single code-signing certificate to resign all Java applets and a single device certificate to intermediate all other PKI-based interactions. If the basic certificates do not meet your needs, however, you may install multiple device and applet certificates on Ivanti Connect Secure or use trusted CA certificates to validate users.

When Ivanti Connect Secure intermediates a signed Java applet, it re-signs the applet with a self-signed certificate by default. This certificate is issued by a nonstandard trusted root CA. As a result, if a user requests a potentially high-risk applet (such as an applet that accesses network servers), the user's Web browser alerts him that the root is untrusted.

To import a code-signing certificate:

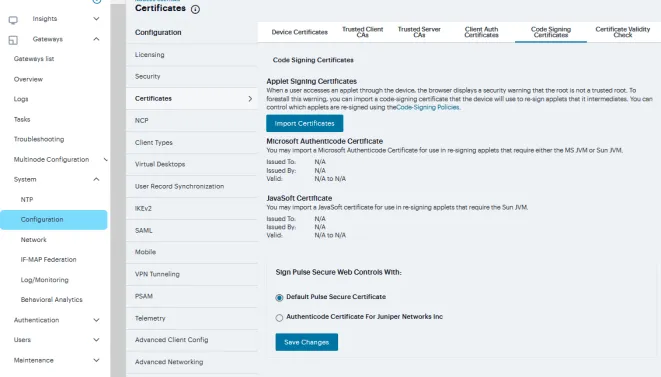

Select System > Configuration > Certificates > Code-Signing Certificates to display the configuration page.

Click Import Certificates to display the configuration page.

Complete the configuration described in the following table.

The following table lists the Import Certificates Configuration Guidelines:

Setting	Guidelines
Microsoft Authenticode or Multipurpose Certificate for Internet Explorer (Microsoft JVM)
Certificate File	Browse to the network path or local directory location of your certificate key file.
Private Key File	Browse to the network path or local directory location of your private key file.
Password Key	Enter the password key.
Javasoft Certificate for Internet Explorer & Netscape (Sun JVM)
Keystore File	Browse to the network path or local directory location of the keystore file.

Click Import to complete the import operation.

When you have successfully imported a certificate, the system displays the Sign Ivanti Web Controls With dialog box. Specify the signing option:

Default Ivanti Certificate - Select this option to sign all ActiveX and Java applets originating from Ivanti Connect Secure using the default Ivanti certificate. If you have previously selected an imported code-signing certificate and are reverting back to this option, after you click Save, a process icon appears indicating that the system is processing the request and re-signing all of the relevant code. This process can take several minutes to complete.

Authenticode Certificate - For <Imported Certificate Name>-Select this option to sign all ActiveX and Java applets using the certificate or certificates imported in the previous step. When you click Save, a process icon appears indicating that the system is processing the request and signing all of the relevant code. This process can take several minutes to complete.

Click Save Changes.

Certificate Validity Check

Every time a certificate is added to ICS (through manual import, XML import, or upgrade), its expiration date is stored in the cache. A background process checks all certification expiration dates once in every 7 days. If any certificate is about to expire soon, the administrator is notified. Notifications to administrators include a banner message in the adminUI upon login, SNMP trap, and log messages in the event log. The administrator can configure how soon he or she wishes to be notified of the expiration. The default is 60 days in advance. It can be configured to a value starting from 7 days in advance to 999 days in advance of the expiration of the certificate. The expiration warning window is common to all types of certificates. However, the administrator can choose to enable or disable this feature for each certificate category in the user interface.

To check validity of certificates:

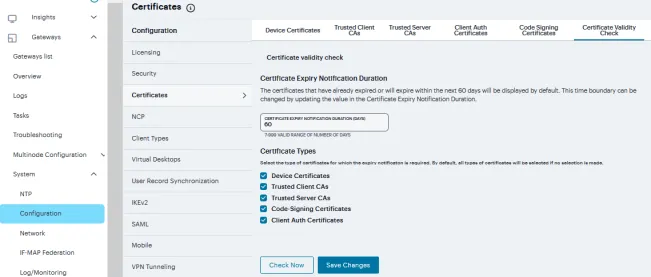

Click on Configuration > Certificates > Certificates Validity Check.

The page displays the Certificate Expiry Notification Duration and the Certificate Types.

Enter the number of days before which the warning must be displayed.

Select the type of certificate for which the expiry notification is required. By default, all types of certificates will be selected if no selection is made.

Click on Check Now. The Certificate Category, DN name and date of expiry are displayed.

When an administrator logs in, a warning sign is displayed, if there are any certificates that expire within the configured number of days.

NCP Configuration

The following types of internal protocols are used to communicate between Ivanti Connect Secure and client applications:

Network Communications Protocol (NCP) - Standard NCP has been replaced with oNCP. Windows client applications, PSAM, and Terminal Services fallback to NCP if oNCP fails.

Optimized NCP (oNCP) - oNCP significantly improves the throughput performance of the client applications over NCP because it contains improvements to protocol efficiency, connection handling, and data compression. Windows client applications, PSAM, and Terminal Services use oNCP by default.

Java Communications Protocol (JCP) -JCP is the Java implementation of standard NCP. The system uses JCP to communicate with Java client applications, JSAM, and the Java Content Intermediation Engine.

To set NCP options:

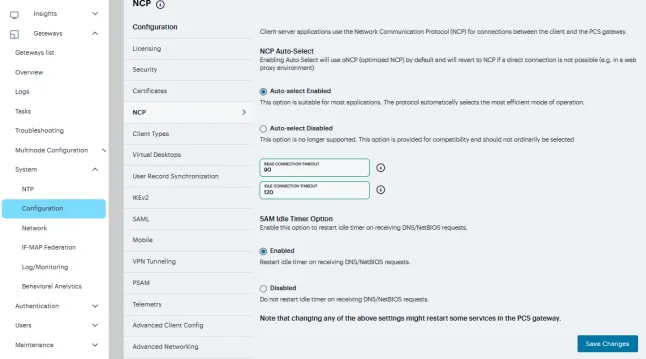

Navigate to System > Configuration > NCP.

(Windows clients) Under NCP Auto-Select, select:

Auto-select Enabled (recommended) - Use the oNCP by default. If you select this option, the system uses oNCP for most client/server communications and then switches to standard NCP when necessary. The system reverts to NCP if the user is running an unsupported operating system, browser type, or combination thereof, or if the client application fails to open a direct TCP connection to the device for any reason (for instance, the presence of a proxy, timeout, disconnect).

Auto-select Disabled - Always use standard NCP. This option is primarily provided for backwards compatibility.

If you are using Network Connect to provide client access, we recommend that you exercise caution when employing the Auto-select Disabled option, as Mac and Linux clients cannot connect using the traditional NCP protocol. If you disable the oNCP/NCP auto-selection feature and a UDP-to oNCP/NCP fail-over occurs, the system disconnects Macintosh and Linux clients because it fails over from UDP to NCP (instead of oNCP), which does not support these users.

(Java clients) Under Read Connection Timeout, set the timeout interval for Java clients (15-120 seconds). If client-side secure access methods do not receive data from the system for the specified interval, they try to reestablish a connection. Note that this value does not apply to user inactivity in client applications.

(Windows clients) Under Idle Connection Timeout, set the idle connection interval. This timeout interval determines how long the system maintains idle connections for client-side Windows secure access methods.

Under SAM Idle Timer enable/disable idle timer to receive DNS/NetBIOS requests

Click Save Changes.

Client Types Configuration

The Client Types tab allows you to specify the types of systems your users may sign in from and the type of HTML pages to display when they do. In addition, client types are used to identify the operating system shown on the Device Management page for devices that use ActiveSync to synchronize e-mail with a Microsoft Exchange server. The user agent string used to identify a device during login may be different from the one in the ActiveSync message. For example, in the list of default user agent strings, Apple-iPhone and Apple-iPad are used only in ActiveSync messages.

To manage the client types:

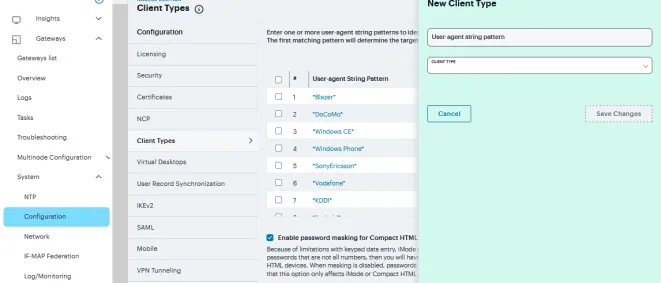

Navigate to System > Configuration > Client Types.

In the User-agent string pattern text box, enter the user agent string for the operating system (s) that you want to support. You can specify all or part of the string. For example, you can use the default DoCoMo string to apply to all DoCoMo operating systems, or you can create a string such as DoCoMo/1.0/P502i/c10 to apply to a single type of DoCoMo operating system. You can use the * and ? wildcard characters in the string. Note that user agent strings on the system are case-insensitive.

Select the type of HTML to display to users who sign in from the operating system specified in the previous step. Options include:

Standard HTML - The system displays all standard HTML functions, including tables, full- size graphics, ActiveX components, JavaScript, Java, frames, and cookies. Ideal for standard browsers, such as Firefox, Mozilla, and Internet Explorer.

Compact HTML (iMode) - The system displays small-screen HTML-compatible pages. This mode does not support cookies or the rendering of tables, graphics, ActiveX components, JavaScript, Java, VB script, or frames. (The only difference between this option and the Smart Phone HTML Basic option is the user interface.) Ideal for iMode browsers.

Form Post SSO is not supported on iMode appliances.

Mobile HTML (Pocket PC) - The system displays small-screen HTML-compatible pages that may contain tables, small graphics, JavaScript, frames, and cookies, but this mode does not facilitate the rendering of java applets or ActiveX components. Ideal for Pocket PC browsers.

Smart Phone HTML Advanced - The system displays small-screen HTML-compatible pages that may contain tables, small graphics, frames, cookies, and some JavaScript, but this mode does not facilitate the rendering of java applets, ActiveX components, or VB scripts. Ideal for Treo and Blazer browsers.

Smart Phone HTML Basic - The system displays small-screen HTML-compatible pages. This mode does not support cookies or the rendering of tables, graphics, ActiveX components, JavaScript, Java, VB script, or frames. (The only difference between this option and the Compact HTML option is the user interface.) Ideal for Opera browsers on Symbian.

The system rewrites hyperlinks to include the session ID in the URL instead of using cookies.

Mobile Safari, Android, Symbian, iPad - The Mobile Safari (iPhone/iPod Touch), Android, and Symbian selections have Basic, Advanced, and Full HTML options.

Specify the order that you want to evaluate the user agents. The system applies the first rule in the list that matches the user's system. For example, you may create the following user agent string/HTML type mappings in the following order

User Agent String: DoCoMo Maps to: Compact HTML

User Agent String: DoCoMo/1.0/P502i/c10 Maps to: Mobile HTML

If a user signs in from the operating system specified in the second line, the system will display compact HTML pages to him, not the more robust mobile HTML, since his user agent string matches the first item in the list. To order mappings in the list, select the check box next to an item and then use the up and down arrows to move it to the correct place in the list.

Select the Enable password masking for Compact HTML check box if you want to mask passwords entered in iMode and other devices that use compact HTML. (Devices that do not use compact HTML mask passwords regardless of whether or not you select this check box.) Note that if your iMode users' passwords contain non-numeric characters, you must disable password masking because iMode devices only allow numeric data in standard password fields. If you disable masking, passwords are still transmitted securely, but are not concealed on the user's display.

Click Save Changes.

Virtual Desktops Configuration

For ICS 25.x Gateways, this feature is deprecated and will be removed in the near future.

In addition to standard resource profiles and resource profile templates, you can configure virtual desktops as resource profiles. As with the other resource profiles, a virtual desktop profile contains all of the role assignments and end-user bookmarks required to provide access to an individual resource. Unlike other resource profile types, there is no resource policy to configure for virtual desktops due to the dynamic nature of virtual desktops. The IP address and port of the system is not known until the end user launches a session so dynamic ACLs are used.

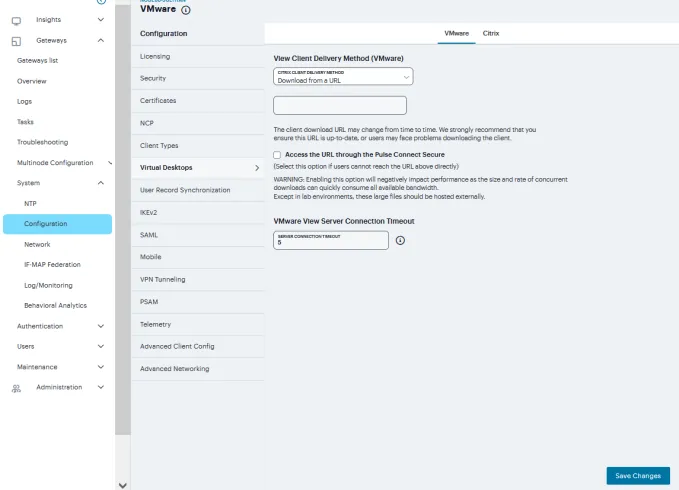

You can use the Virtual Desktop Configuration page to define the client delivery mechanism for end-users who do not have the client. The process is similar for both Citrix XenDesktop and VMware View Manager.

Navigate to System > Configuration > Virtual Desktops.

For View Client Delivery Method Select VMware.

For Citrix XenDesktop, select Citrix.

For ICS 25.x Gateways, the Citrix tab is deprecated and will be removed in the near future.

Select Download from Ivanti Connect Secure to download the client file from the system. Click File to locate the client file (.msi, .exe or .cab) and enter the version number.

Select Download from a URL to download the client file from the Internet. If desired, enter a new URL to override the default.

Check the Access the URL through the Ivanti Connect Secure check box if end users cannot directly access the specified Web page. Selecting this option allows users to use the secure gateway to access the URL.

Under Server Connection Timeout, enter the number of seconds to wait for the server to respond before timing out.

User Record Synchronization

The user record synchronization feature promotes a more consistent user experience by allowing users to retain their bookmarks and individual preferences regardless of which device they log in to.

User record synchronization relies on client-server pairings. The client is the device that users log in to start their remote access. Each client is associated with one primary server and one backup server to store user record data. Clients can be individual appliances or a node within a cluster.

A server in this instance is the device that stores the user data records. Each server can be configured to replicate its user record data to one or more peer servers. Servers are identified by a user-defined logical name. The same logical name can be assigned to more than one authentication server to let you associate authentication servers of different types to the same user. For example, SA1 is an ACE authentication server with user1 who creates a bookmark to www.<orgname>.net. SA2 is an Active Directory authentication server with the same user1. For the www.<orgname>.net bookmark to be transferred from SA1/ACE/user1 to SA2/AD/user1 you would assign the logical name "Logical1" to both the ACE server on SA1 and the Active Directory server on SA2.

General Setup

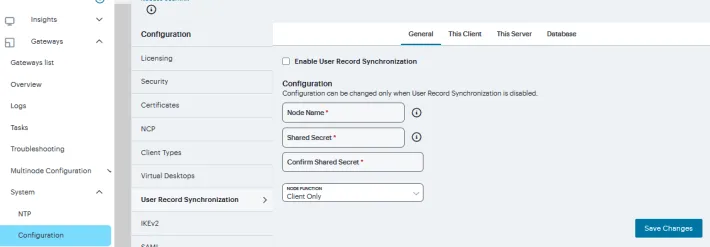

Navigate to System > Configuration > User Record Synchronization > General.

Select the Enable User Record Synchronization check box.

Enter a unique node name. This name is used when associating a client with a server and is different from the logical name assigned to a server. This node name is also not the same as the cluster node name.

Enter the shared secret and confirm it. The shared secret is the password used to authenticate the client with its servers and the primary server with its peer servers. Use the same shared secret for all clients and servers participating in user record synchronization.

Select whether this node is client only or if this node acts as both a client and server.

Click Save Changes.

- If you need to make any changes in this window at a later time, you must deselect the Enable User Record Synchronization check box and click Save Changes. Make your edits, select the Enable User Record Synchronization check box and save your changes. - Once you enter a name and shared secret, you cannot clear these fields.

Client Configuration

To set up the client, you select the primary and backup server you want this client to synchronize with:

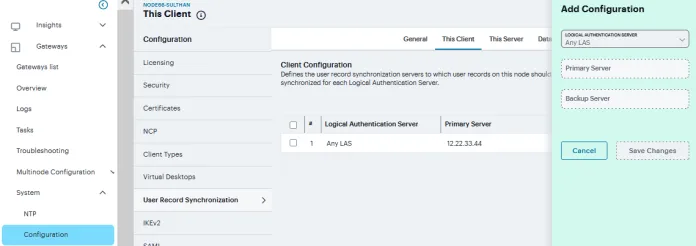

Navigate to System > Configuration > User Record Synchronization > This Client.

Click '+', Select the LAS name you want to synchronize and enter the primary IP of the user record. If you prefer to synchronize with any available server, select Any LAS.

Enter the Primary and optionally a Backup server's IP address and then click Save Changes.

Even if you select Any LAS, you must enter a primary server IP address. Once added, the primary and backup servers have a colored icon next to their name indicating their connection status.

Server Configuration

To set up the user record synchronization server you must define its peer nodes (optional) and the clients that can access this server.

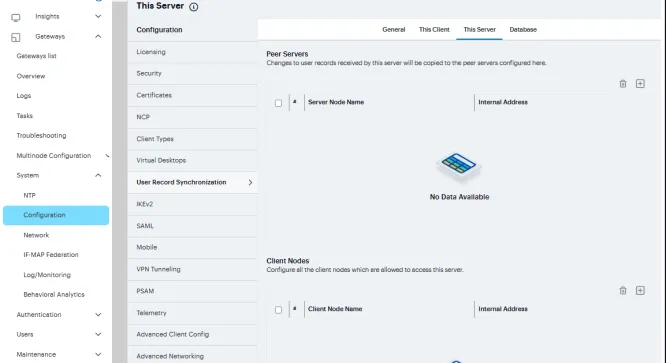

Navigate to System > Configuration > User Record Synchronization > This Server.

Under Peer Server, click '+'and enter the peer server's Node name and IP address, then click Save Changes. To specify more than one peer server, enter each server's node name and IP address individually and click Save Changes. There is no limit on the number of peer servers you can add. Data is replicated from the primary or backup server to its peer servers. If the primary is not available, user data is sent to the backup. User data is then replicated to the peer servers.

For each client you want synchronized with this server, Under Client Nodes, click '+'enter the Client's name and IP address and click Save Changes. Once added, peer servers will have a colored icon next to their name indicating their connection status. Node status is provided to client nodes and LAS mapping servers as well.

Database Configuration

With the Database tab, you can delete inactive records from the client cache, retrieve statistics about the database, export and import the data and remove user data from the server's database.

To configure the database:

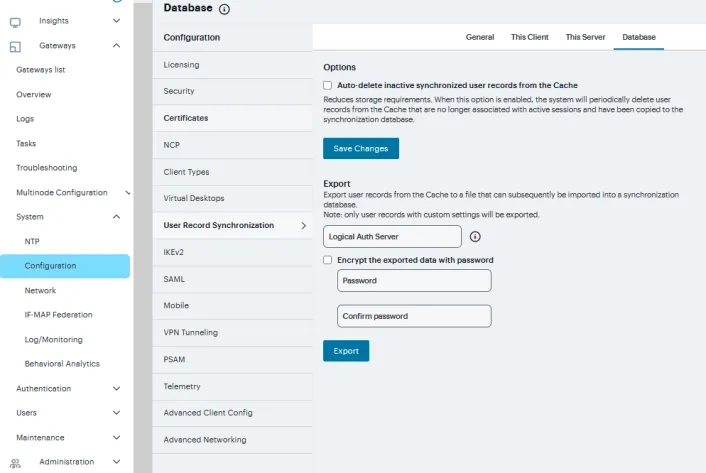

Navigate to System > Configuration > User Record Synchronization > Database.

Select Auto-delete inactive synchronized user records from the Cache to remove inactive user records from the cache and not from the user record database. When this option is selected, the system performs a check every 15 minutes and deletes user records that meet all of the following criteria:

There are no active user sessions associated with the user record.

The user record does not have any custom settings, or the latest version of the user record has been synchronized with the user record database.

The authentication server associated with the user record database does not have type "local". For example, the "System Local" auth server that is part of the default configuration of the system has a "local" type, so any user records associated with that auth server will not be auto-deleted. However, user records associated with external authentication servers like Radius or LDAP may be deleted, depending on the two prior criteria.

Click Save Changes.

Under Export, you export user records to a file. The user records can be exported from the user record database, or from the cache. The exported file can be used to pre-populate the user record database on another node.

To encrypt the exported data, select the Encrypt the exported data with password check box and enter the Password and Confirm it.

Click Export to export the user records from the specified source (cache or database). You will be prompted where to save the file.

IKEv2 Configuration

IKE or IKEv2 (Internet Key Exchange) is the protocol used to set up a security association in the IPsec protocol suite. Microsoft Windows 7 fully supports the IKEv2 standard through Microsoft's Agile VPN functionality and can operate with a VPN gateway using these protocols. Information on IKE and IKEv2 is widely available on the Internet. It is not the intent of this guide to describe details about IKE and IKEv2.

The system supports IKEv2, enabling interoperability with clients or devices, such as smartphones, that have a standards-based IPSec VPN client. IKEv2 clients count toward the total number of sessions. Thus, the total number of sessions = number of IKEv2 sessions + number of NCP sessions. The system supports the following methods for authenticating IKEv2 clients:

Machine certificate-based authentication

Authentication using EAP methods

IKEv2 uses port 500 exclusively. Do not configure port 500 in your VPN Tunneling profiles.

To configure the IKEv2 ports and EAP protocol:

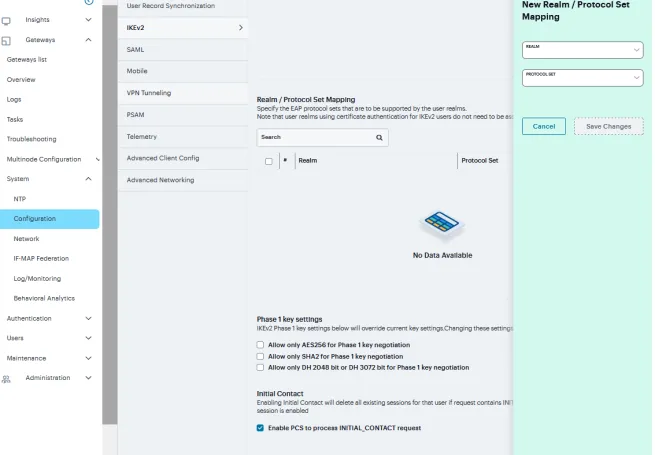

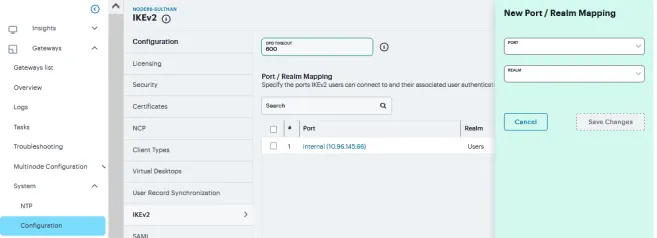

Navigate to System > Configuration > IKEv2 to display the configuration page.

Enter the DPD timeout value in seconds. Valid values are 400-3600. DPD is a form of keepalive. When a tunnel is established but idle, one or both sides may send a "hello" message and the other replies with an acknowledgement. If no response is received, this continues until the DPD time value has elapsed. If there still is no traffic or acknowledgement, the peer is determined to be dead and the tunnel is closed.

Under Port/Realm Mapping, click '+' select the Port and the Realm to use that port and click Save Changes.

Under Realm/Protocol Set Mapping, click '+" select the Realm and the EAP protocol set to use for that realm. The three Protocol Set Options include EAP-MSCHAP-V2, EAP-MD5-Challenge, and EAP-TLS.

To Configure Phase-1 Key Settings, select the required Phase 1 Key Settings. Three new UI options are available to enforce:

Encryption Algorithm (AES256)

Integrity Algorithm (SHA256, SHA384 and SHA512)

Diffie-Hellman Group (DH 2048 and DH3072).

Enabling these options mean more secured Phase 2 negotiations. When AES256 is enabled, AES256 Encryption Algorithm is preferred over AES128 or 3DES. When SHA2 is Enabled, SHA2 Integrity Algorithm is preferred over SHA1 and When DH is Enabled, DH2048 or DH3072 Diffie-Hellman Group is preferred over DH1024.

Click Save Changes.

Changing IKEv2 configuration (System > Configuration > IKEv2) disconnects connections from IKEv2 clients, VPN Tunneling and Ivanti. VPN Tunneling and Ivanti will reconnect automatically.

SAML Configuration

SAML is an XML-based framework for communicating user authentication, entitlement, and attribute information. The standard defines the XML-based assertions, protocols, bindings, and profiles used in communication between SAML entities. SAML is used primarily to implement Web browser single sign-on (SSO). SAML enables businesses to leverage an identity-based security system like Ivanti Connect Secure to enforce secure access to web sites and other resources without prompting the user with more than one authentication challenge.

You use the System > Configuration > SAML pages to maintain a table of SAML metadata files for the SAML service providers and identity providers in your network. Using SAML metadata files makes configuration easier and less prone to error. You can add the metadata files to the system by:

Uploading a metadata file.

Retrieving the metadata file from a well-known URL.

To add metadata files:

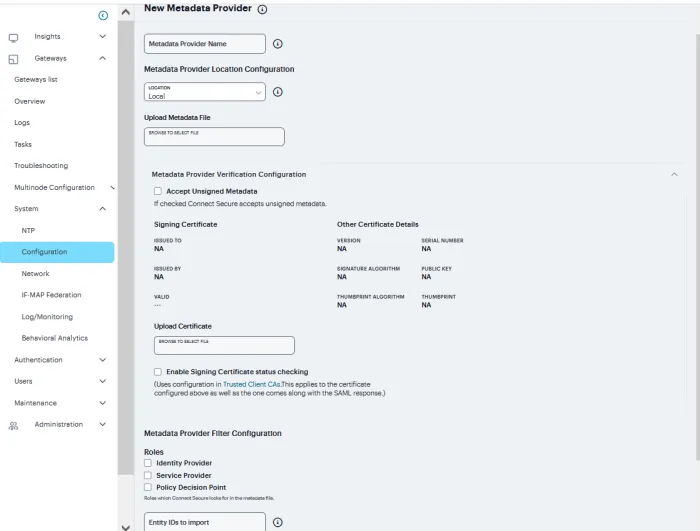

Navigate to System > Configuration > SAML.

Click '+'' to display the configuration page.

Enter New Metadata Provider name.

Complete the settings described in the following table

Click Save Changes

Setting	Guidelines
Metadata Provider Location Configuration	Select one of the following methods: Local Browse and locate the metadata file on your local host or file system. Remote Enter the URL of the metadata file. Only http and https protocols are supported.
Upload Metadata File	You can upload the metadata file directly.
Metadata Provider Verification Configuration
Accept Unsigned Metadata	If this option is not selected, unsigned metadata is not imported. Signed metadata is imported only after signature verification.
Signing Certificate	* Browse and locate the certificate that verifies the signature in the metadata file. This certificate overrides the certificate specified in the signature of the received metadata. If no certificate is uploaded here, then the certificate present in the signature of the received metadata is used. * Select the Enable Certificate Status Checking option to verify the certificate before using it. Certificate verification applies both to the certificate specified here and the certificate specified in the signature in the metadata file.
Metadata Provider Filter Configuration
Roles	Select whether the metadata file includes configuration details for a SAML service provider, identity provider, or Policy Decision Point. You may select more than one. If you select a role that is not in the metadata file, it is ignored. If none of the selected roles are present in the metadata file, the system returns an error.
Entity IDs To Import	Enter the SAML Entity IDs to import from the metadata files. Enter only one ID per line. Leave this field blank to import all IDs. This option is available only for uploading local metadata files.

Mobile Configuration

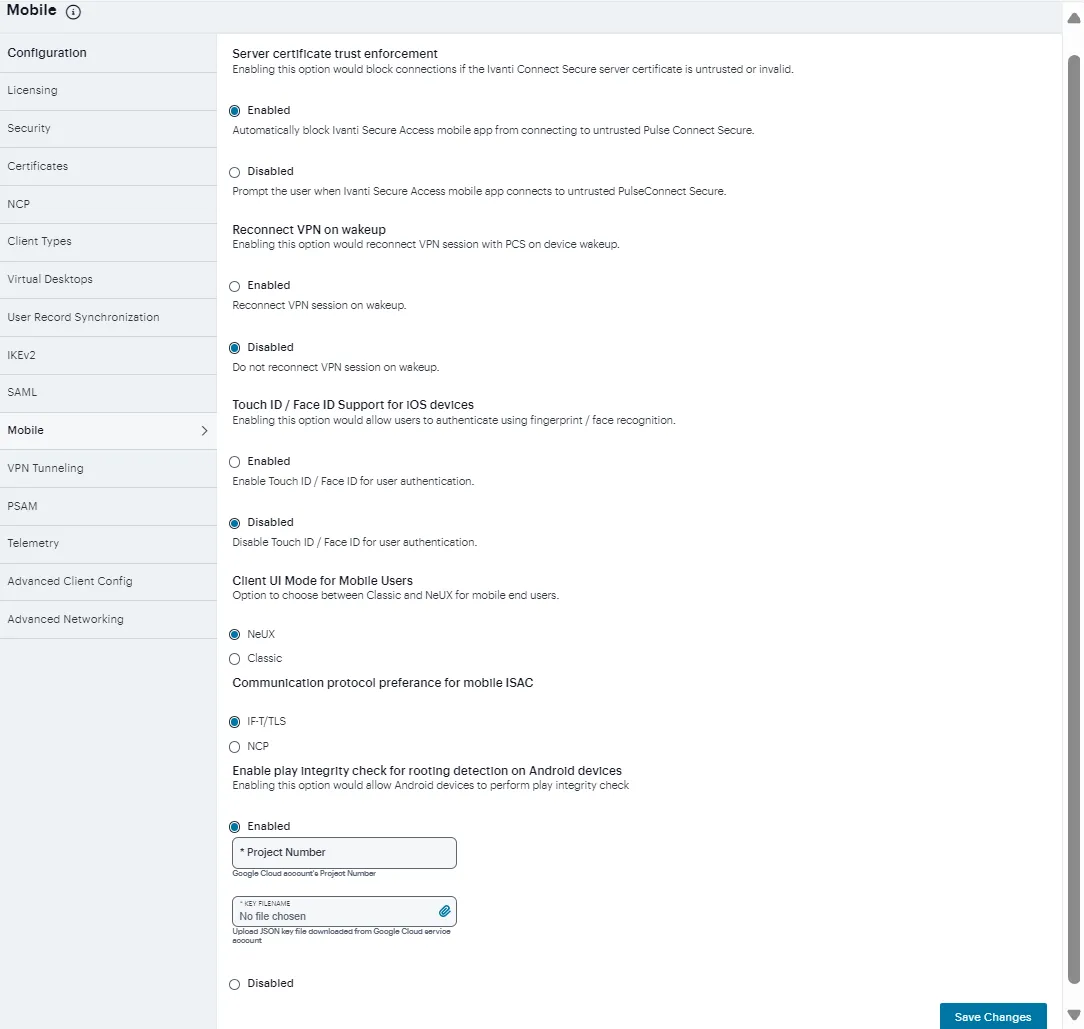

This topic describes the mobile options that are available on Ivanti Connect Secure. To configure the mobile option, go to System > Configuration > Mobile. It includes the following information:

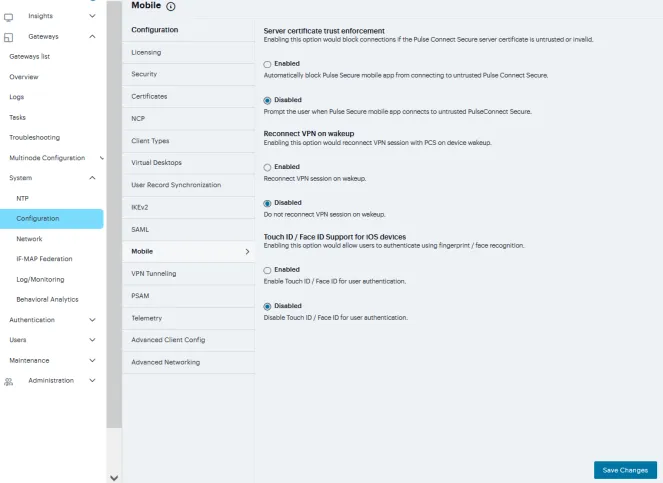

The following table lists the Configuring the Mobile Options:

Option	Description
Server certificate trust enforcement	Enables you to block connections if the Ivanti Connect Secure server certificate is untrusted or invalid. When enabled, it automatically blocks the Ivanti Secure Access Client app from connecting to untrusted Ivanti Connect Secure. When disabled, it prompts when Ivanti Secure Access Client app connects to untrusted Ivanti Connect Secure.
Reconnect VPN on wakeup	Enables you to reconnect a VPN session with ICS on device wakeup.
Touch ID / Face ID Support for iOS devices	Enables you to authenticate using fingerprint / face recognition.
Client UI Mode for Mobile Users	Enables you to switch between Classic and NeUX
Communication protocol preference for mobile ISAC	Enables you to choose the type of authentication to use either IF-T/TLS or NCP.
Enable play integrity check for rooting detection on Android devices	Enabling this option would allow Android devices to perform play integrity check. It helps to check if interactions and server requests are coming from the genuine app binary running on a genuine Android device. To Enable the play integrity check perform the following: Enter the Google Cloud account's Project Number. Only Numeric characters are allowed. Browser to upload JSON key file downloaded from Google Cloud service account. For more info refer to Overview of the Play Integrity API.

VPN Tunneling Configuration

The VPN tunneling access option (formerly called Network Connect) provides a VPN user experience, serving as an additional remote access mechanism to corporate resources using Connect Secure. This feature supports all Internet-access modes, including dial-up, broadband, and LAN scenarios, from their client machine and works through client-side proxies and firewalls that allow SSL traffic.

When a user launches VPN tunneling, the system transmits all traffic to and from the client over the secure VPN tunnel. The only exception is for traffic initiated by other system-enabled features, such as Web browsing, file browsing. If you do not want to enable other system features for certain users, create a user role for which only the VPN tunneling option is enabled and make sure that users mapped to this role are not also mapped to other roles that enable other system features.

To configure VPN tunneling:

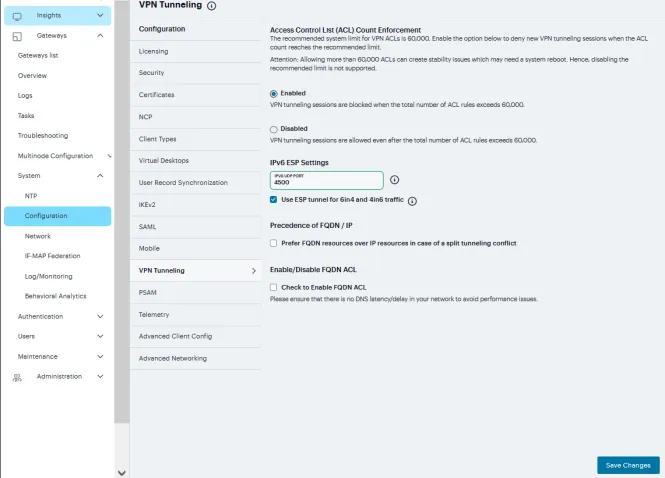

Navigate to System > Configuration > VPN Tunneling.

Under Access Control List (ACL) Count Enforcement enable to block VPN tunneling sessions when the total number of ACL rules exceeds 60,000.

Under IPv6 ESP Settings, enter UDP Port number and select the Use ESP tunnel for 6in4 and 4in6 traffic check box.

Under Precedence of FQDN / IP section, check Prefer FQDN resources over IP resources in case of a split tunneling conflict.

Under Enable/Disable FQDN ACL, check to Enable FQDN ACL

Click Save Changes.

PSAM Configuration

The Secure Application Manager option provides secure, application-level remote access to enterprise servers from client applications. The Windows version of the Secure Application Manager is a Windows-based solution that enables you to secure traffic to individual client/server applications and application servers.

To Configure PSAM:

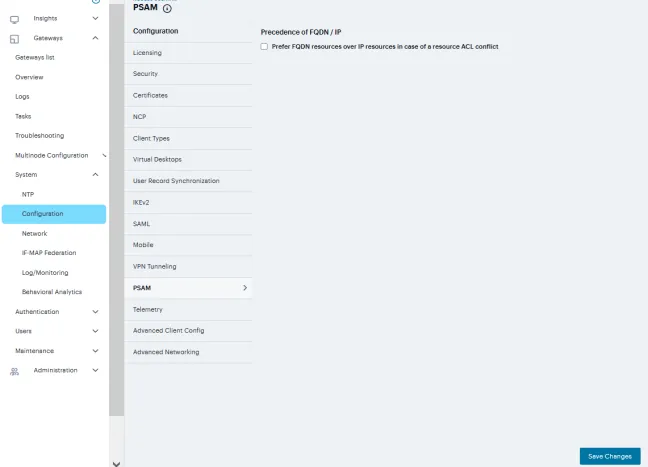

Navigate to System > Configuration > PSAM

Under Precedence of FQDN / IP section, check Prefer FQDN resources over IP resources in case of a resource ACL conflict.

Telemetry Settings

Telemetry Settings helps you to enable Google Analytics and Crash Analytics.

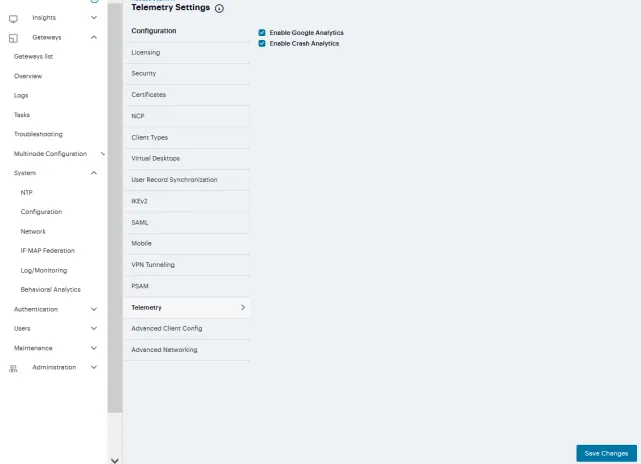

To monitor the usage of customer and track the crash #. Navigate to System > Configuration > Telemetry

Enable Google Analytics to tracking how frequently customer is using a particular feature.

Enable Crash Analytics to collect logs when user faces any crash.

Advanced Client Configuration

This topic describes the XML advanced client configuration that can be used by the ICS administrator to configure the custom settings, which are meant to solve a specific customer scenario without changing the ICS admin console. Admin can set these custom settings in the form of XML input through the Advanced Client Configuration UI feature. Ivanti Secure Access clients supporting these custom settings will consume them when connecting to this ICS, and the same would be applied on the client ma-chines. This feature will minimize the number of changes going into the ICS admin console, in order to fulfill a custom requirement of a specific customer.

If the administrator configures the Ivanti Connect Secure sever with the following XML input in "Advanced Client Configuration for Ivanti Secure Access Client" option, it will ignore TCP MSS options while calculating the virtual adapter MTU on client side.

To add advance client config:

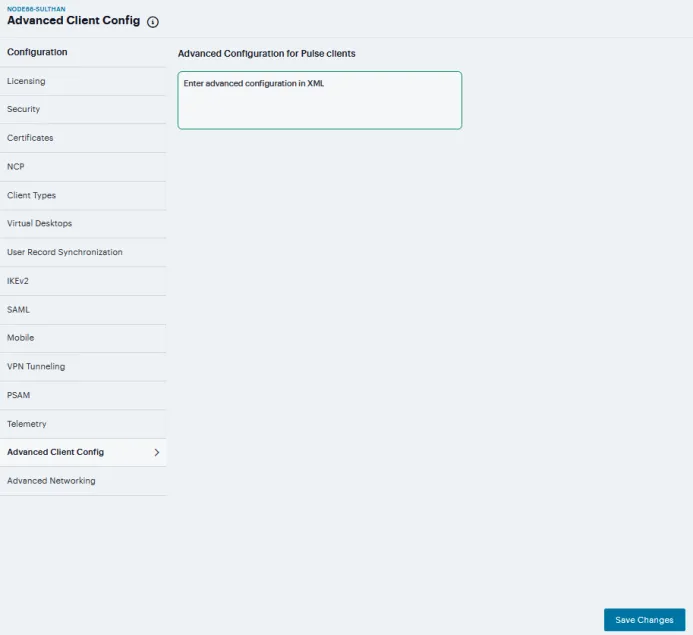

Navigate to System > Configuration > Advanced Client Configuration to display the configuration page.

Enter the following XML input in Advanced Configuration for Ivanti Secure Access Clients.

<advanced-config>
	<version> version </version>
	<desktop-client-config>
		<layer3-connection-config>
			<adapter-config>
				<ignore-tcp-mss>TRUE</ignore-tcp-mss>
			</adapter-config>
		</layer3-connection-config>
	</desktop-client-config>
</advanced-config>

Click Save Changes.

The advanced configuration setting "ignore-tcp-mss" is Layer3 Adapter configuration setting and this will be consumed by the Ivanti Secure Access client as part of the IpsecConfig.

This "ignore-tcp-mss" setting is applicable for the virtual adapter MTU calculation only for IPv4. By default, the setting is always false, and therefore the TCP MSS options are always considered for MTU by default. Admin has to explicitly set the ignore-tcp-mss setting to TRUE (case insensitive), to ignore TCP MSS.

Advanced Networking Configuration

The NTP, SNMP, Syslog, and Log archiving services are set to send the traffic through Management port by default. In case the Management port is not available, the traffic is routed through Internal port. Now, an administrator can modify the settings of NTP and other services to any physical inter-face.

The following procedure describes the steps to configure the ports for the services. Before you proceed, ensure the External and Management ports are enabled for use in the network settings.

To configure Service Traffic Port Options

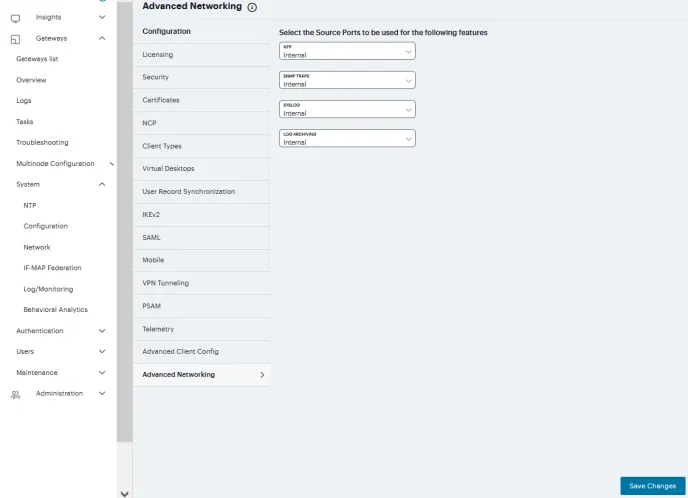

Navigate to System > Configuration > Advanced Networking.

For the individual service, select the required port from the drop-down list.

Click Save Changes.

In a cluster environment, when a node joins the cluster, configuration of the node is replaced with the configuration of other nodes in the cluster.

Log/Monitoring

The system generates event logs related to system performance, administrator actions, network communications, access management framework results, user sessions, and so forth. The system supports the following log collection methods:

Local log collector and log viewer.

Reporting to syslog servers.

Reporting to SNMP servers.

The following table lists the Event Log Severity Levels:

Severity Level	Description
Critical (level 10)	The system cannot serve user and administrator requests or loses functionality to a majority of subsystems.
Major (levels 8-9)	The system loses functionality in one or more subsystems, but users can still access the system for other access mechanisms.
Minor (levels 5-7)	The system encounters an error that does not correspond to a major failure in a subsystem. Minor events generally correspond to individual request failures.
Info (levels 1-4)	The system writes an informational event to the log when a user makes a request or when an administrator makes a modification.

In addition to managing system logs, you can use the admin console to configure collection of client-side logs, including:

Host checker

Windows Secure Application Manager

Java Secure Application Manager and Applet Rewriting

VPN Tunneling

Terminal Services

Virtual Desktops

Events to Log

To configure log event categories:

Select System > Log/Monitoring.

Click the Settings tab to display the configuration page.

Complete the configuration as described in table.

Click Save Changes.

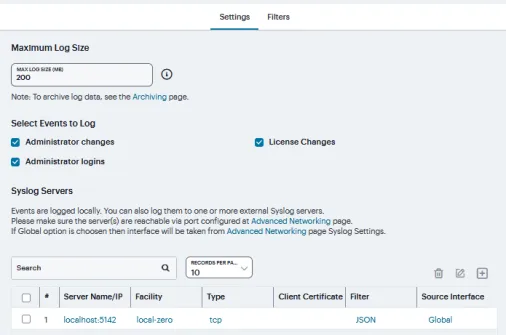

To configure log events for each local log category, you must perform this procedure on each local log tab: Events, User Access, and Admin Access.

The following table lists the Log Events Settings:

Settings	Guidelines
Maximum Log Size
Max Log Size	The range is 1- 200 MB and the maximum size is 200 MB for Virtual Appliances. The range is 1- 1024 MB and the maximum is 1GB/1024MB for ISA Hardware. The default is 200 MB. The default is a good choice for logs formatted with the Standard format. If you use a more verbose format, such as WELF, specify a larger value. When the local log reaches the maximum log size, the current data is rolled over to a backup log file. A new, empty, file is then created for all subsequent (new) log messages. The log viewer displays the most recent 5000 log messages (the display limit). If the current log file contains fewer than 5000 log messages, older log messages from the backup log file can be displayed, up to a total of 5000 log messages. This makes the log files appear as one, even though they are stored separately. When you save the log messages or use the FTP archive function, the backup log file is appended to the current log file and is then downloaded as one log file. If the log files are not archived or saved by the time they are rolled over again, the oldest log messages (saved in the backup log file) are lost.
Archiving	Click the Archiving link to display the configuration page for Archiving jobs, including log archiving.

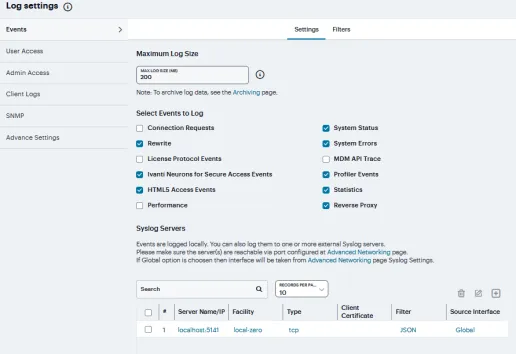

Select Events to Log - Events Tab
Connection Requests	Log events related to connection requests.
System Status	Log events related to changes in system status.
Rewrite	Log events related to rewrite policies.
System Errors	Log events related to system errors.
Statistics	Log user access statistics reported on the System > Log/Monitoring > Statistics tab. If you disable the Statistics option, the statistics are not written to the log file, but are still reported on the statistics page.
License Protocol Events	Log events related to licensing.
Reverse Proxy	Logs events related to reverse proxy information.
WAF Message

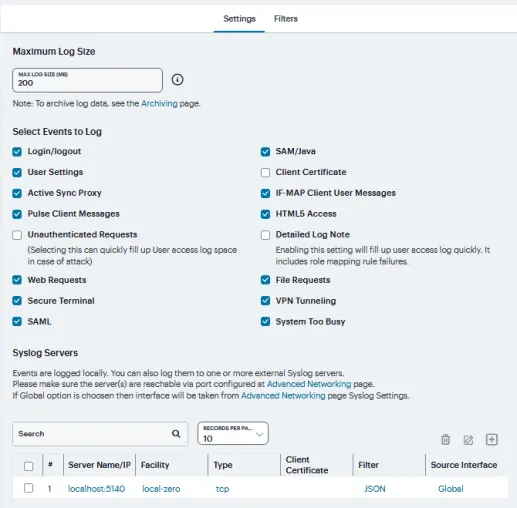

Select Events to Log - User Access Tab
Login/logout	Log events related to sign in and sign out.
SAM/Java	Log events related to user access to SAM/Java in the local log file.
User Settings	Log events related to changes to user settings in the local log file.
Client Certificate	Log events related to certificate security.
IF-MAP Client User Messages	Log events related to IF-MAP.
Ivanti Secure Access Client Messages	Log events related to Ivanti Secure Access clients.
HTML5 Access	Log events related to HTML5 access.
Web Requests	Log events related to user access to web.
File Requests	Log events related to user access to files.
Secure Terminal	Log events related to user access to secure terminal.
VPN Tunneling	Log events related to user access to VPN tunneling.
SAML	Log events related to user access to SAML.
System Too Busy	Log events related to ICS overload.
Unauthenticated Web Requests	Log events related to web requests before authentication. By default, this check box is disabled.
Select Events to Log - Admin Access Tab
Administrator changes	Log events related to configuration changes.
Administrator logins	Log events related to administrator access.
License changes	Log events related to licensing.
System Errors	Log events related to system errors.
Syslog Servers	Click '+' to add new logs. Complete the configuration as described in below rows. You can specify multiple syslog servers.
Server name/IP	Specify the fully qualified domain name or IP address for the syslog server. If you select TLS from the Type list, the server name must match the CN in the subjectDN in the certificate obtained from the server.
Facility	Select a syslog server facility level (LOCAL0-LOCAL7). Your syslog server must accept messages with the following settings: facility = LOG_USER and level = LOG_INFO.
Type	Select the connection type to the syslog server. You can select: UDP (User Datagram Protocol) - A simple non-secure transport model. TCP (Transmission Control Protocol) - A core protocol of the Internet Protocol suite (IP), but lacks strong security. TLS (Transport Layer Security) - Uses cryptographic protocols to provide a secure communication.
Client Certificate	(optional) If you select TLS from the Type menu and your remote syslog server requires client certificates, select the installed client certificate to use to authenticate to the syslog server. Client certificates are defined in the Configuration > Certificates > Client Auth Certificates page. Client certificates must be installed on the device before they can be used. There is no fallback if a connection type fails.
Filter	Select a filter format. Any custom filter format and the following predefined filter formats are available: Standard (default) - This log filter format logs the date, time, node, source IP address, user, realm, event ID, and message. WELF - This customized Web Trends Enhanced Log Format (WELF) filter combines the standard WELF format with information about the system realms, roles, and messages. WELF-SRC-2.0-Access Report - This filter adds access queries to the customized WELF filter. You can use this filter with NetIQ's SRC to generate reports on user access methods.
Source Interface	Select the source port type for the syslog server: Global External Internal Management Ensure the servers are reachable through port configured in the Advanced Networking page on the Admin UI.

Log Filters

If desired, you can create custom log collection filters to change the records displayed or exported. For example, it is common to see administrators use a filter for RADIUS accounting logs. This filter allows only the accounting log message, and it puts the entire message in a comma separated list. The order of the filtered message is: Date, Time, User, Realm, "List of Roles", NAS-ID, Acct-Status, Auth-Type, Attr-Value1, Attr-Value2, Attr-Value3.

Accounting attribute messages are different from authentication attribute messages in that the attribute name is not printed in the log message, but a comma is inserted for every attribute to be logged, even if it is not present.

To view the configuration of predefined log format filters:

Navigate to System > Log/Monitoring.

Click the Events / User Access / Admin Access tab.

Click the Filter tab to display the log filters page.

Click the hyperlinked name of the filter to display its configuration page. You cannot edit the predefined filter named Standard, but you may edit the predefined WELF filters and any other custom filters that appear in the list.

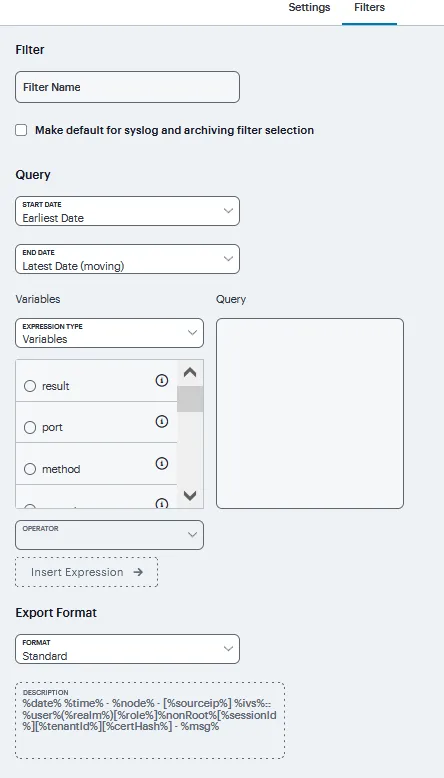

Click '+' to display the configuration page for creating new filter.

Complete the configuration as described in table.

Click Save Changes.

Settings	Guidelines
Filter Name	Specify a name that is helpful to you and other administrators in understanding usage for your custom filter.
Make default	Make the filter the default on syslog and archiving configuration pages.
Query
Start Date	Enter a start date. Click Earliest Date to write all logs from the first available date stored in the log file.
End Date	Enter an end date. Click Latest Date to write all logs up to the last available date stored in the log file.
Query	Use the Filter Variables Dictionary to insert query expressions in the Query box. Enclose the query value in single quotes. For example, insert the query expression sourceip=. Then complete the expression by adding the value '192.168.0.1'.
Export Format	Select an export format: Standard (default) - This log filter format logs the date, time, node, source IP address, user, realm, and message. WELF - This customized WebTrends Enhanced Log Format (WELF) filter combines the standard WELF format with information about the system realms, roles, and messages. Custom - Use the Standard as a template for your custom selection of columns to be included in exports (when log collections are saved to files).

Log query filters change only the data displayed (or rows exported). Log format filters change only the data displayed (or columns exported). Use of filters does not affect the log data that has been collected.

Client Side Log

Client-side logging is not enabled by default. If necessary, you can enable client-side logging to troubleshoot any client application issues.

To enable client side logging:

Select System > Log/Monitoring.

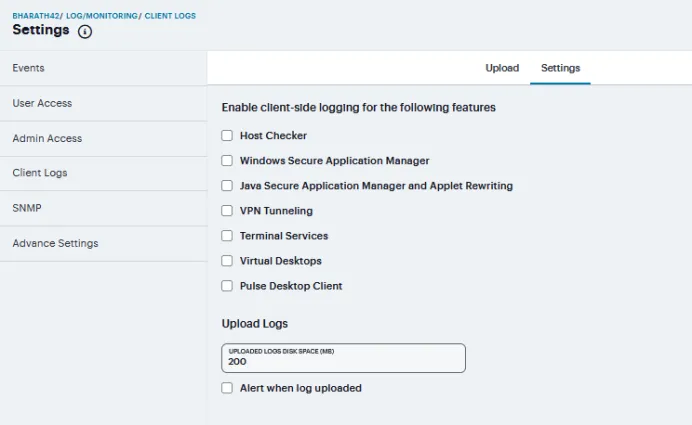

Click the Client Logs tab to display the configuration page. Complete the configuration as described in Table.

Click Save Changes.

Upload tab displays Uploaded Logs Details.

Settings	Guidelines
Host Checker	Select this option to enable client-side logging of Host Checker.
Windows Secure Application Manager	Select this option to enable client-side logging of PSAM.
Java Secure Application Manager and Applet Rewriting	Select this option to enable client-side logging of JSAM and applet.
VPN Tunneling	Select this option to enable client-side logging of VPN tunneling.
Terminal Services	Select this option to enable client-side logging of terminal services.
Virtual Desktops	Select this option to enable client-side logging of virtual desktops.
Ivanti Secure Access Desktop Client	Select this option to enable client-side logging of Ivanti Secure Access desktop clients.
Upload logs
Upload logs disk space (MB)	Specify the amount of disk space (in Megabytes) you want to allocate for uploaded client log files. You can allocate disk space from 0 to 200 MB.
Alert when log uploaded	Select this option to receive an alert message when an end user pushes a log file.

SNMP

If you prefer, you can use a third-party SNMP manager, such as HP OpenView, to monitor system health. The system supports SNMP v2c and SNMPv3. The system supports two users to be registered with an SNMP engine with different authentication and privilege settings.

To configure the SNMP agent:

Select System > Log/Monitoring.

Click the SNMP tab to display the SNMP configuration page.

Complete the configuration as described in Table.

Click Save Changes.

Settings	Guidelines

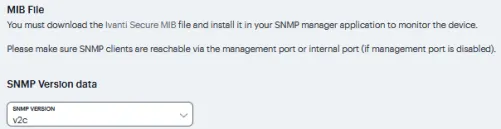

MIB File	Use the Ivanti MIB file link to download the device management information base MIB file. You add this file to your SNMP manager configuration.
SNMP Version	Select your SNMP server version: v2c v3
Agent Properties
SNMP Queries	Select to support SNMP queries. Selecting this option enables the SNMP Diagnostic Log utility in the Troubleshooting > Monitoring > Diagnostic Logs page.
SNMP Traps	Select to send SNMP traps. Selecting this option enables the SNMP Diagnostic Log utility in the Troubleshooting > Monitoring > Diagnostic Logs page.
System Name	Specify a system name.
System Location	Specify a location.
System Contact	Specify a system contact.
Community String	Required only for SNMPv2c. To query the system, your network management station must send it the community string. To stop the SNMP system, clear the community field.
SNMPv3 Configuration
Username	Specify the SNMPv3 username. The User-Based Security Model (USM) is the default Security Module for SNMPv3. The system supports two users to be registered with an SNMP engine. Editing the SNMPv3 user attributes overwrite any already registered SNMPv3 user. The SNMPv3 user must have read-only access on all MIBs supported by the system. SNMPv3 user configuration attributes can also be used for SNMP traps.
Security Level	SelectionAuth ProtocolAuth PasswordPriv ProtocolPriv PasswordNo Auth, NoPrivAuth, NoPrivAuth, Priv Select MD5 (HMAC-MD5-96) or SHA (HMAC-SHA-96). Enter an authentication password. The password can contain any ASCII characters and must be at least 8 characters in length. Select MD5 (HMAC-MD5-96) or SHA (HMAC-SHA-96). Enter an authentication password. The password can contain any ASCII characters and must be at least 8 characters in length. Select either CBC-DES or CFB-AES-128. -Enter a privacy password. The password can contain any ASCII characters and must be at least 8 characters in length.

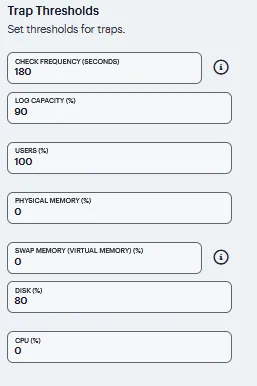

Trap Thresholds	Setting a threshold value to 0 disables that respective trap.
Check Frequency	Specify the frequency in seconds for sending traps. The default is 180 seconds.
Log Capacity	Specify the percent of log space used. The default is 90%.
Users	Specify the frequency in seconds for sending traps. The default is 180 seconds.
Physical Memory	Specify the percent of physical memory used. The default is 0 (not reported).
Swap Memory (Virtual Memory)	Specify the percent of swap memory used. The default is 0 (not reported). We recommend you monitor swap memory to alert you to potential memory issues. The threshold for traps for physical memory usage might be reached even if the system is not experiencing any difficulties.
Disk	Specify the percent of disk utilization. The default is 80%.
CPU	Specify the percent of CPU utilization. The default is 0 (not reported).
Optional Traps
Critical Log Events	Send traps when the system logs critical events.
Major Log Events	Send traps when the system logs major events.
Save SNMP Settings	Click Save Changes to update the SNMP agent configuration. The page is refreshed and displays the SNMP engine ID. If the configuration is changed to move from SNMP v2c to SNMP v3, the system generates and displays two engine IDs.

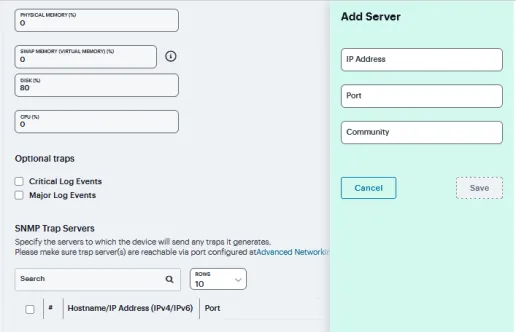

SNMP Servers
Hostname / IP address	Specify the hostname or IP address for the SNMP servers to which the system will send any traps it generates.
Port	Specify the port for the SNMP server. Typically, SNMP uses port 162.
Community (v2c) / User (v3)	Specify the community/user string (if necessary).

Keep the following configuration tips in mind when you configure your SNMP manager to listen for this SNMP agent:

Add the Ivanti MIB file to the SNMP manager configuration.

If using SNMPv2c, the community string configuration for the SNMP manager and SNMP agent must match.

If using SNMPv3, the SNMPv3 user configuration for the SNMP manager and the SNMP agent must match.

If using SNMPv3, you must specify the Authoritative Engine ID for SNMPv3 traps that was generated when you saved the SNMP agent configuration.

Advanced Settings

This option helps to configure fault tolerance on each configured TCP and TLS syslog server available. Fault tolerance is supported only for TCP and TLS syslog servers. UDP syslog servers cannot be configured for fault-tolerance. This functionality helps the syslog server to recover the logs lost during a disconnect. The administrator can configure fault-tolerance on syslog servers by enabling this option from the admin UI. ICS/IPS reads the lost pending logs during a disconnect from the log disk and transports them to the syslog server on a reconnect. Fault tolerance is supported only for the syslog servers configured under the following log-types:

Events

User Access

Admin Access

Fault tolerance is node-specific. In case of clusters, the setting needs to be enabled/disabled by logging into each of the cluster members. Fault tolerance is supported only for TCP and TLS syslog servers. UDP syslog servers cannot be configured for fault tolerance.

To configure advance settings to a TCP and TLS syslog server:

Navigate to System > Log/Monitoring.

Click the Advance Settings tab to display the configuration page.

Complete the configuration as described in Table.

Click Save changes.

This feature is limited to configuring fault tolerance settings of an existing syslog server; and cannot be used to create or delete a new syslog server.

Behavioral Analytics

Behavioral Analytics feature analyzes user's action along with other context data to derive conclusions about any anomalous activities. It provides information/visibility based on real time user or device context thus helping in advanced attack detection and helps in proactive policy-based enforcement.

The Behavioral Analytics feature addresses the following types of anomaly detection:

User/device is prompted for second level of authentication based on the threat profile determined for the corresponding user/device. Below are some scenarios where second level of authentication is required:

User authenticating from new device: This is detected by using the device MAC address.

User authenticating from new location: Location details are obtained by using the location configurations.

Benefits

ICS monitors the traffic from users and helps in determining the possible anomalous activities such as:

If the user is authenticating from a new device / new location.

If the device traffic is different from previous instances.

Data collected as part of Behavior Analytics is stored so that it can be used later for determining the anomalies.

To enable behavioral analytics:

Log into the NSA as a Tenant Admin.

From the Ivanti Connect Secure menu, click the Gateways > Gateways List and then select any standalone ICS Gateway or Cluster node.

Navigate to System > Behavioral Analytics > Configuration.

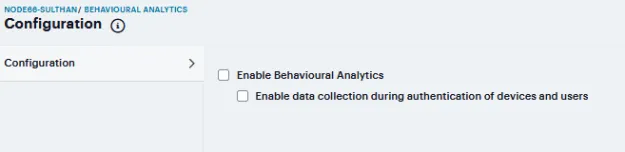

Under Configurations, select Enable Behavioral Analytics.

For enabling Adaptive Authentication, select Enable data collection during authentication of devices and users.

Click Save Changes.

In case you have a Fresh Installation of ICS, then it will NOT have UEBA package by default with it. Please add the UEBA package before using Adaptive Authentication.
