Ivanti Connect Secure Gateway Deployment

13 min

The following sections describe the new parameters that are added for the deployment of Ivanti Connect Secure VA on VMware, Amazon Web Services cloud and Microsoft Azure cloud.

Deploying on VMware

Deploying on Hyper-V

Deploying on KVM

Deploying on AWS Cloud

Deploying on Azure Cloud

Deploying on Google Cloud Platform

Deploying on VMware

For a detailed ICS VA deployment procedure, refer to Virtual Appliance Deployment Guide at https://www.ivanti.com/support/product-documentation.

This below table describes the new parameters that are added in the script file create-va.pl, which is included in your ISA-V package.

Parameter	Description
New Parameters
registrationCode	The registration code, which is generated during the ICS gateway registration on NSA. Example, KyZR6YDL8
registrationFQDN	The registration FQDN name, which is generated during the ICS gateway registration on NSA. Example, auto.lark.pzt.dev.perfsec.com
enableproxy	Default is set to n.
proxyHost	The proxy server name.
proxyPort	The port number of the proxy server. Example, 8080
proxyUsername	The username of the proxy server. Example, usr
proxyPassword	The password of the proxy server. Example, pxx124
registerNetworkInterface	The interface through which the gateway registers with NSA. Example, external

Deploying on Hyper-V

For a detailed ICS on Hyper-V deployment procedure, refer to ICS Gateway Deployment on Hyper-V Platform at https://www.ivanti.com/support/product-documentation.

Deploying on KVM

For a detailed ICS on KVM deployment procedure, refer to ICS Gateway Deployment on KVM Platform at https://www.ivanti.com/support/product-documentation.

Deploying on AWS Cloud

For a detailed ICS VA on AWS Cloud deployment procedure, refer to Virtual Appliance on Amazon Web Services Deployment Guide at https://www.ivanti.com/support/product-documentation.

Ivanti Connect Secure accepts the following parameters as provisioning parameters in the XML format.

<pulse-config>

		<primary-dns><value></primary-dns>

		<secondary-dns><value></secondary-dns>

		<wins-server><value></wins-server>

		<dns-domain><value></dns-domain>

		<admin-username><value></admin-username>

		<admin-password><value></admin-password>

		<cert-common-name><value></cert-common-name>

		<cert-random-text><value></cert-random-text>

		<cert-organisation><value></cert-organisation>

		<config-download-url><value></config-download-url>

		<config-data><value></config-data>

		<auth-code-license><value></auth-code-license>

		<enable-license-server><value></enable-license-server>

		<accept-license-agreement><value></accept-license-agreement >

		<enable-rest><value></enable-rest>

		<registration-code> 1grkL2Xbr </registration-code>

		<registration-fqdn>auto.toad.pzt.dev.perfsec.com</registration-fqdn>

		<enable-proxy>n</enable-proxy>

		<proxy-host></proxy-host>

		<proxy-port></proxy-port>

		<proxy-username></proxy-username>

		<proxy-password></proxy-password>

		<register-network-interface>external</register-network-interface>

</pulse-config>

The below table describes the new parameters that are added in the XML file.

Parameter	Type	Description
New Parameters
registrationCode	string	The registration code, which is generated during the ICS gateway registration on NSA. Example, KyZR6YDL8
registrationFQDN	string	The registration FQDN name, which is generated during the ICS gateway registration on NSA. Example, sample.domain.com
enableproxy	string	Default is set to n.
proxyHost	string	The proxy server name.
proxyPort	integer	The port number of the proxy server. Example, 8080
proxyUsername	string	The username of the proxy server. Example, usr
proxyPassword	string	The password of the proxy server. Example, pxx124
registerNetworkInterface	string	The interface through which the gateway registers with NSA. Example, external

The XML parsing fails if the following characters are used in the strings: - """ - "‘" - "<" - ">" - "&"

System Operations

The AWS portal provides Start, Restart Stop and Terminate operations to control the Virtual Appliance connection.

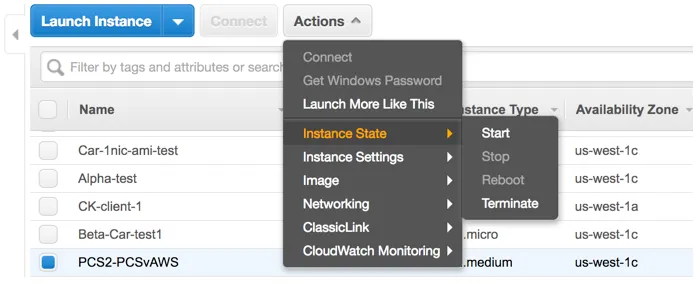

On the AWS portal, select AWS Services > Launch Instance. From the Actions menu, select Instance State.

Click Start to start a VM

Click Stop to stop the VM

Click Restart to restart the VM

Click Terminate to terminate the VM

Troubleshooting

Ivanti Connect Secure emits booting logs at a specified storage. You can check the storage details of the boot diagnostic logs as shown below:

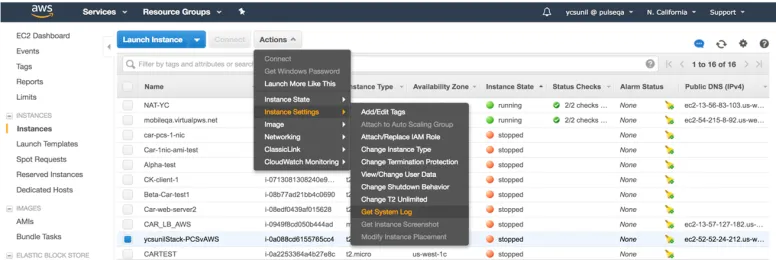

Select AWS Services > Instances > Launch Instance.

From the list displayed, select Instance Settings > Get System Log.

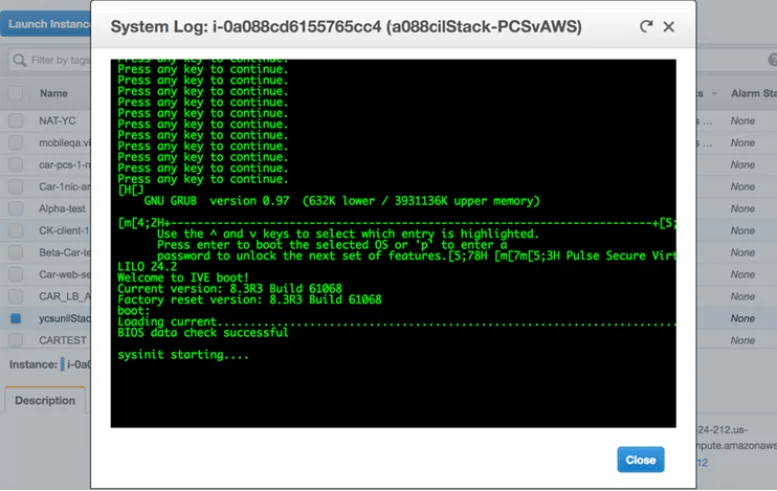

The system logs window is displayed.

Frequently Asked Questions

FAQ1: Packets transmitted from ICS Internal Interface are getting dropped by AWS Virtual Gateway in L3 traffic.

Cause: The packets are dropped because the source IP and MAC address are not matching and the transit routing is not supported.

Solution: Ivanti Connect Secure must be able to SNAT these packets to the Internal interface IP which belongs to a subnet within the VPC.

To NAT endpoint tunnel IP to Internal interface IP, do the following:

Navigate to System > Network > VPN Tunneling.

Enable Source NATTING. By default, Source NATTING is disabled.

Deploying on Azure Cloud

For a detailed deployment procedure, refer to Virtual Appliance on Microsoft Azure Deployment Guide at https://www.ivanti.com/support/product-documentation.

Ivanti Connect Secure accepts the following parameters as provisioning parameters in the XML format.

"<pulse-config>

	<primary-dns>8.8.8.8</primary-dns>

	<secondary-dns>8.8.8.9</secondary-dns>

	<wins-server>1.1.1.1</wins-server>

	<dns-domain>psecure.net</dns-domain>

	<admin-username>admin</admin-username>

	<admin-password>password</admin-password>

	<cert-common-name>va1.psecure.net</cert-common-name>

	<cert-random-text>fdsfpisonvsfnms</cert-random-text>

	<cert-organisation>Psecure Org</cert-organisation>

	<config-download-url><value></config-download-url>

	<config-data><value></config-data>

	<auth-code-license><value></auth-code-license>

	<enable-license-server>n</enable-license-server>

	<accept-license-agreement>n</accept-license-agreement>

	<enable-rest>n</enable-rest>

	<registration-code> 1grkL2Xbr </registration-code>

	<registration-fqdn>auto.toad.pzt.dev.perfsec.com</registration-fqdn>

	<enable-proxy>n</enable-proxy>

	<proxy-host></proxy-host>

	<proxy-port></proxy-port>

	<proxy-username></proxy-username>

	<proxy-password></proxy-password>

	<register-network-interface>external</register-network-interface>

</pulse-config>"

The below table describes the new parameters that are added in the XML file.

Parameter	Type	Description
New Parameters
registrationCode	string	The registration code, which is generated during the ICS gateway registration on NSA. Example, KyZR6YDL8
registrationFQDN	string	The registration FQDN name, which is generated during the ICS gateway registration on NSA. Example, sample.domain.com
enableproxy	string	Default is set to n.
proxyHost	string	The proxy server name.
proxyPort	integer	The port number of the proxy server. Example, 8080
proxyUsername	string	The username of the proxy server. Example, usr
proxyPassword	string	The password of the proxy server. Example, pxx124
registerNetworkInterface	string	The interface through which the gateway registers with NSA. Example, external

The XML parsing fails if the following characters are used in the strings: - """ - "‘" - "<" - ">" - "&"

System Operations

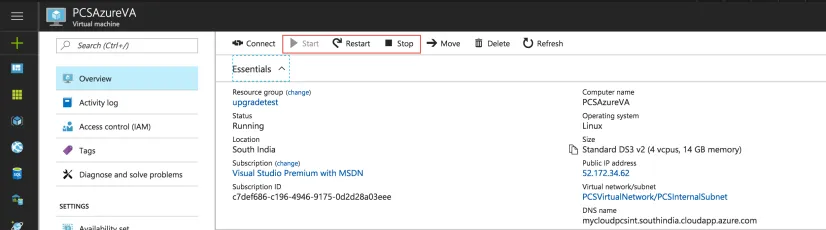

The Azure VA portal provides Start, Restart and Stop operations to control the Virtual Appliance connection.

On the Azure portal top menu bar:

Click Start to start a VM

Click Stop to stop the VM

Click Restart to restart the VM

The corresponding CLI commands are:

Start a VM

az vm start --resource-group myResourceGroup --name myVM

Stop a VM

az vm stop --resource-group myResourceGroup --name myVM

Restart a VM

az vm restart --resource-group myResourceGroup --name myVM

Deploying on Google Cloud Platform

For a detailed ICS on GCP deployment procedure, refer to ICS Gateway Deployment on Google Cloud Platform at https://www.ivanti.com/support/product-documentation.
