Deploying on Google Cloud Platform

19 min

Supported Platforms Systems

This section helps you in choosing the instance types that should be deployed with Ivanti Connect Secure.

ISA4500-V

ISA6500-V

ISA8500-V

For more details, see ISA VA Supported Platforms.

Prerequisites and System Requirements

To deploy the Ivanti Connect Secure Virtual Appliance on GCP, you need the following:

Google Cloud Platform account

Access to the GCP portal (https://cloud.google.com/ )*

Ivanti Connect Secure Virtual Appliance Image

Ivanti Connect Secure licenses **

Ensure that you have enough IP address in your region

Ensure that you have already created VPC network for each interface, as this is required while you deploy VM instances.

Before you Begin

Before you start, make sure you have the following information and files:

Signature database file : https://pulsezta.blob.core.windows.net/gateway/nsa/db.der

To create a GCP image : https://pulsezta.blob.core.windows.net/gateway/nsa/templates/GCP/<package name>/ivanti-ics-image.zip

Downloading the GCP Virtual Machine Image

Download ICS image which is in zip format from Ivanti support site. Unzip the file to a location that is accessible from Google Cloud Platform.

Uploading the GCP Virtual Machine Image onto the Google Cloud Platform

To upload a GCP Gateway virtual machine image into Google Cloud Platform:

Access the Google Cloud Platform Management Portal, either from a client or a web browser, and log in using your Google Cloud Platform credentials.

In the Google Cloud Platform console, select your required project from the pull-down list on the title bar. For example:

Click the Navigation menu, and then select Cloud Storage > Browser.

A list of GCP storage buckets appears.

Select the bucket into which you wish to place the GCP image.

A page listing the current contents of the bucket appears.

(Optional) Navigate to the required folder within the bucket.

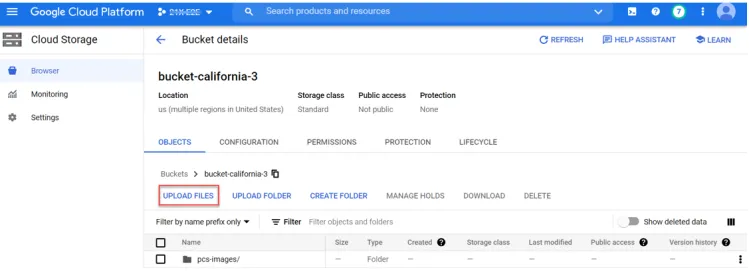

Click Upload Files. For example:

An upload dialog appears.

Select the ICS Gateway GCP virtual machine image .tar file from your local workstation (see Before you begin), and click Open.

If you want to use the provided YAML templates to automate the creation of the GCP image (see Creating a GCP Image Using a Script/Template), select these in addition to the image archive.

The image archive and any selected template files are added to the bucket.

Wait until the upload completes. This may take several minutes.

Start a command line session from the title bar. For example:

A command line session starts.

Navigate to the project folder.

Copy the db.der file extracted from the ICS image .zip file, to the current project directory.

Create an image using the following command using GCP CLI:

gcloud compute images create <image_name> --source-uri=gs://<bucket_name>/<optional_path>/<image_name>.tar.gz --signature-database-file=db.der --guest-os-features MULTI_IP_SUBNET,UEFI_COMPATIBLE,GVNIC

For example:

gcloud compute images create pcs109 --source-uri=gs://bucket-california/pcs_images/ICS-25.13R1-25.13R1-145.1.tar.gz --signature-database-file=db.der --guest-os-features MULTI_IP_SUBNET,UEFI_COMPATIBLE,GVNIC

You can also create an image using a script/template (see Creating a GCP Image Using a Script/Template)

You can now create a VM instance of the uploaded GCP image. To do this, either:

Perform the task manually, see Creating a VM Instance of the Uploaded GCP Image Manually.

Perform the task with a script/template, see Creating a VM Instance of the Uploaded GCP Image Using a Script/Template.

Creating a GCP Image Using a Script/Template

Download the required template archive file to your local workstation.

Unpack the downloaded archive file to a location that is accessible from Google Cloud Platform. Each archive contains three files present in one respective directory, i.e.:

ivanti-ics-image.jinja

ivanti-ics-image.scheme

ivanti-ics-image.yaml

Edit the YAML file properties section to reflect your project requirements.

An example of an existing VPC YAML file is provided here:

imports:
- path: ivanti-ics-image.jinja

resources:
- name: ivanti-custom-secure-image
type: ivanti-ics-image.jinja
properties:
image_name: icsgcp123
bucket_name: bucket-california
image_file: ICS-25.13R1-25.13R1-145.1.tar.gz
# Paste your Base64 encoded file lines directly here:
db_content: <BASE64_STRING_FROM_DB.DER>

Save the YAML file.

On the Google Cloud Platform, start a command line session from the title bar. For example:

A command line session starts.

Within the project folder, change to deploymentmanager folder.

Create a new folder and change to the new folder and copy the three script files to this folder.

Select the required project:

gcloud config set project <project-name>

Create the GCP image using the following command:

gcloud deployment-manager deployments create <image-name> --config <yaml_file>

For example:

gcloud deployment-manager deployments create icsgcp123 --config ivanti-ics-image.yaml

Creating a VM Instance of the Uploaded GCP Image Manually

This section describes how to manually create a virtual machine instance of the ICS Gateway image inside Google Cloud Platform. You can also perform this process automatically using a script/template, see Creating a VM Instance of the Uploaded GCP Image Using a Script/Template.

Click the Navigation menu, and then select Compute Engine > Images.

The Images page appears. For example:

Locate the new image in the list of images.

At the end of the image entry, click the action menu and select Create Instance.

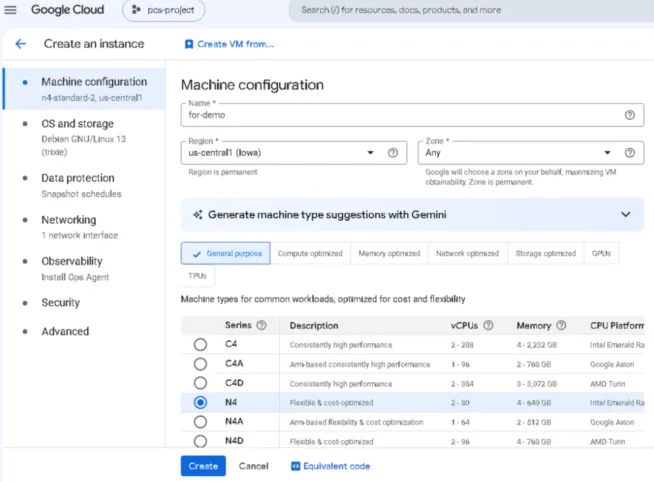

The Create Instance page appears. For example:

On the Create Instance page: For more information, see table below.

General-Purpose	CPUs / Memory	ISA Model	Disk Space
N4 (5th Gen Intel Xeon Scalable processor)	n4-standard-4 (4 vCPU, 16 GB)	ISA4500V	80 GB
	n4-standard-8 (8 vCPU, 32 GB)	ISA6500V	80 GB
	n4-standard-16 (16 vCPU, 64 GB)	ISA8500V	80 GB

Enter a Name for the new instance.

Select a Region and Zone.

Under Machine configuration:

For Series, select n4-standard-4.

For Machine Type, select a minimum of n4-standard-4.

For Boot Disk, confirm that the correct image is already selected.

For Firewall, select the required HTTP/HTTPS options.

Under Security → Shielded VM

Select Turn on Secure Boot

Select Turn on vTPM

Deselect Turn on Integrity Monitoring

Expand the Management, security, disks, networking, sole tenancy options.

Select the Management tab.

Under Metadata:

For Key, enter pulse-config.

For Value, paste the text of the metadata file..

Select the Networking tab.

Under Network interfaces, click the Edit icon to change the default network interface selection.

The Network interface options appear.

Under Network interface, specify a private (internal) network interface:

For Network, select the required private VPC.

For Subnetwork, select the required subnetwork.

Click Done to confirm the settings for the private network interface.

Under Network interfaces, click Add network interface.

The Network interface options appear.

Under Network interface, specify a public (external) network interface:

For Network, select the required public VPC.

For Subnetwork, select the required subnetwork.

Click Done to confirm the settings for the public network interface.

(Optional) Click Add network interface and specify a management network interface.

Click Create to confirm the settings and instantiate a VM instance of the image.

The VM Instances page appears. This page shows the new VM instance of the image. For example:

On the VM Instances page, wait until the creation of the VM instance completes. This may take several minutes.

After the VM instance is created, click on it in the list of VM instances.

The VM instance details page appears for the instance.

Confirm the details for the VM instance, including the number of network interfaces.

Make a note of the public IP address of the EXT interface (typically, this is nic1. This is required inside nSA.

Under Network interfaces, confirm that the firewall settings from your VPCs are present for your specified network interfaces:

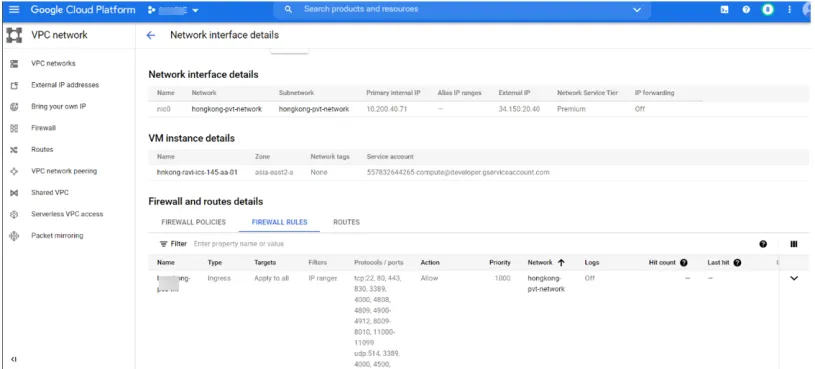

Click nic0. A summary page for this network interface appears.

Under Firewall and route details, click the Firewall Rules tab and confirm that the following firewall rules are defined.

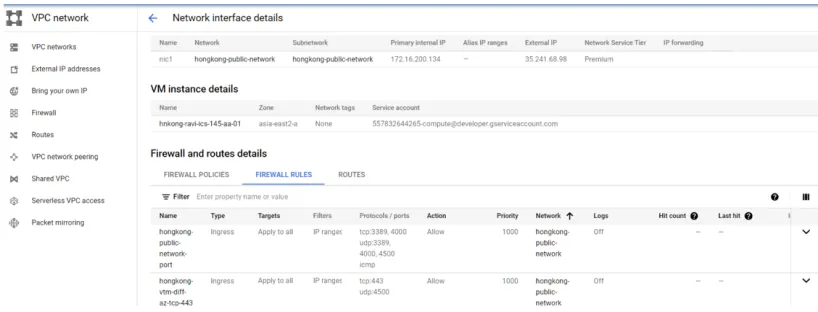

Click nic1. A summary page for this network interface appears.

Under Firewall and route details, click the Firewall Rules tab and confirm that the following firewall rules are defined.

(Optional) Click nic2. A summary page for this optional network interface appears.

Under Firewall and route details, click the Firewall Rules tab and confirm that the following firewall rules are defined.

The VM instance details* page, click Connect to serial console

A console monitor view (in a separate browser tab) shows the ongoing boot-up process for the instance.

Wait until the instance boot up is complete, and shows a screen similar to the following:

You can then complete this process by updating the Gateway details on the nSA Controller, see Completing the Configuration of the nSA Controller.

Creating a VM Instance of the Uploaded GCP Image Using a Script/Template

This section describes how to automatically create a virtual machine instance of the ICS Gateway image inside Google Cloud Platform using a script/template. You can also perform this process manually, see Creating a VM Instance of the Uploaded GCP Image Manually.

Ivanti provides YAML-based templates to create an instance of the ICS Gateway image in the following configurations:

Two network interfaces in an existing VPC.

Three network interfaces in an existing VPC.

Download:

https://pulsezta.blob.core.windows.net/gateway/nsa/templates/GCP/21-12-145/ivanti-ics-2-nics-existing-vpc.zip

https://pulsezta.blob.core.windows.net/gateway/nsa/templates/GCP/21-12-145/ivanti-ics-3-nics-existing-vpc.zip

Two network interfaces in a new VPC.

Three network interfaces in a new VPC.

Download:

https://pulsezta.blob.core.windows.net/gateway/nsa/templates/GCP/21-12-145/ivanti-ics-2-nics-new-vpc.zip

https://pulsezta.blob.core.windows.net/gateway/nsa/templates/GCP/21-12-145/ivanti-ics-3-nics-new-vpc.zip

To use a template:

Download the required template archive file to your local workstation.

Unpack the downloaded archive file to a location that is accessible from Google Cloud Platform. Each archive contains three files. These files should be present in one respective directory. For example, for the three-interface (existing VPC) version of the archive:

ivanti-ics-2-nics-existing-vpc.jinja

ivanti-ics-2-nics-existing-vpc.scheme

ivanti-ics-2-nics-existing-vpc.yaml

Edit the YAML file properties section to reflect your project and instance requirements, including the user_data property.

An example of an existing VPC YAML file is provided here:

imports: - path: ivanti-ics-3-nics-existing-vpc.jinja resources: - name: my-vm properties: project: ics-project email: [email protected] machinetype: n4-standard-4 region: asia-south1 zone: asia-south1-b image: icsgcp123 int_network: vpc-network-private-abcdef ext_network: vpc-network-public-abcdef mgmt_network: vpc-network-mgmt-abcdef int_subnetwork: vpc-asia-south1-b-ics-int-port ext_subnetwork: vpc-asia-south1-b-ics-ext-port mgmt_subnetwork: vpc-asia-south1-b-ics-mgmt-port user_data: <pulse-config><primary-dns>8.8.8.8<\primary-dns> ... type: ivanti-ics-3-nics-existing-vpc.jinja enableSecureBoot: true enableVtpm: true enableIntegrityMonitoring: false

The following table lists all possible template properties and their meaning:

Property	Description
project	Name of the Project
email	Registered service account email address
region	The name of the region in which you want to deploy your VM instance
zone	The name of the zone in which you want to deploy your VM instance
image	Virtual machine image name
machine_type	N4-standard machine type
int_network	VPC network name for internal network
ext_network	VPC network name for external network
mgmt_network	VPC network name for management network
int_subnetwork	Subnet name for internal VPC
ext_subnetwork	Subnet name for external VPC
mgmt_subnetwork	Subnet name for management VPC
user_data	The Gateway config file downloaded. In User data, <networkConnection>v4</networkConnection> parameter can be configured as follows: v4 : IPv4 addresses are allowed to configured (Default).

Save the YAML file.

On the Google Cloud Platform, start a command line session from the title bar. For example:

A command line session starts.

Within the project folder, change to deploymentmanager folder.

Create a new folder and change to the new folder and copy the three script files to this folder.

Select the required project:

gcloud config set project <project-name>

Deploy the VM using the following command:

gcloud deployment-manager deployments create <vm-name> --config <yaml_file>

For example:

gcloud deployment-manager deployments create vm-gcp-123 --config ivanti-ics-3-nics-existing-vpc.yaml

Wait until the command completes.

On the VM Instances page, click on the new VM in the list of VM instances.

The VM instance details page appears for the instance.

Deploying ICS using Terraform Template

This section describes how to install terraform template and deploy ICS on GCP with 2 NICs and 3 NICs.

Copy variables, base_setup_tf and ics_deploy scripts to a linux m/c installed with terraform. Go to the Terraform website to install Terraform on a Linux VM of your choice at usr/local/bin.

Create base_setup directory and copy base_setup.tf and variables.tf to it. Customize and set the variables in variables.tf file based on the requirement.

Example: Region, AMI-id, VPC name, subnet IP address details, instance name etc.

cd to base_setup directory and run terraform apply.

linux# terraform apply

Create ics_deploy directory and copy ics_deploy and variables.tf to it

Run following command:

terraform apply -input=false -auto-approve -var "instance_name=gcp-test-instance-1" -var "image_name=icsgcp386"

Before running the script, user has to create an image in the GCP cloud in the name of icsgcp386 (as shown above)

Downloading Terraform Template File

To download Terraform Template zip file:

Navigate to Security> Ivanti Connect Secure (ICS, Pulse Connect Secure) > Downloads > Pulse Secure > Pulse Connect Secure > Cloud Templates.

Under Current and Supported Releases, select the Template file and Download. For example, ps-ics-terraform_templates-9.1Rx_22.Rx-2.0.zip.

Ivanti Connect Secure Provisioning Parameters

Provisioning parameters are those parameters which are required during the deployment of a virtual appliance. Ivanti Connect Secure accepts the following parameters as provisioning parameters in the XML format.

<pulse-config>
<primary-dns><value></primary-dns>
<secondary-dns><value></secondary-dns>
<wins-server><value></wins-server>
<dns-domain><value></dns-domain>
<admin-username><value></admin-username>
<admin-password><value></admin-password>
<cert-common-name><value></cert-common-name>
<cert-random-text><value></cert-random-text>
<cert-organisation><value></cert-organisation>
<config-download-url><value></config-download-url>
<config-data><value></config-data>
<auth-code-license><value></auth-code-license>
<enable-license-server><value></enable-license-server>
<accept-license-agreement><value></accept-license-agreement >
<enable-rest><value></enable-rest>
<registration-code> 1grkL2Xbr </registration-code>
<registration-fqdn>auto.toad.pzt.dev.perfsec.com</registration-fqdn>
<enable-proxy>n</enable-proxy>
<proxy-host></proxy-host>
<proxy-port></proxy-port>
<proxy-username></proxy-username>
<proxy-password></proxy-password>
<register-network-interface>external</register-network-interface>
</pulse-config>

The below table depicts the details of the xml file.

#	Parameter Name	Type	Description
1	wins-server	IP address	Wins server for Ivanti Connect Secure
2	dns-domain	string	DNS domain of Ivanti Connect Secure
3	cert-common-name	string	Common name for the self-signed certificate generation. This certificate is used as the device certificate of Ivanti Connect Secure Random text for the self-certificate generation Organization name for the self-signed certificate generation
4	cert-random-text	string
5	cert-organization	string
6	config-download-url	String URL	Http based URL where XML based Ivanti Connect Secure configuration can be found. During provisioning, Ivanti Connect Secure fetches this file and comes up with preloaded configuration. XML based configuration can be present in another VM in AWS cloud or at corporate network which is accessible for Ivanti Connect Secure through site to site VPN between AWS and corporate data center
7	config-data	string	base64 encoded XML based Ivanti Connect Secure configuration
8	auth-code-license	string	Authentication code that needs to be obtained from Ivanti
9	enable-license-server	string	If set to ‘y’, ICS will be deployed as a License server. If set to ‘n’, ICS will be deployed as a normal server.
10	accept-license-agreement	string	This value is passed to the instance for configuration at the boot time. By default, this value is set to “n”. This value must be set to “y”.
11	enable-rest	string	If set to ‘y’, REST API access for the administrator user is enabled.

In the above list of parameters, primary dns, dns domain, admin username, admin password, cert-random name, cert-random text, cert-organization and accept-license-agreement are mandatory parameters. The other parameters are optional parameters.

The XML parsing fails if the following characters are used in the strings:

Ivanti Connect Secure supports zero touch provisioning. This feature can detect and assign DHCP networking settings automatically at the Ivanti Connect Secure boot up. The Ivanti Connect Secure parameters should be set to null in order to fetch the networking configuration automatically from the DHCP server.

The below table describes the new parameters that are added in the XML file and these are applicable for nSA-managed 25.1.x versions.

Parameter	Type	Description
registrationCode	string	The registration code, which is generated during the ICS gateway registration on nSA. Example: KyZR6YDL8
registrationFQDN	string	The registration FQDN name, which is generated during the ICS gateway registration on nSA. Example: sample.domain.com
enableproxy	string	Default is set to n.
proxyHost	string	The proxy server name.
proxyPort	integer	The port number of the proxy server. Example: 8080
proxyUsername	string	The username of the proxy server. Example,:usr
proxyPassword	string	The password of the proxy server. Example: pxx124
registerNetworkInterface	string	The interface through which the gateway registers with nSA. Example: external
