Amazon Web Services Amazon Inspector Connector User Guide

13 min

Overview

Amazon Inspector allows users to ingest Amazon Inspector data from their AWS cloud instance. Amazon Inspector tests the network accessibility of Amazon EC2 instances and the security of applications that run on those instances. Amazon Inspector assesses applications for exposure, vulnerabilities, and deviations from best practices. After performing an assessment, Amazon Inspector produces a detailed list of security findings organized by severity level. This connector is specifically designed for the latest Amazon Inspector product, not the classic version.

This connector pulls security-findings data based on the assessments configured on the AWS account. The data from Amazon Inspector scans is pulled into Ivanti Neurons for RBVM and can be used to prioritize and remediate those findings.

Connector Configuration

Prerequisites

An active subscription to Ivanti Neurons for RBVM.

An active subscription to Amazon Inspector.

AWS Region of the selected Amazon Inspector instance.

Access Key and associated Secret Key for AWS User.

More details on Amazon Inspector can be found here: What is Amazon Inspector? - Amazon Inspector

User Setup

To set up the connector, the user needs API access to an AWS account with full access to the Amazon Inspector service. The user needs the following permissions:

AmazonInspectorFullAccess: Have an AWS admin provide AmazonInspectorFullAccess permissions to your AWS User ID.

AWS Amazon Inspector uses the service-linked role named AWSServiceRoleForAmazonInspector. The AWSServiceRoleForAmazonInspector service-linked role trusts Amazon Inspector to assume the role.

The role’s permissions policy allows Amazon Inspector to complete the following action on the specified resources:

Action: iam:CreateServiceLinkedRole on arn:aws:iam::*:role/aws-service-role/inspector.amazonaws.com/AWSServiceRoleForAmazonInspector

To successfully create the AWSServiceRoleForAmazonInspector role, the IAM identity (user, role, or group) used when working with Amazon Inspector must have the required permissions. To grant the required permissions, attach the AmazonInspectorFullAccess managed policy to the IAM user, group, or role.

Connections

The following API calls are performed during a connector run to pull security vulnerabilities from Amazon Inspector into Ivanti Neurons.

API Type	Endpoint
Get Vulnerability Details	/findings/list

Platform Setup

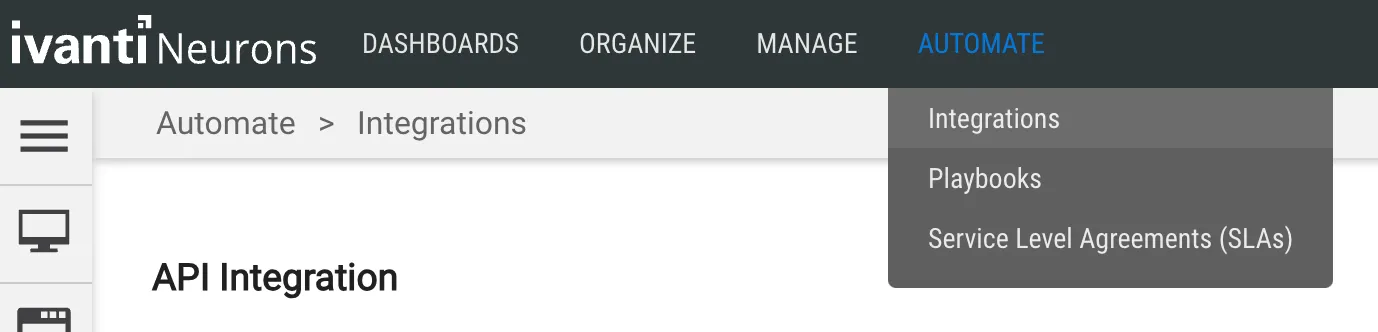

When logged into the platform, navigate to the Automate > Integrations page.

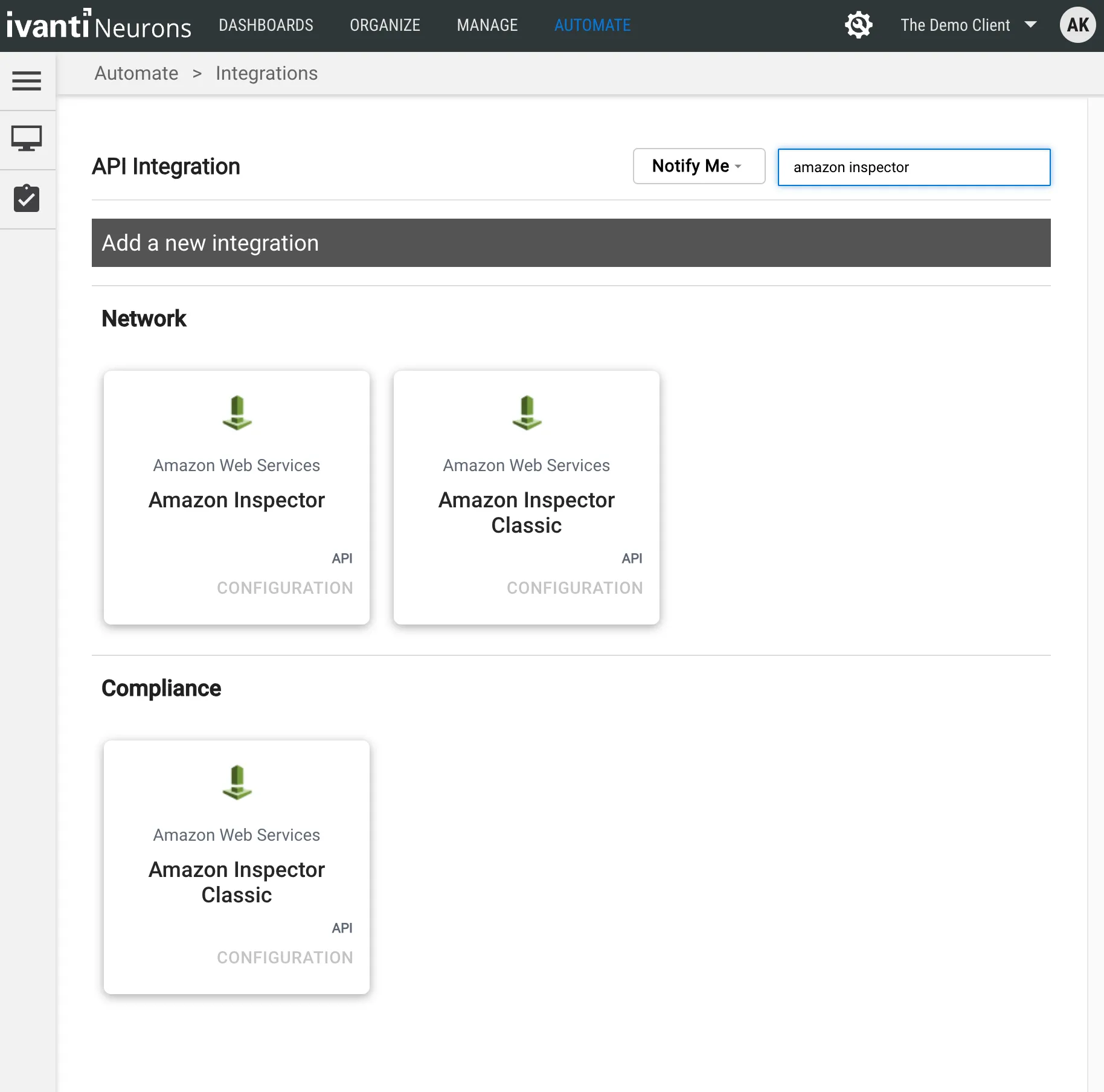

Using the search bar in the upper-right corner of the Integrations page, type Amazon Inspector to find the connector. Choose the one that says Amazon Inspector, not the classic version.

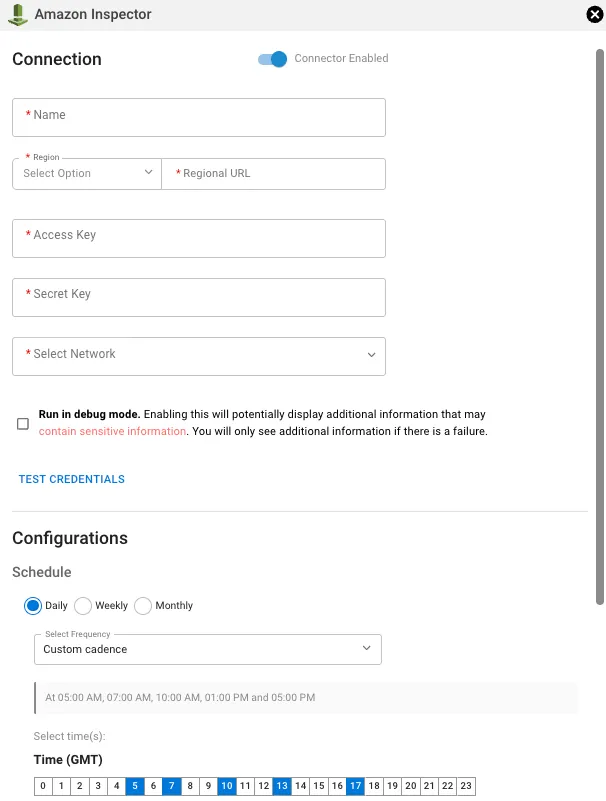

Complete the following fields. These fields include:

Name: Enter a name for the connector.

Region: Select an available AWS region. When you select a region, the corresponding regional URL is populated in the Region URL field.

Region URL: Displays the URL associated with the selected AWS region.

Access Key and Secret Key: AWS Amazon Inspector access key and secret key credentials for accessing the Amazon Inspector API endpoints.

Network: Network name in Ivanti Neurons for RBVM. Ingested data will be associated with this network.

Once the fields are complete, click Test Credentials to verify that the credentials are correct and enable the system to connect to the AWS instance.

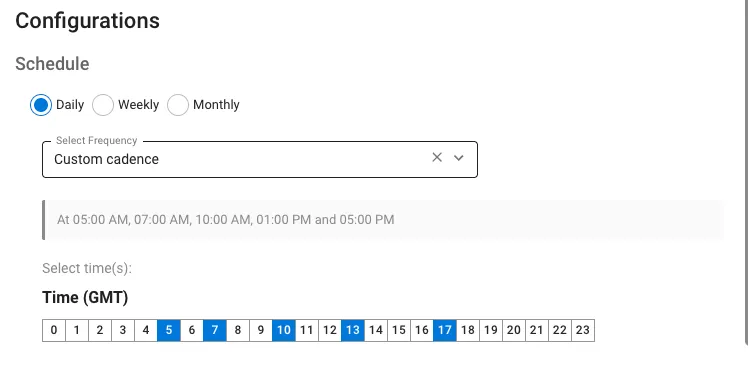

Configure the desired schedule for the connector to retrieve results from the Amazon Inspector instance. When you select a schedule frequency from the Select Frequency drop-down, a human-readable schedule summary is displayed, allowing you to validate the configured schedule. This feature is especially useful when using the Custom Cadence frequency.

Optional Configurations

After the credential test is completed, the optional configuration settings become available. You can choose to include all values or selected values for the Resource Type Filter and Severity Type Filter. Both filters support multiple selections and help limit the resources processed by the connector.

Findings marked as suppressed in AWS will not be imported into RBVM: Use this option to control whether findings marked as Suppressed in AWS Inspector are imported into RBVM. When selected, the connector ignores findings with a Suppressed status in Amazon Inspector. Only active, non-suppressed findings are retrieved and ingested into RBVM. This check box can be configured only during connector creation and remains read-only when the connector is edited.

If a finding was previously imported into RBVM and is later suppressed in AWS Inspector, subsequent connector runs will skip that finding. As a result, the existing finding record may remain in RBVM and become stale because updated status information is no longer retrieved from AWS Inspector.

Resource Type Filter: Use the Select Resource Type Filter option to control whether all resource types or selected resource types are included.

All resource types: Includes all available resource types.

Selected resource types: Displays the available resource types and allows you to select one or more resource types.

Severity Type Filter: Use the Select Severity Type Filter option to control which findings are imported based on their severity.

All severity types: Imports findings from all available severity levels.

Selected severity types: Displays the available severity levels and allows you to import findings only from the severity levels you select. Available severity levels include:

Critical

High

Medium

Informational

Account ID Filter: Use the Select Accountid Filter option to control which AWS accounts are processed by the Amazon Inspector connector. The Account ID Filter provides the following options:

All Account IDs: Collects data from all available AWS account IDs.

Select Account IDs: Collects data only from the selected account IDs.

Negate Account IDs: Excludes the selected account IDs and collects data from all remaining accounts.

The connector retrieves available account IDs from the configured AWS environment and displays them in a selectable list. You can select up to a configured maximum number of account IDs. By default, the limit is 20 account IDs, but this value can be configured through system settings. If the maximum selection limit is reached, additional account IDs are disabled until one or more selected account IDs are removed. The connector uses this “/members/list endpoint” endpoint to retrieve Account IDs. If Account ID data is not returned, contact Amazon Support to verify endpoint access for your account.

Once connector configuration is complete, click Save to create the connector.

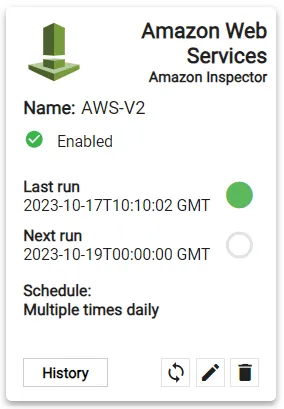

As soon as the connector is created, it will begin pulling data from the Amazon Inspector platform. When the connector is set up, a new entry for it appears at the top of the Integrations page. The connector card will also show the next scheduled time and date results will be fetched. Check the connector’s status by clicking the History button.

To run the connector on demand, click the Sync icon.

Editing a Connector Configuration

Connector configurations can be updated at any time after creation. Go to the Automate > Integrations page and select the specific connector you want to update.

Utilizing the Connector

The data from the Amazon Inspector API is ingested into Ivanti Neurons for RBVM as Hosts and Host Findings. The Scanner Name associated with these scans is AWS Inspector. Scanner Name can be used as a filter for Hosts and Host Findings.

Assets

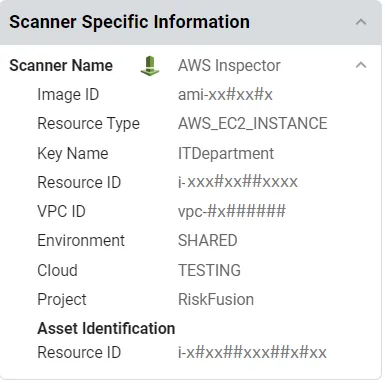

Asset data extracted from Amazon Inspector API is shown on the Hosts page. Project and version details are also extracted from the endpoint.

Findings

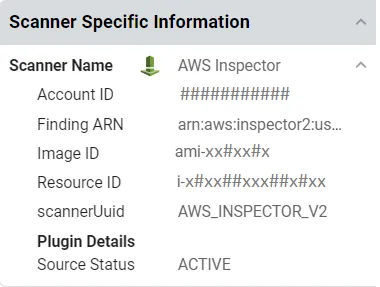

Scan data pulled from AWS via the connector can be viewed on the Network > Hosts and Network > Host Findings pages. The Host Findings page displays all identified vulnerability details, as shown below.

Severity Mapping

Score	Severity
0	Informational
0.1–3.9	Low
4.0–6.9	Medium
7.0–8.9	High
9.0–10.0	Critical

Connector Data Mapping

This table maps the high-level fields from Amazon Inspector to those within the Ivanti Neurons for RBVM platform.

Section	Ivanti Neurons Field	Amazon Inspector Field	Filterable
Hosts	AWS Image ID	findings → resources → details → awsEc2Instance → imageID	Yes
	IP Address	findings → resources → details → awsEc2Instance → ipv4addresses	Yes
	IP Addresses	findings → resources → details → awsEc2Instance → ipv4addresses	Yes
	Hostname	findings → resources → details → tags → Name	Yes
	AWS Resource Type	findings → resources → details → type	Yes
	AWS Key Name	findings → resources → details → awsEc2Instance → keyname	Yes
	AWS VPC ID	findings → resources → details → awsEc2Instance → vpcid	Yes
	AWS Project	findings → resources → details → tags → Project	Yes
	AWS Cloud	findings → resources → details → tags → Cloud	Yes
	AWS Environment	findings → resources → details → tags → Environment	Yes
	Possible solution	findings → remediation → recommendation → text	Yes
	Scanner name	AWS Inspector	Yes
	Plugin Details -> Source	findings → packageVulnerabilityDetails → source	Yes
	Plugin Details -> Source Status	Open	Yes
	CVE	findings → packageVulnerabilityDetails	Yes
	First Seen	findings-> firstObservedAt	Yes
	Last Seen	findings-> lastObservedAt	Yes
	Port	findings → networkReachabilityDetails → openPortRange → begin/end	Yes
	Protocol	findings → networkReachabilityDetails → protocol	Yes
	AWS Inspector Account ID	findings-> awsAccountId	Yes
	AWS Inspector Finding ARN	findings-> findingsARN	Yes
	AWS Image ID	findings → resources → details → awsInstanceProfileARN → imageId	Yes
	AWS Instance ID	findings → resources → id	Yes
	Plugin Details ->Instance ID	findings → resources → id	Yes
Host Findings	Title	findings → title	Yes
	Description	findings-> description	Yes
	Scanner plugin	findings-> findingsARN minus the first portion up to “findings/” leaving only the ending hash	Yes
	Severity	findings-> inspectorScore	Yes
	Scanner reported severity	findings-> severity	Yes
	Possible solution	findings → remediation → recommendation → text	Yes
	Scanner name	AWS Inspector	Yes
	Plugin Details -> Source	findings → packageVulnerabilityDetails → source	Yes
	Plugin Details -> Source Status	Open	Yes
	CVE	findings → packageVulnerabilityDetails	Yes
	First Seen	findings-> firstObservedAt	Yes
	Last Seen	findings → lastObservedAt	Yes
	Port	findings → networkReachabilityDetails → openPortRange → begin/end	Yes
	Protocol	findings → networkReachabilityDetails → protocol	Yes
	AWS Inspector Account ID	findings-> awsAccountId	Yes
	AWS Inspector Finding ARN	findings-> findingsARN	Yes
	AWS Image ID	findings → resources → details → awsInstanceProfileARN → imageId	Yes
	AWS Instance ID	findings → resources → id	Yes
