Other Features
Conditional Access on Android ISAC Client
Conditional access feature allows to use identity-driven signals as part of the access control decisions. Conditional Access brings signals together, to make decisions, and enforce organizational policies. This feature allows administrators to restrict access to approved client apps using Intune app protection policies.
For detailed information refer What is Conditional Access in Microsoft Entra ID?
Conditional Access feature is only applicable in case of SAML authentication. Before proceeding with configuring Conditional Access feature on Intune, ensure SAML server is configured on Ivanti connectSecure server. For configuration procedure, see User Verification and Key Concepts.
Ensure you follow the steps to enable Conditional Access feature.
- Configure a SAML cloud app on Azure IdP and Ivanti Connect Secure. See, Deploying a BYOD Policy for Microsoft Intune Managed Devices and Client application configuration.
- Create Device Feature policy configuration in Intune MDM under Devices > Manage devices > Configuration > Create > New policy.
- Configure device compliance policy, see Password compliance policy for Android Enterprise devices.
- Connect your Intune account to your Managed Google Play account, see Intune account.
- Enroll the android devices, see Android device enrollment guide for Microsoft Intune.
- Configure conditional access policy, See Plan a Microsoft Entra Conditional Access deployment. 1. Create Conditional access policy on Azure IdP: 2. Select the user to apply the policy. 3. Select the target resource as the ISAC client name.
- Choose conditions. Select Device platform as Android for Android devices.
- Select Client apps as Browser, mobile devices use browser for login.
- Block or grant access to the resources based on the above conditions and device compliance state.
Ensure “Required Device to be marked as Compliant” is checked.
Identity based restriction is configured from MDM, Conditional access policy gets applied based on the compliance state fetched from Azure IdP.
When establishing a connection with conditional access from ISAC, a prompt to accept the certificate appears and user input is required to proceed with connection
Device Validation Support for VoD and Per-App VPN
Apps can be configured to automatically connect to VPN when they are launched. Using this feature, only the corporate-managed apps will transfer the data over the VPN. Personal data of employees such as personal web browsing, and connections to gaming and social networks will not use the VPN.
When the VPN On Demand profile is applied to the device, VPN will be started automatically in the following two conditions:
- When the applications are launched.
- When the application sends traffic in the background.
In VPN On Demand, a blocking interface is set up on the device which monitors the configured apps for the network traffic. Whenever an application whose network access type is "require VPN" tries to perform any network activity, the blocking interface detects this. It thereafter authenticates the user, tears down the blocking interface, and establishes the VPN connection.
Enterprise Mobility Management (EMM) Configuration
The configuration needed to be enabled on EMMs. Following Parameters should be configured by the EMM Vendor to set up a VPN On-Demand profile.
- For VPN on Demand, Stealth Mode must set as True.
- Configure mandatory parameters like Connection Name, URL, Authentication type, Certificate Alias (in case of cert auth), username, password (in case of userpass).
Configuration Keys | Value Type | Configuration values | Description |
|---|---|---|---|
Stealth Mode | String |
| Stealth Mode Authentication |
VPN Trigger Type | Choice | 0 or 1 or 2 | VPN Trigger Type: Manual = 0, OnDemand = 1, Always on VPN = 2 |
AppVPN Packages | String | com.android.chrome,com.microsoft.skydrive | Application VPN packages (value should be comma separated) |
AppVPN Action | Choice | 0 or 1 | Application VPN action: allow = 0, deny = 1 |
Route Type | String | 0 or 1 | Route Type: device VPN = 0 or Per-App VPN = 1 |
Role | String |
| VPN Role |
Realm | String |
| VPN Realm |
VPN-Standard | Boolean | | Set this profile as default. Existing default profile will be override |
Certificate Alias | String | | Certificate alias in the Android KeyStore |
Password2 | String | | VPN Password 2 |
Username2 | String | | VPN username 2 |
Password | String | | VPN Password |
Username | String | | VPN username |
Authentication Type | choice | Certalias or userpass or dualauth | VPN Authentication Type: certalias: Certificate Authentication, userpass: Username/Password based Authentication, dualauth: combination of userpass/certauth |
URL | String | | VPN Connection URL |
Connection Name | String | | VPN Connection name |
VPN On Demand Limitations
- No Support for FQDN based Split Tunneling
Device ID Validation
This feature allows an app registration in MDM application configuration and pass to Ivanti Connect Secure. On validation, Connect Secure initiates authentication. The required configuration values are:
- Tenant ID
- Client ID
- Client Secret
Derived Credential Support
This feature provides certificate-based authentication support for classic L3 VPN profiles where certificates are installed and managed by another application. These applications install digital certificates in device keystore for Android and replace the need of physical smartcards for authentication.
Ivanti Secure Access Client 22.5R1 onwards supports Ivanti EPMM and Ivanti Neurons for MDM and Entrust application as certificate provider.
Supported Platforms
- Ivanti Secure Access Client 22.5.1 onwards
- PIV-D manager application
- Ivanti Mobile@Work / Ivanti Go for core and cloud respectively
Configuration of Derived Credentials
The configuration includes initial setting up by admin and then end user enrollment.

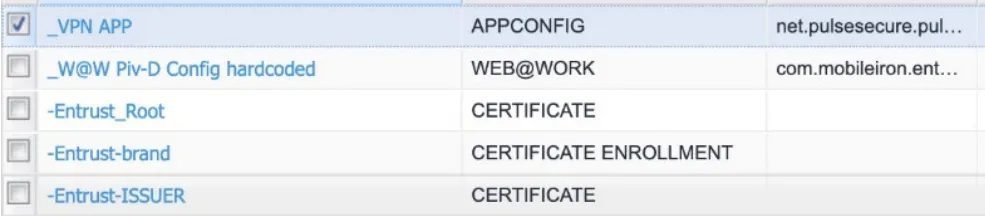

- Admin configures the CA root certificates, and the User certificates provided by the vendor in the MDM.
- Admin adds appconfig policy to config ISAC client details in the MDM.
- Admin installs corresponding CA root certificates on ICS for cert chain validation.
- End user enrolls to MDM to fetch the appconfig policy.

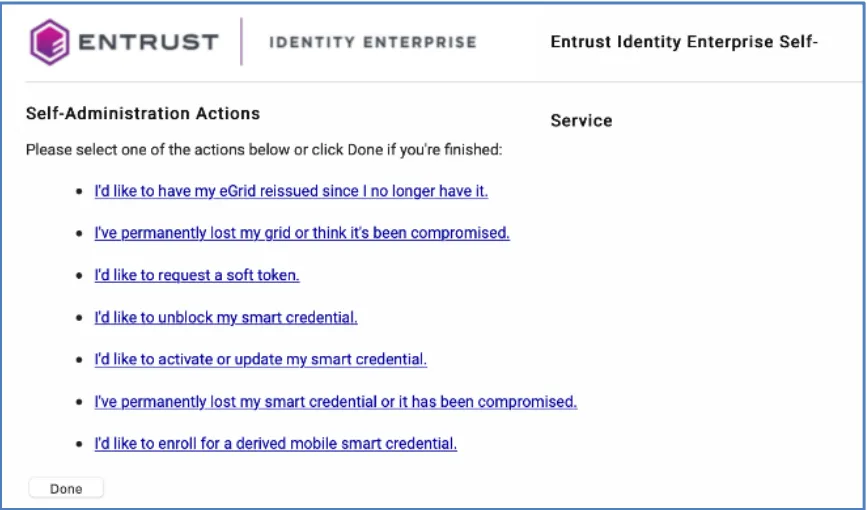

- End users browse the Entrust portal and select I’d like to enroll for a derived mobile smart credential.

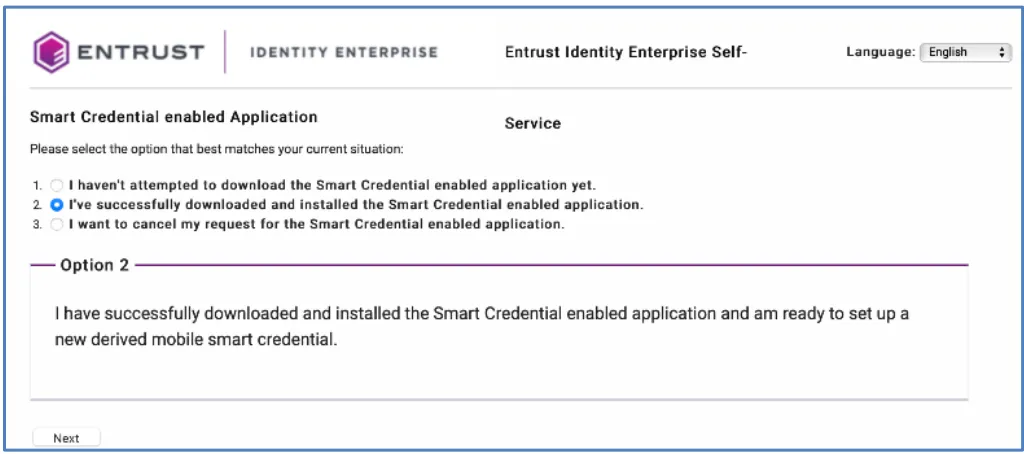

- In the next screen, select the option I’ve successfully downloaded and installed the Smart Credential enabled application. Then click Next.

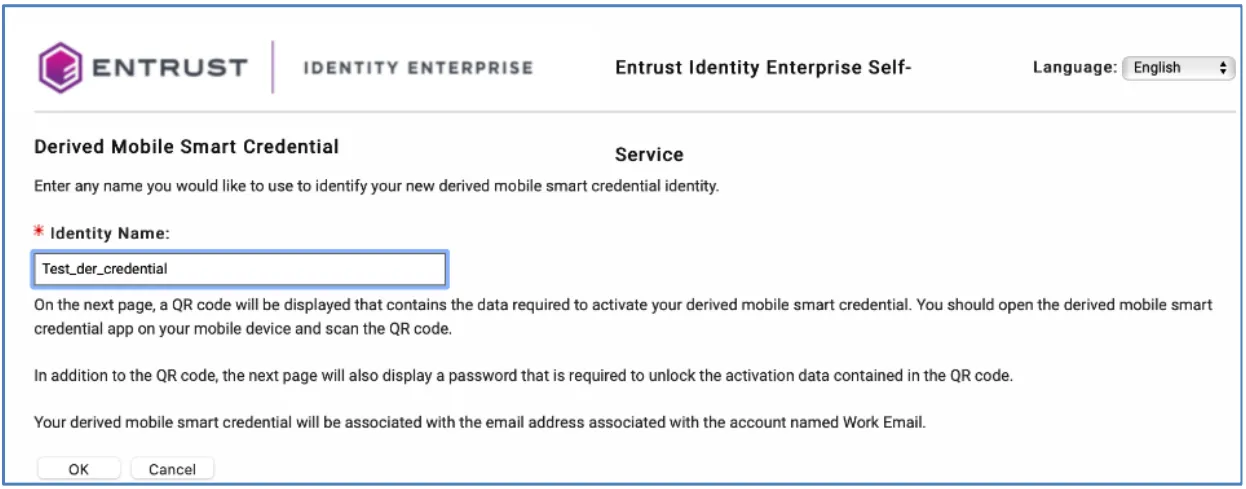

- Enter the name for the derived credential and click OK.
- A QR code displays, use the PIV-D Manager application to scan and enter the password to install the certificates.
The certificates are installed in the MDM and ISAC fetches the user certificate from MDM client application.
VPN Configuration
Mobile devices use a VPN connection profile to initiate a connection with the VPN server. Use VPN profiles in Microsoft Intune to deploy VPN settings to mobile devices in your organization, so they can easily and securely connect to the network. For more information, see Use VPN settings for Android Enterprise in Microsoft Intune.
Before proceeding, make sure you have IP address or FQDN name of Ivanti Connect Secure (ICS) server that mobile devices will connect to.
To create a VPN profile:
- In the Intune admin console, navigate to Home > Devices > Android > Configuration.
- Under Policies, click Create and select New Policy.
- In the Create a profile window, select Platform as Android Enterprise and choose VPN as Profile type and click Create.
- In the Basics details, enter a name and description for the policy.
- In the Configuration settings, from the Connection type drop-down list, select Custom VPN. ISAC is named as Pulse Secure VPN. You can use Pulse Secure as VPN. Ensure to re-push the profiles in case the profiles are not recognised by the VPN application.
- Under Base VPN details, enter the ICS server name for Connection Name.
- For VPN IP address name, enter the ICS sign-in URL or the server IP address.
- From the Authentication method, drop down list. You can select to use credential based or certificate-based authentication. If you select Certificates, click Select and choose client certificate for authentication. Enter the SCEP Certificate profile name created before; for details, see Creating Certificate Profile.
This procedure creates a Manual VPN connection. User needs to manually establish the connection from ISAC.
Collecting Log Files from Ivanti Secure Access Client for Android
Logs may sometimes be requested by the Ivanti support team to diagnose issues with the Ivanti Secure Access Client on Android.
- On the Android device, start the Ivanti Secure Access Client app.
- From the bottom menu, click on the lifesaver.

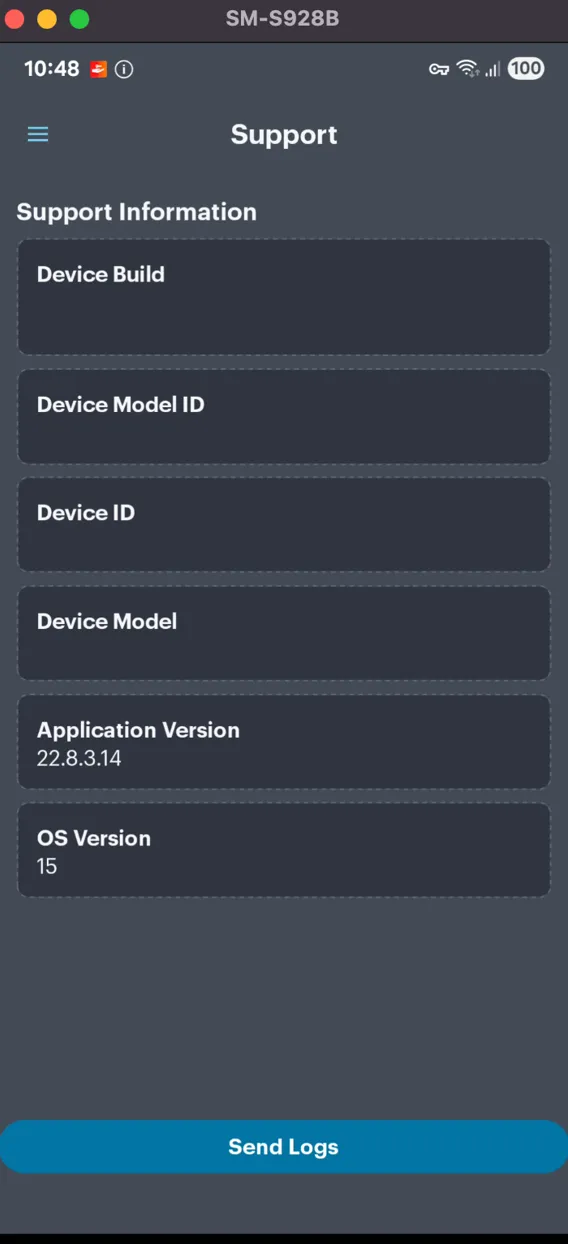

- At the bottom of the screen, click Send Logs.

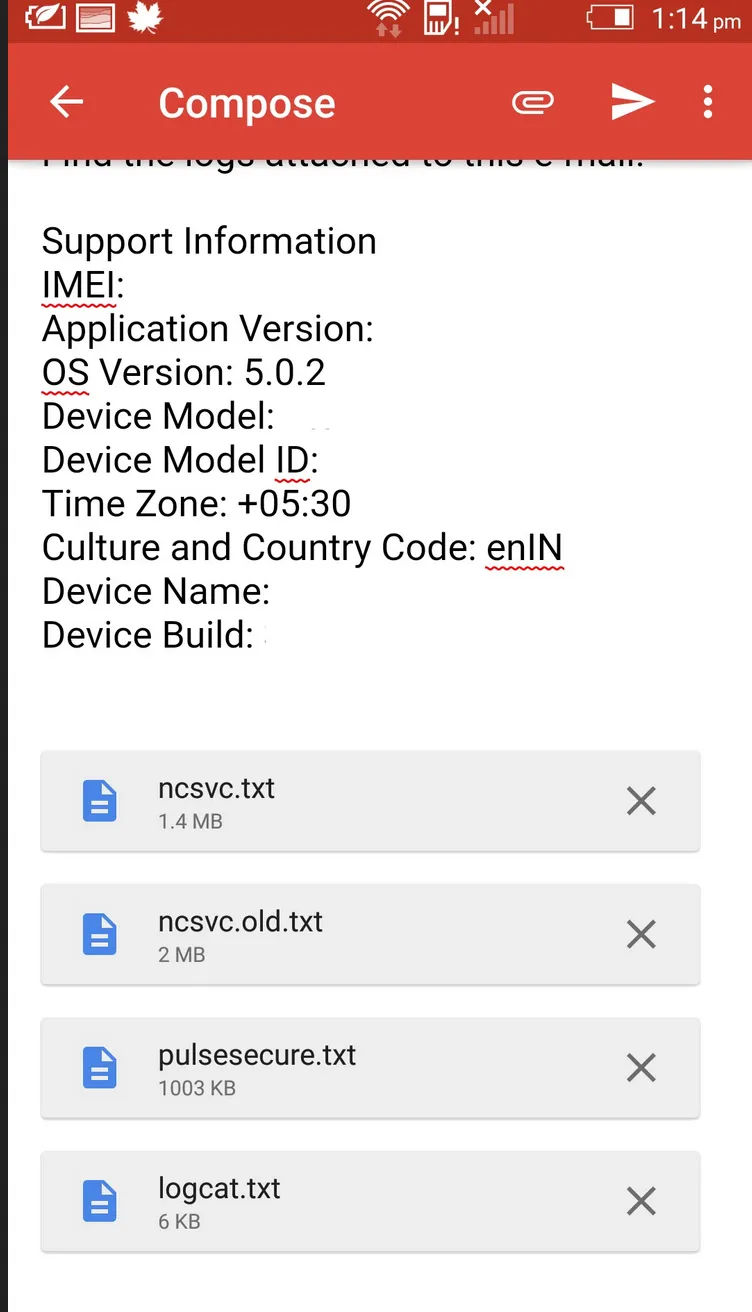

- Using the default mail client, the logs will be attached. Enter the email address where to send the logs to.
If mail is not configured on the Android device, the logs cannot be gathered.
Dark Theme Support
Ivanti Secure Access Client supports Dark mode or bright mode as per mobile settings.
Voice Over Support
Ivanti Secure Access Client supports voice over instructions as per mobile settings.

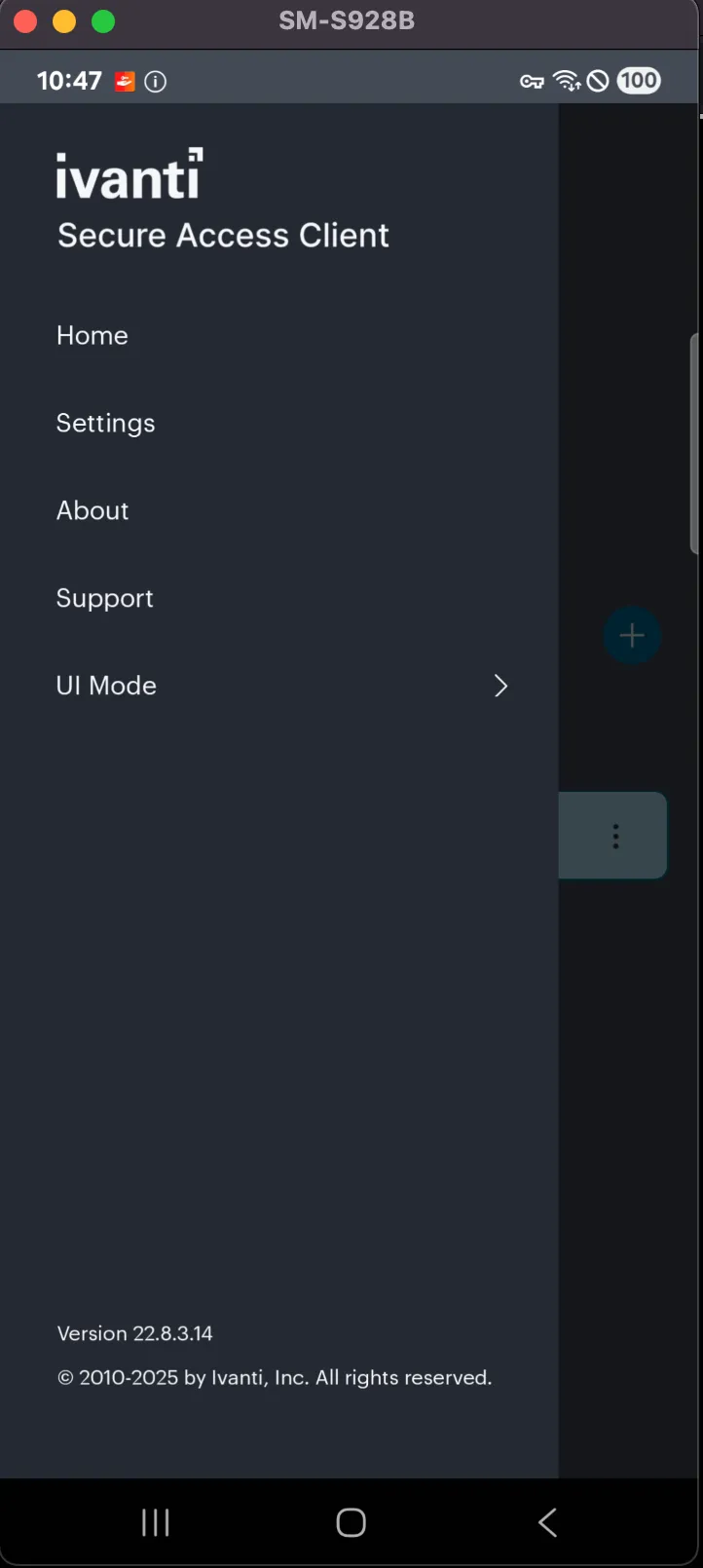

UI Mode Switching
Ivanti Secure Access Client supports switching between classic UI and New-UX. Use Menu and UI mode to switch between the modes.
Biometric Authentication Support
To provide a seamless and frictionless login experience, ISAC mobile client allows mobile users to save credentials (username or password) and provide fingerprint / face recognition for authentication.

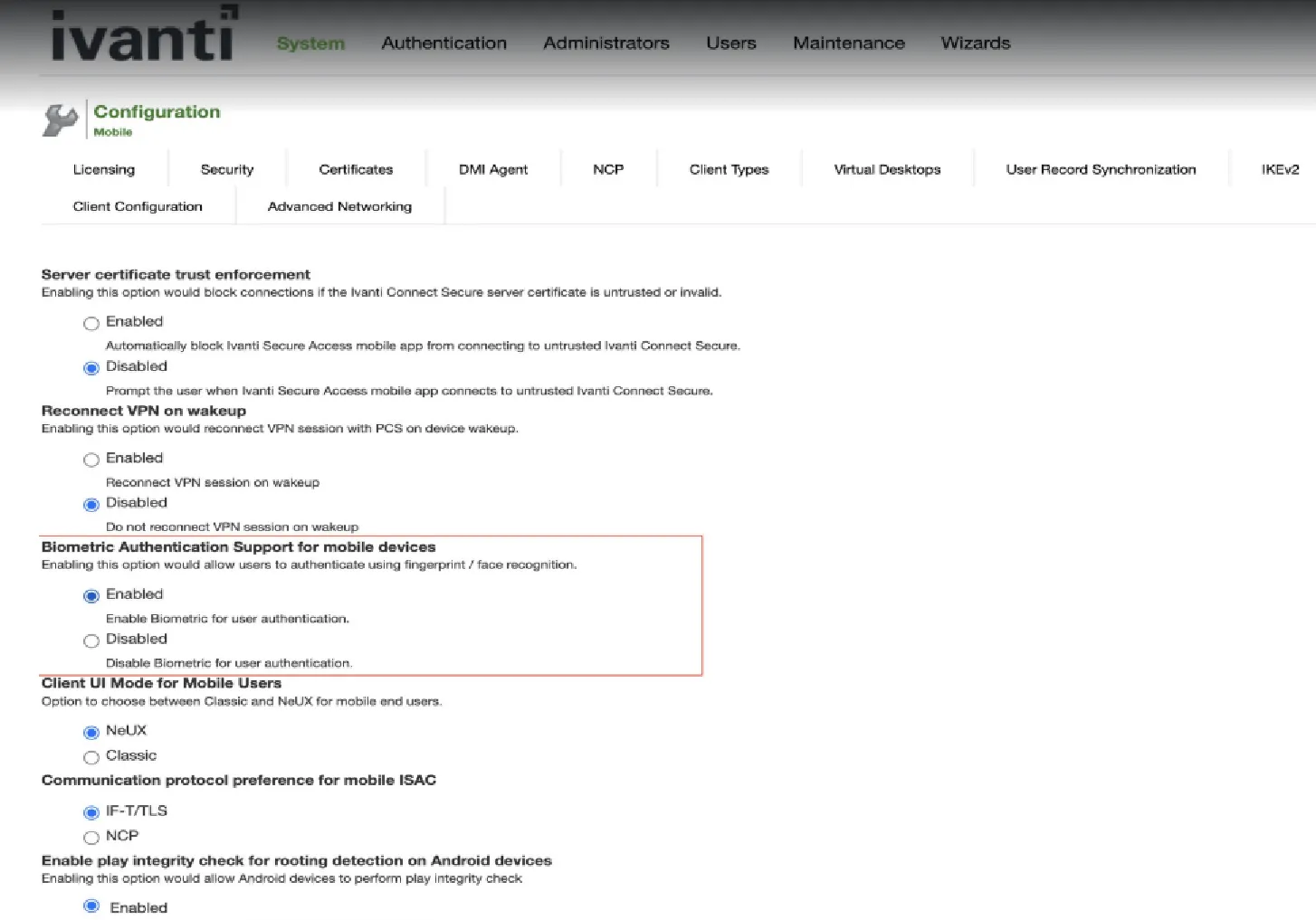

To enable at a global level, System > Configuration > Mobile.

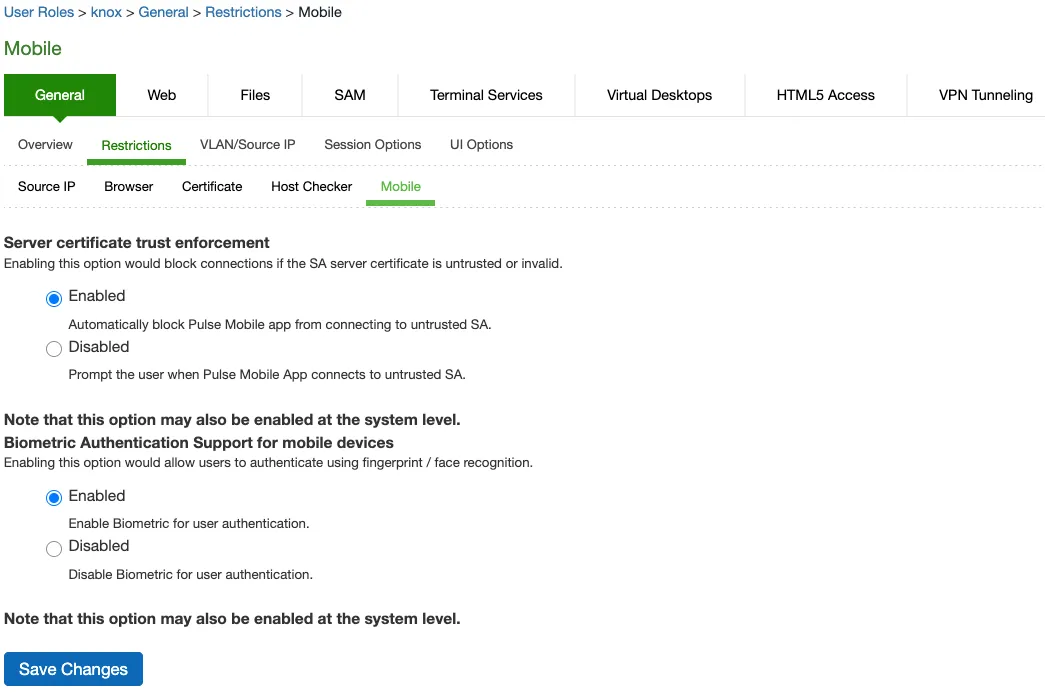

To enable at a user role level, select the role defined > General > Restrictions > Mobile.
Biometric authentication is supported for username and password based authentication for both primary and secondary . When secondary authentication is user name and password based then primary authentication must be certificate.
Biometric Authentication leverages Class 3 (BiometricStrong) hardware. For more information see, Biometric Classes.
Role level setting is priority. When enabled at global level, any new role created inherits the configurations.
Samsung KNOX MDM Support for ICS
Use the integrated Samsung Knox MDM as Authentication Server in ICS to support Device Validation for Android. For more information, see KNOX support.
FIDO2 Passwordless authentication
Enables passwordless authentication using hardware security keys or passkeys and two-factor authentication for SAML based login in Ivanti Secure Access Client. Existing SAML users can enable passworless authentication in MS Azure or OKTA. The following SAML authentications are supported:
- SAML Authentication
- SAML as primary and the System Local (password) as secondary
- Certificate as primary and SAML as secondary

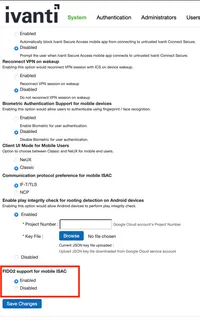

Ensure the feature is enabled in Ivanti Connect Secure. Navigate System > Configuration > Mobile:
- In MS Azure, navigate to Manage Security > Authentication methods > create passkey or security key.. For more information, see MS Entra.
- In OKTA, to set FIDO 2 see FIDO2 WebAuthn.
In-App feedback
This feature provides a mechanism for users to provide a detailed In-app feedback for the ISAC mobile client. This helps to collate user-experience and improve user experience.
Multi-Factor Authentication (MFA) support
This feature supports Multi-Factor Authentication for VOD and Per-App VPN on mobile. The VPN connection requires a primary certificate authentication. If additional authentication is required, the user is guided through the MFA process to seamlessly resume the VPN connectivity.
Once the L3/L4/L7 access feature status is changed from disable to enable. On Android, reboot the device to connect successfully to VOD/Always On in Android. On iOS manually connect VOD/Always On profile to reset.
-
Added Support for Freja eID authenticator
This feature ensures there is no login failure during SAML authentication. This occurs when there is an app to app authentication.
